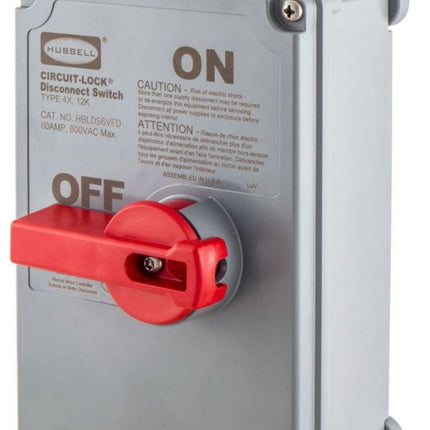

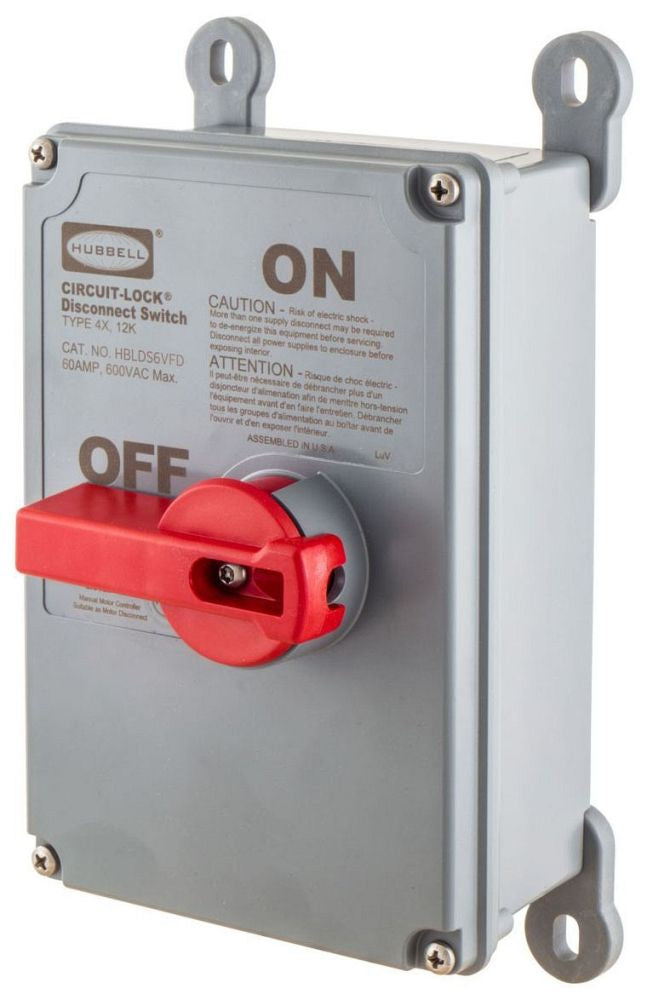

Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, 60A 600V AC, Screw Terminals, Gray, NEMA 4X Enclosure
SKU: #146373
Part: #HBLDS6
UPC: 783585430706
Switches and Lighting Controls, Industrial Grade, Disconnect Switches, Unfused Switch, 60A 600V AC, Screw Terminals, Gray, NEMA 4X Enclosure
SKU: #146373
Part: #HBLDS6
UPC: 783585430706
Description
Switches and Lighting Controls, Industrial Grade Disconnect Switch 60A 600V AC
This industrial-grade unfused disconnect switch is designed for safe and reliable control of electrical power in industrial environments. It features a Type 4X, IP69k-rated enclosure ensuring watertight, dust-tight, and corrosion-resistant protection suitable for harsh conditions. Ideal for electrical distributors, lighting solutions, wire and cable, and switchgear suppliers, this switch supports motor control and disconnect applications requiring a 60-ampere current rating at 600V AC.
Specifications
- Current: 60 amperes
- Amperage Rating: 60 A
- Voltage Rating: 600V AC
- Number of Poles: Three Pole
- Contact Rating: 60A
- Horsepower Rating: 50 horse power
- Frequency Rating: 60Hz
- Operating Cycles: 6,000 Cycles
- Connection Type: Terminal Screws
- Action: Snap
- Material: Composite
- Mounting: Mounting Feet
- Enclosure Type: Type 4X, IP69k
- Width: 8.8 in
- Product Weight: 3.3630 lbs
- Contact Configuration: Two Position
- Environmental Conditions: NEMA 4X
- Country of Origin: Poland
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part Number: HBLDS6
Features
- Unfused disconnect switch suitable as a manual motor controller and disconnect
- High visibility red handle is lockable to meet OSHA lockout/tagout requirements
- Constructed with a Type 4X composite enclosure providing watertight, dust-tight, and corrosion-resistant protection
- Designed for industrial applications with a snap action mechanism and screw terminal connections
- Certified for hygiene in food processing applications
- Suitable for use in harsh environments requiring NEMA 4X and IP69k ratings
- Supports 50 horsepower motor load at rated voltage
- Complies with NEC® line of sight disconnect requirements
Downloads & Links
- Sales Drawing Asset Reference
- Catalog Full Asset Reference
- Safety Product Guide
- HBLDS6 AutoCAD Drawing
- Installation Manuals Asset Reference
- Industrial Solutions
- Circuit-Lock® Motor Disconnects
- Spec Sheet
- Catalog Page Asset Reference 1
- Warranty Document Asset Reference
- Catalog Page Asset Reference 2
- Catalog Page Asset Reference 3
