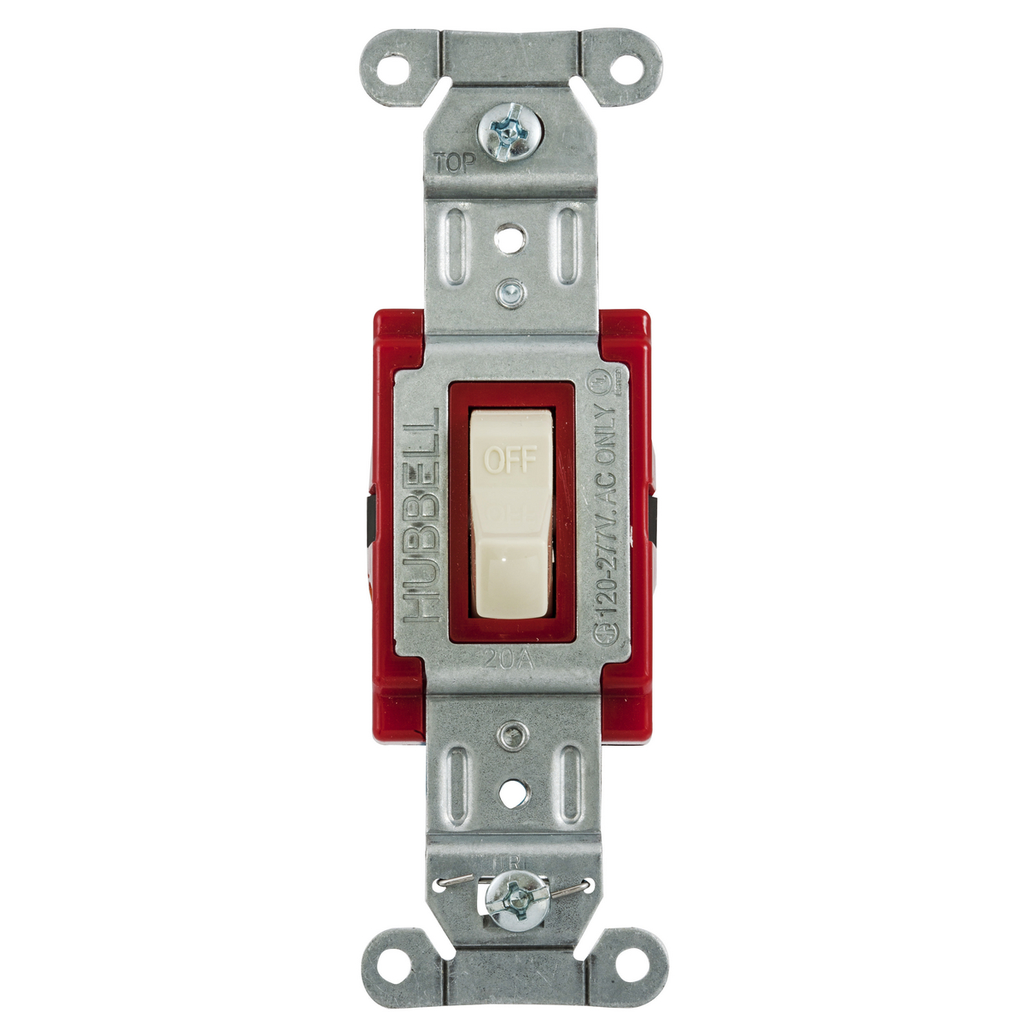

Switches and Lighting Controls SNAPConnect Heavy Duty Toggle Switches

This industrial/commercial grade single pole toggle switch is designed for heavy-duty electrical applications, suitable for use in lighting solutions and electrical distribution systems. It supports 20 amperes at 120/277V AC and features a connectorized SNAPConnect system, making it compatible with professional switchgear suppliers and wire and cable setups. The ivory toggle is made of durable thermoplastic, optimized for indoor dry environments unless additional protection is applied.

Specifications

• Application: SNAPConnect Heavy Duty
• Amperage Rating: 20 A
• Current: 20 amperes
• Voltage: 120-277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Material: Thermoplastic
• Color: Ivory
• Mounting: Screw Mount
• Connection: Connectorized
• Operating Cycles: 50,000 Cycles
• Contact Rating: Per UL 20
• Environmental Conditions: Indoor Dry unless protected by additional means
• Width: 1.9 in
• Product Weight: 1.45 lbs
• Made in USA: Yes
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: SNAP1221INA

Features

• Steel, zinc plated bridge provides corrosion resistance
• Thread cleaning captive mounting screw for secure installation
• Automatic self-grounding staple assures continuity to wall box
• Connectorized SNAPConnect terminal accommodations for reliable wiring
• Thermoplastic toggle and housing for durability and safety
• UL Listed and CSA Certified for compliance with electrical standards
• Fed. Spec. W-S-896 compliant

Downloads & Links

• Warranty Document Asset Reference
• Spec Sheet
• Sales Drawing Asset Reference
• SNAP1221INA AutoCAD Drawing
• SNAPConnect¬Æ Devices
• Healthcare Application Guide
• Installation Manuals Asset Reference
• Catalog Full Asset Reference
• Catalog Page Asset Reference
