Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Three Way Connector, Solid Wire, 15/20A North American

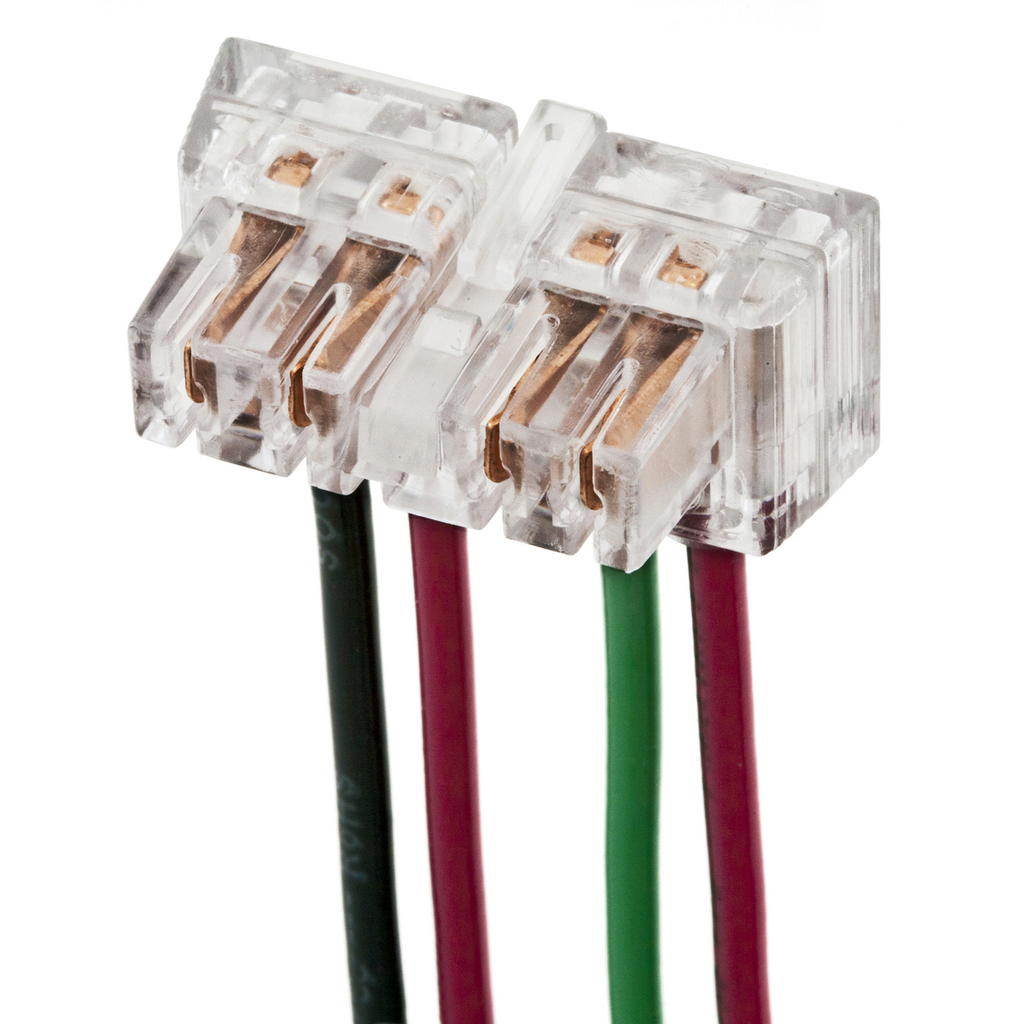

This SNAPConnect Heavy Duty Switch Connector is designed for industrial and commercial electrical applications, providing reliable connection for three-way switches. It is suitable for use with solid wire in lighting solutions and electrical distribution systems. The connector features a positive snap action and screw mounting, making it compatible with various switchgear supplier requirements. It is rated for 15/20A amperage and designed to operate up to 50,000 cycles, ensuring durability in indoor dry environments unless additional protection is applied.

Specifications

• Application: SNAPConnect Heavy Duty Switch Connector
• Amperage Rating: 15/20A A
• Number of Poles: Three Way
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Contact Configuration: Two Position
• Connection: Connectorized
• Mounting: Screw Mount
• Color: Clear
• Width: 1.360 in
• Product Weight: 1.6000 lbs
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: Mexico
• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: SNAP3W1NA

Features

• Positive snap action for secure connection
• Designed for solid wire applications
• Industrial and commercial grade quality
• Connectorized connection type for ease of installation
• Durable design rated for 50,000 operating cycles
• Clear color for visual inspection
• Screw mount for reliable mechanical fastening
