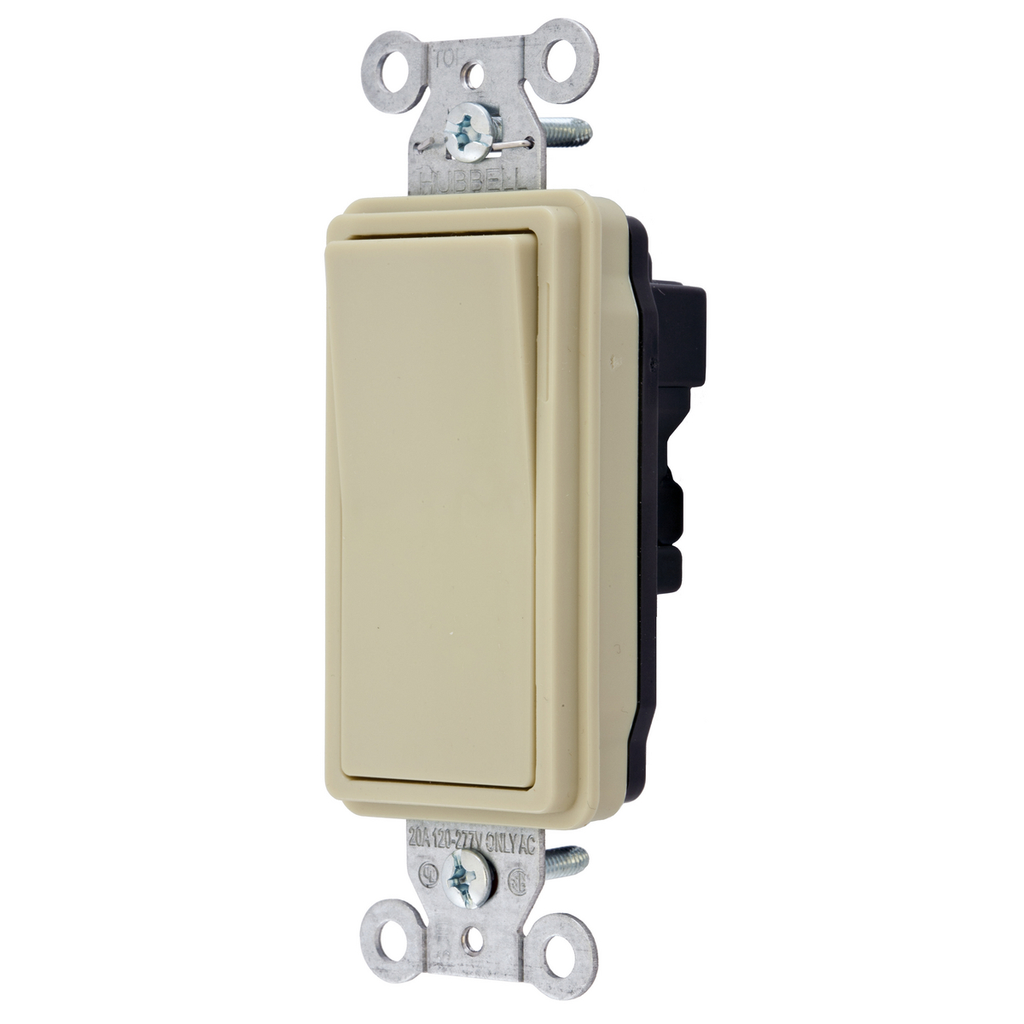

Switches and Lighting Controls, Industrial/Commercial Grade, SNAPConnect Series, Decorator Switches, Single Pole, 20A 120/277V AC, Ivory, North American

This SNAPConnect Heavy Duty decorator switch is designed for industrial and commercial electrical applications, providing reliable control for lighting and other electrical loads. Ideal for electrical distributors and switchgear suppliers, the switch features a single pole configuration rated for 20 amperes and 120/277 volts AC. The device is constructed with thermoplastic material and utilizes a rocker actuator with positive snap action for precise operation. It is suitable for indoor dry environments unless additional protection is applied.

Specifications

• Application: SNAPConnect Heavy Duty
• Current Rating: 20 amperes
• Amperage: 20 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Rating: Per UL 20
• Contact Configuration: 2 Position
• Material: Thermoplastic
• Color: Ivory
• Mounting: Screw Mount
• Connection: Connectorized
• Operating Cycles: 50,000 Cycles
• Width: 1.9 in
• Product Weight: 1.8 lbs
• Made in USA: Yes
• Country of Origin: United States
• Environmental Conditions: Indoor Dry unless protected by additional means

Features

• Rocker actuator with positive snap action for reliable switching
• Connectorized SNAPConnect terminals for quick and secure wiring
• Thermoplastic construction for durability and electrical insulation
• Self-grounding mounting system for safety and ease of installation
• Designed for heavy-duty industrial and commercial use
• UL and CSA listed for safety compliance
