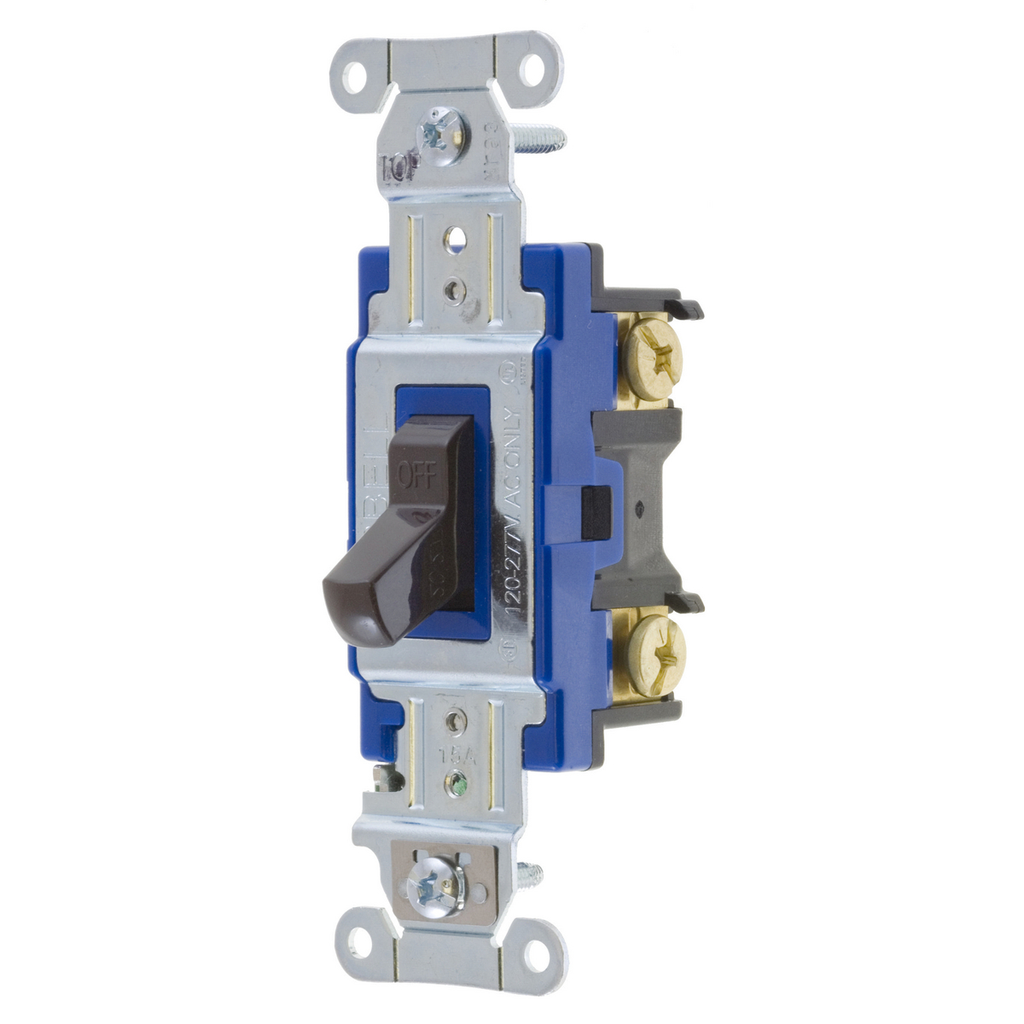

Switches and Lighting Controls, Hubbell PRO Series Toggle Switches, General Purpose AC, Three Way, 15A 120/277V AC

This Hubbell PRO Series toggle switch is designed for general purpose AC applications in lighting solutions and electrical distribution systems. It supports three-way switching configurations and is suitable for use by electrical distributors and switchgear suppliers requiring reliable wire and cable connections. The switch features back and side wiring for flexible installation and is intended for indoor dry environments unless otherwise protected.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 1203B
• Current Rating: 15 amperes
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position (SPDT)
• Connection: Back and Side Wired
• Mounting: Screw Mount
• Operating Cycles: 50,000 Cycles
• Product Weight: 0.2000 lbs
• Width: 1.9 in
• Color: Brown
• Contact Rating: Per UL 20
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China

Features

• Steel, zinc plated bridge provides corrosion resistance
• Color coded by amperage for easy inspection
• Strip gauge facilitates accurate wiring
• Thermoplastic materials for toggle and base enhance durability
• Silver alloy contacts for reliable conductivity
• Brass terminal screws and ground screw for secure connections
• Auto grounding mounting bridge included
• UL Listed and CSA Certified for safety compliance
• Meets Fed. Spec. W-S-896
