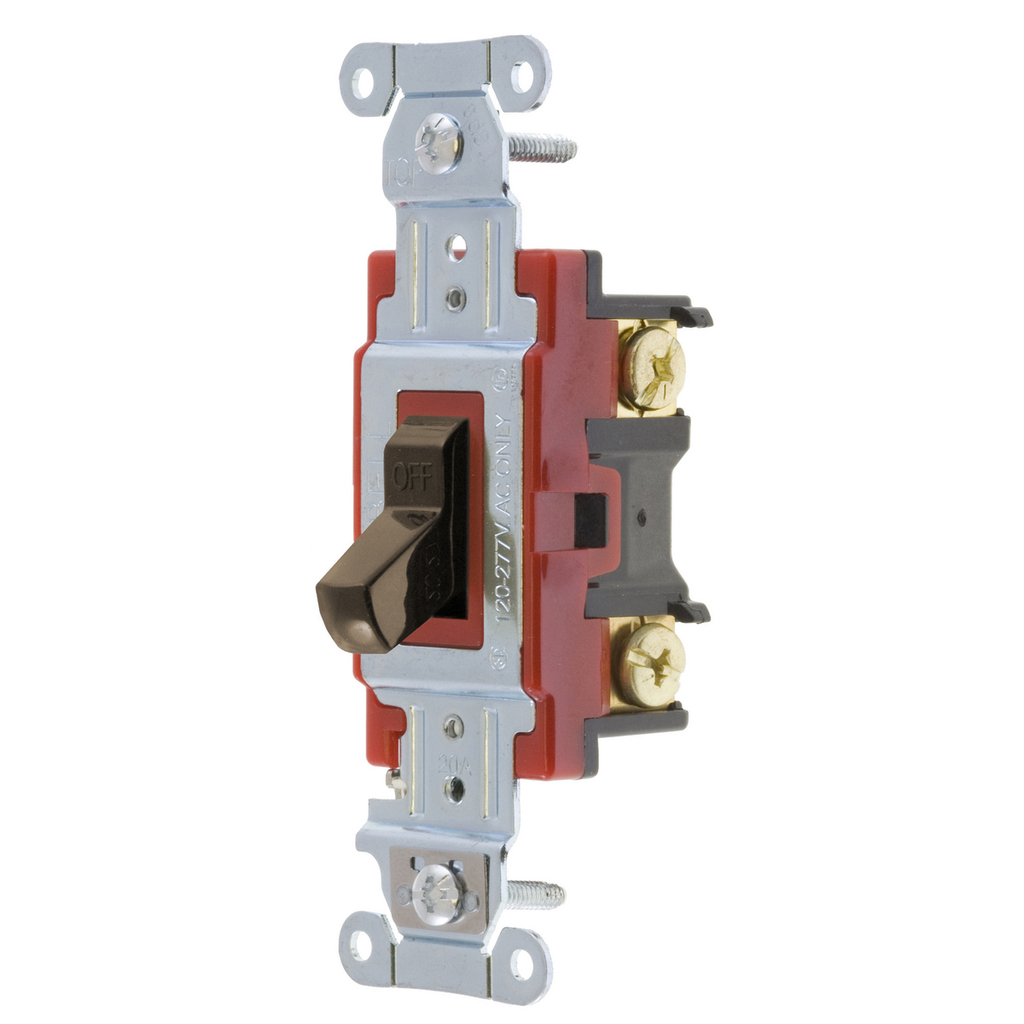

Switches and Lighting Controls, Hubbell PRO Series Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC

This Hubbell PRO Series toggle switch is designed for general purpose AC applications, suitable for electrical distributors and lighting solutions requiring reliable control. It supports single pole switching with a 20 ampere rating at 120/277 volts AC and features back and side wired connections for versatile installation. Ideal for indoor dry environments unless additional protection is applied, this switch is used in wire and cable setups and by switchgear suppliers for robust electrical control.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: 1221B
• Application: Back and Side Wired
• Current: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Mounting: Screw Mount
• Color: Brown
• Width: 1.900 in
• Product Weight: 0.1500 lb
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China

Features

• Positive Snap Action for reliable switching
• Back and side wired connection options for flexible installation
• Designed for general purpose AC switching up to 20A
• Screw mount for secure attachment
• Durable construction suitable for indoor dry environments

Downloads & Links

• B AutoCAD Drawing
• Catalog Page Asset Reference
• Warranty Document Asset Reference
• Spec Sheet
• Sales Drawing Asset Reference
• Catalog Full Asset Reference
• Installation Manuals Asset Reference
