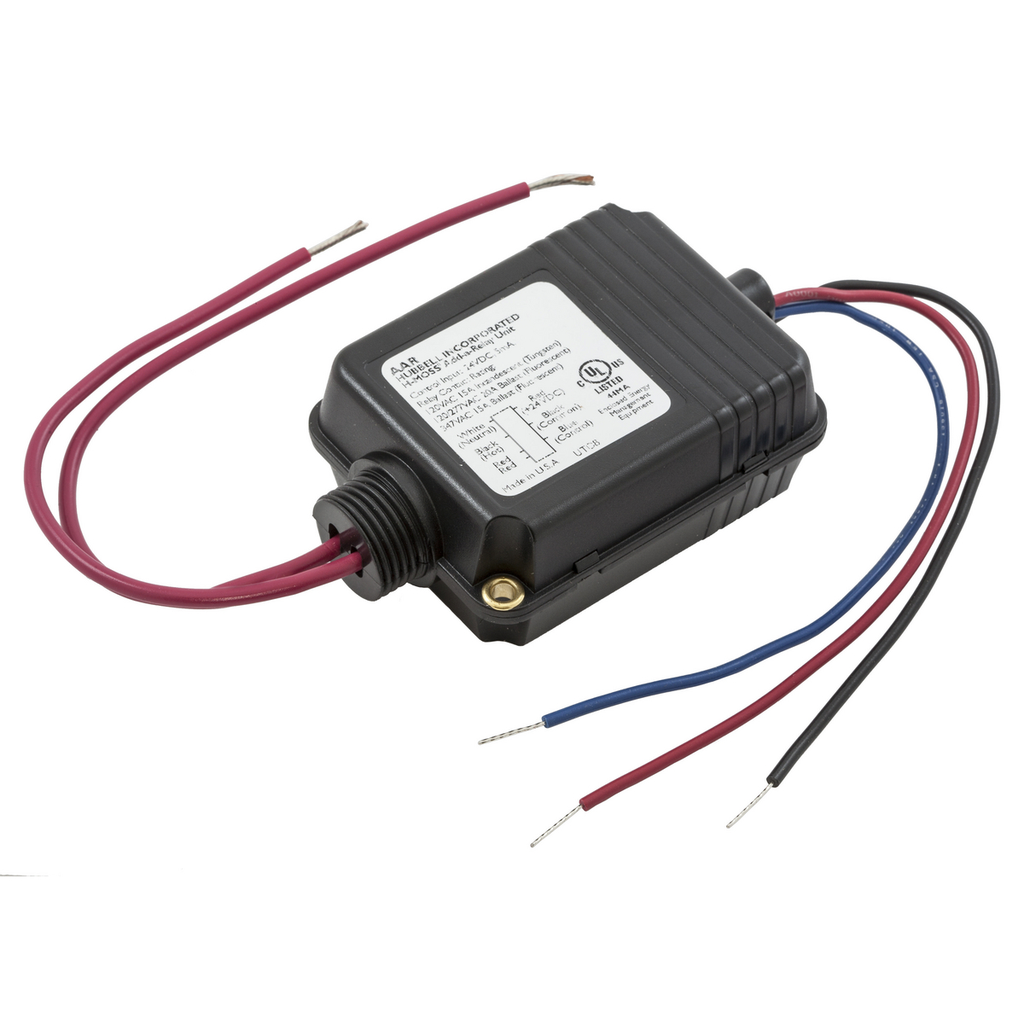

Switches and Lighting Controls, H-Moss System, Additional Switching Capacity, Add-A-Relay, 120/277V AC

This Add-A-Relay device from Hubbell Wiring Device-Kellems is designed to provide additional switching capacity for lighting control applications. It is suitable for electrical distributors, lighting solutions providers, and switchgear suppliers requiring an internal relay for controlling external lighting loads. The product is compatible with CU series control units and Hubbell ATD, ATU, and ATP series ceiling and wall mount sensors, making it ideal for wire and cable integration in lighting control systems.

Specifications

• Application: For Extra Load Capacity
• Load Capacity: Incandescent 0 to 1800 Watts, 120V Ballast 0 to 2400 Watts, 230V Ballast 0 to 3680 Watts, 277V Ballast 0 to 5540 Watts, 347V Ballast 0 to 5205 Watts
• Control Output: Relay Contacts
• Power Input: 24V DC nominal, 33mA from Hubbell CU series control unit
• Operating Cycles: 6,000 Cycles Minimum
• Material: Thermoplastic (Flame retardant UL 94-5V)
• Color: Black
• Dimensions: 3.69" L x 2.33" W x 1.36" H
• Mounting: Screw Mount
• Connector: Wire Leads
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Operating Temperature: 32°F to 104°F (0°C to 40°C); 0% to 90% non-condensing relative humidity
• Storage Temperature: -20°F to 150°F (-29°C to 65°C); 0% to 90% non-condensing relative humidity
• Country of Origin: China

Features

• Internal relay for control of an external lighting load
• Zero Arc Point Switching minimizes relay contact wear
• Easily mounts inside or outside a junction box or inside a fluorescent fixture ballast cavity
• UL 2043 Plenum Rated per NEC 2014 300.22(C)(3)
• cULus listed to UL 916
• ASHRAE 90.1 compliant
