Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 30A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #143137
Part: #HBL3033
UPC: 783585434629
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 30A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #143137
Part: #HBL3033
UPC: 783585434629
Description

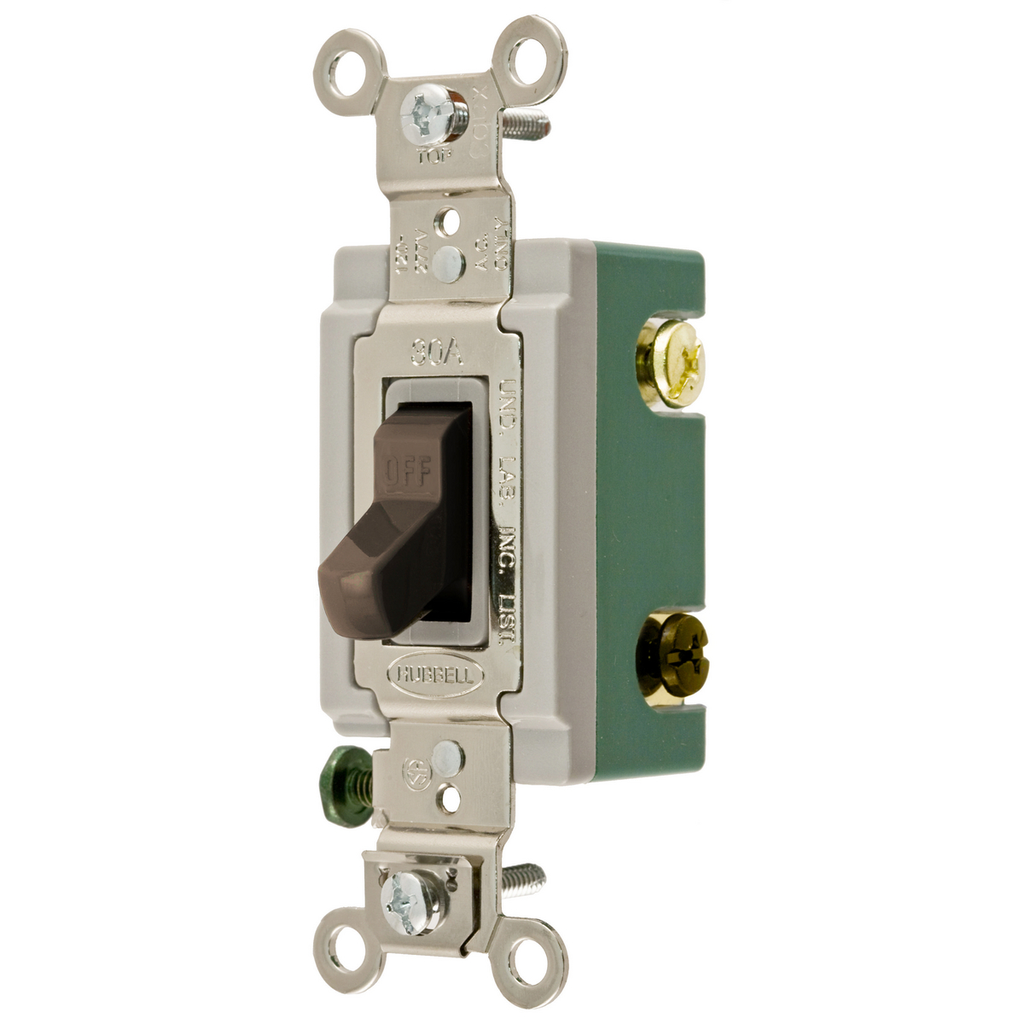

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade Toggle Switches, Three Way, 30A 120/277V AC
This toggle switch is designed for industrial and commercial electrical applications, suitable for use by electrical distributors and lighting solutions providers. It is a general-purpose, extra heavy-duty switch rated for 30 amperes at 120/277 volts AC, supporting three-way switching configurations. The switch features back and side wired connections, making it compatible with various wiring setups in wire and cable installations. It is ideal for indoor dry environments unless additional protection is provided.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL3033
- Current Rating: 30 amperes
- Amperage Rating: 30 A
- Voltage Rating: 120/277V AC
- Number of Poles: Single Pole
- Contact Configuration: Two Position
- Action: SPDT (Single Pole Double Throw)
- Connection Type: Back and Side Wired
- Mounting: Screw Mount
- Operating Cycles: 50,000 Cycles
- Contact Rating: Per UL 20
- Color: Brown
- Width: 1.9 in
- Product Weight: 0.2 lb
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
Features
- Extra heavy-duty industrial grade construction for durability and reliability
- Back and side wired terminals for flexible installation
- Toggle actuator in brown color for easy identification
- Designed for three-way switching applications
- Complies with UL standards for safety and performance
