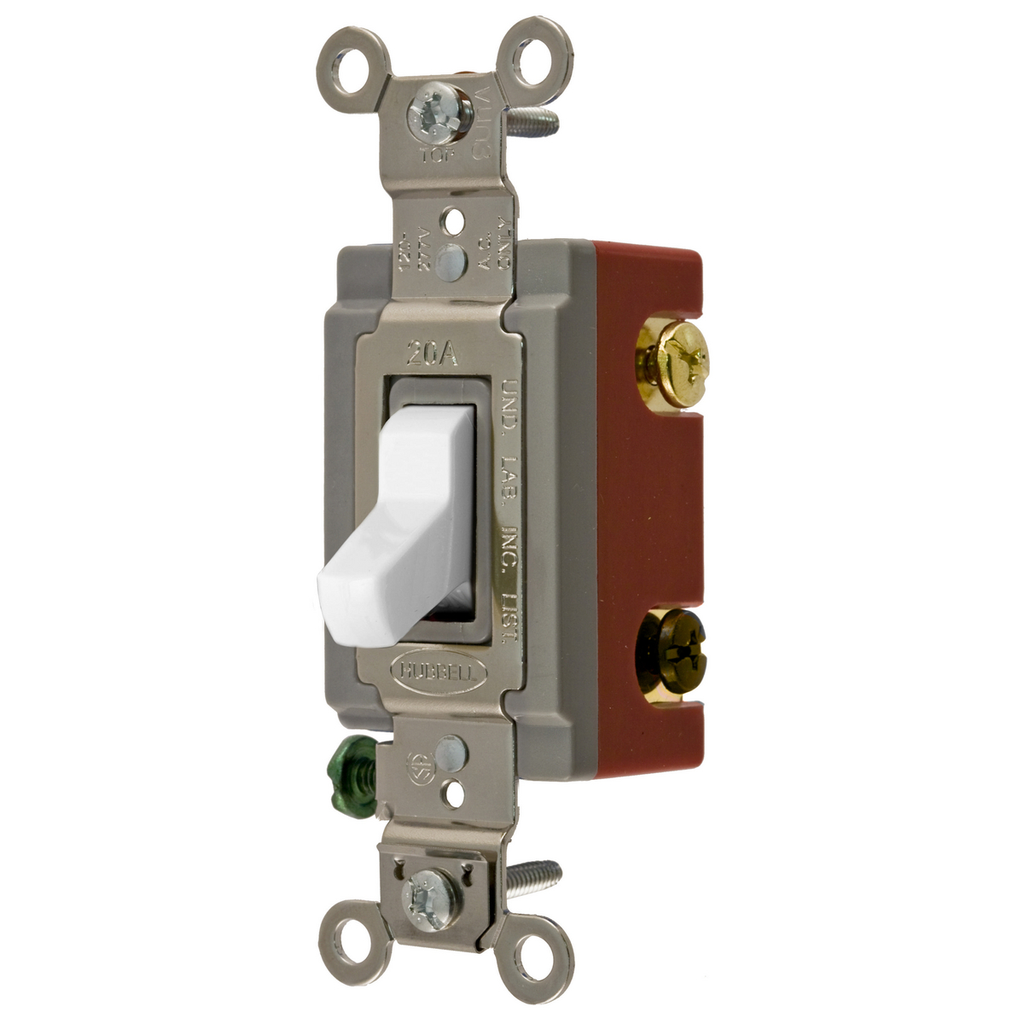

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade Toggle Switches

This extra heavy duty industrial grade toggle switch is designed for general purpose AC applications requiring reliable switching performance. Suitable for lighting solutions and electrical distribution systems, it supports three-way switching with a 20 amp, 120/277V AC rating. The switch is back and side wired for versatile installation and is ideal for use in indoor dry environments, unless additional protection is applied. It is a robust component for wire and cable configurations and can be sourced from a trusted switchgear supplier.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL1223W
• Action: SPDT (Single Pole Double Throw)
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Amperage Rating: 20 A
• Voltage Rating: 120/277V AC
• Current: 20 amperes
• Contact Rating: Per UL 20
• Operating Cycles: 50,000 Cycles
• Connection: Back and Side Wired
• Mounting: Screw Mount
• Color: White
• Width: 1.900 in
• Product Weight: 0.2000 lbs
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Enclosure: None
• Insulation: None

Features

• Extra heavy duty industrial grade construction for durability in demanding electrical applications
• Back and side wired terminals provide flexible wiring options for electrical distributors and contractors
• White toggle designed for clear visibility and easy operation
• Meets UL and CSA standards for safety and performance
• Designed for three-way switching in lighting control circuits
