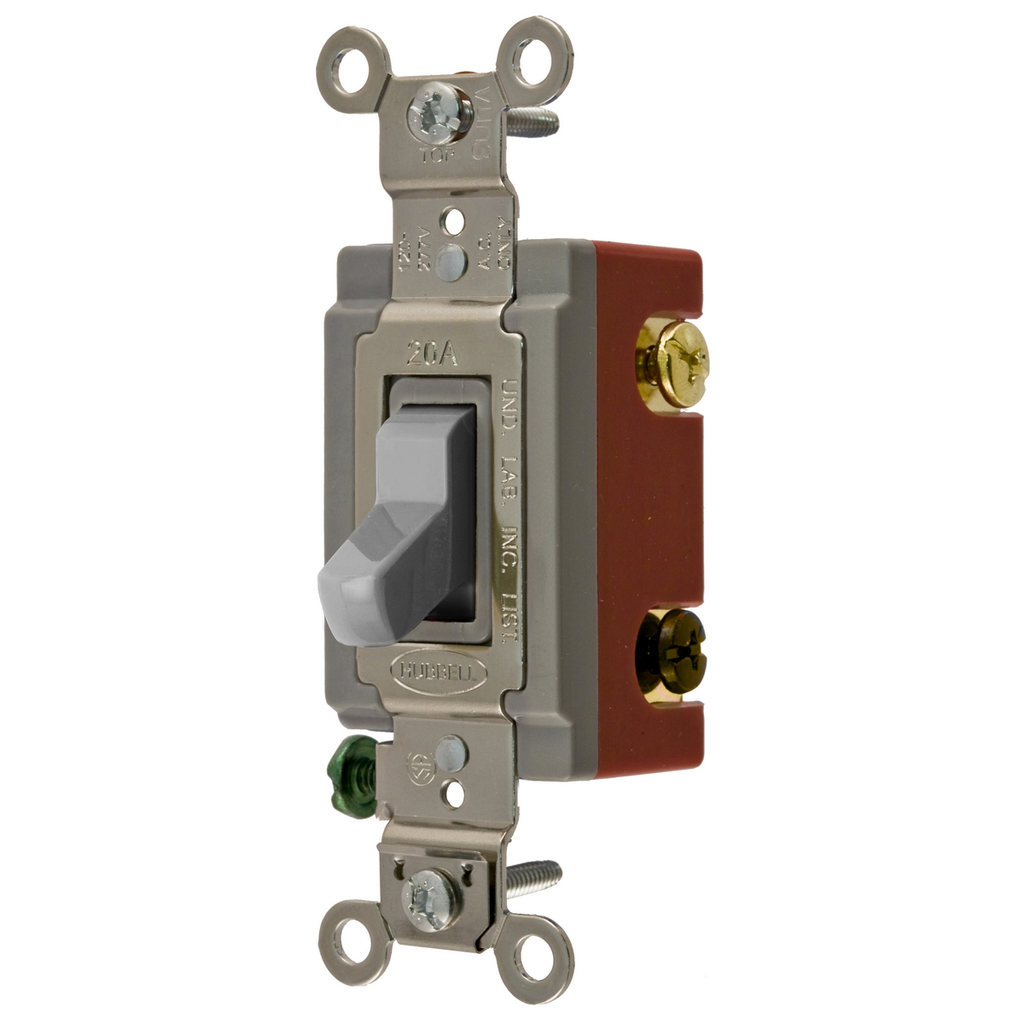

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade Toggle Switches

This extra heavy duty industrial grade toggle switch is designed for general purpose AC applications, suitable for electrical distributors, lighting solutions, and wire and cable setups requiring reliable switchgear components. It features a three-way, single pole double throw (SPDT) action, supporting 20 amperes at 120/277V AC. The switch is engineered for back and side wired connections and is ideal for indoor dry environments unless additional protection is applied.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL1223GY
• Current Rating: 20 amperes
• Amperage Rating: 20 A
• Voltage Rating: 120/277V AC
• Number of Poles: Single Pole
• Contact Configuration: Two Position
• Action: SPDT (Single Pole Double Throw)
• Connection: Back and Side Wired
• Mounting: Screw Mount
• Operating Cycles: 50,000 Cycles
• Contact Rating: Per UL 20
• Color: Gray
• Width: 1.870 in
• Product Weight: 0.2000 lbs
• Environmental Conditions: Indoor Dry unless protected by additional means
• Country of Origin: China
• Enclosure: None
• Insulation: None

Features

• Extra heavy duty industrial grade construction for durability in demanding applications
• Three-way toggle switch suitable for general purpose AC circuits
• Back and side wired terminals for flexible installation
• Gray toggle lever for clear identification
• Designed for screw mounting to ensure secure attachment
• Meets UL contact rating standards for safety and reliability
