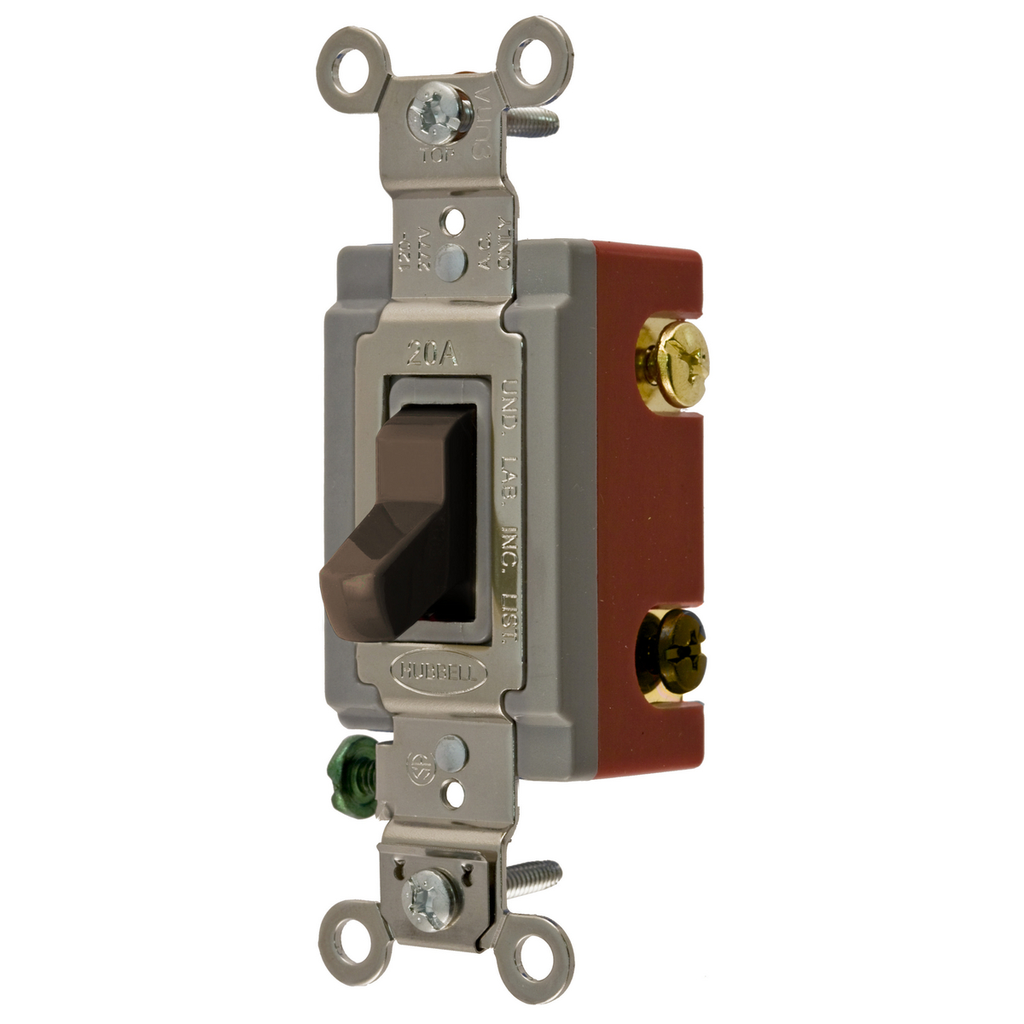

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #141296
Part: #HBL1223
UPC: 783585431765
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Three Way, 20A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #141296
Part: #HBL1223
UPC: 783585431765
Next day delivery
Description
Switches and Lighting Controls Extra Heavy Duty Industrial Grade Toggle Switches
This extra heavy duty industrial grade toggle switch is designed for general purpose AC applications, suitable for electrical distributors and lighting solutions requiring reliable control. It operates as a three-way switch with a single pole double throw (SPDT) action, supporting 20 amperes at 120/277V AC. The switch features back and side wired connections for flexible installation and is intended for indoor dry environments unless additional protection is applied.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL1223
- Amperage Rating: 20 A
- Current: 20 amperes
- Voltage: 120/277V AC
- Number of Poles: Single Pole
- Contact Configuration: Two Position
- Action: SPDT (Single Pole Double Throw)
- Connection: Back and Side Wired
- Mounting: Screw Mount
- Operating Cycles: 50,000 Cycles
- Contact Rating: Per UL 20
- Color: Brown
- Width: 1.900 in
- Product Weight: 0.2000 lb
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
Features
- Extra heavy duty industrial grade construction for durability in demanding electrical environments
- Back and side wired terminals allow versatile wiring options for electrical distributors and switchgear suppliers
- Brown toggle designed for easy identification and aesthetic integration in lighting control applications
- General purpose AC toggle switch suitable for three-way circuit control
- Complies with UL standards ensuring safety and reliability
