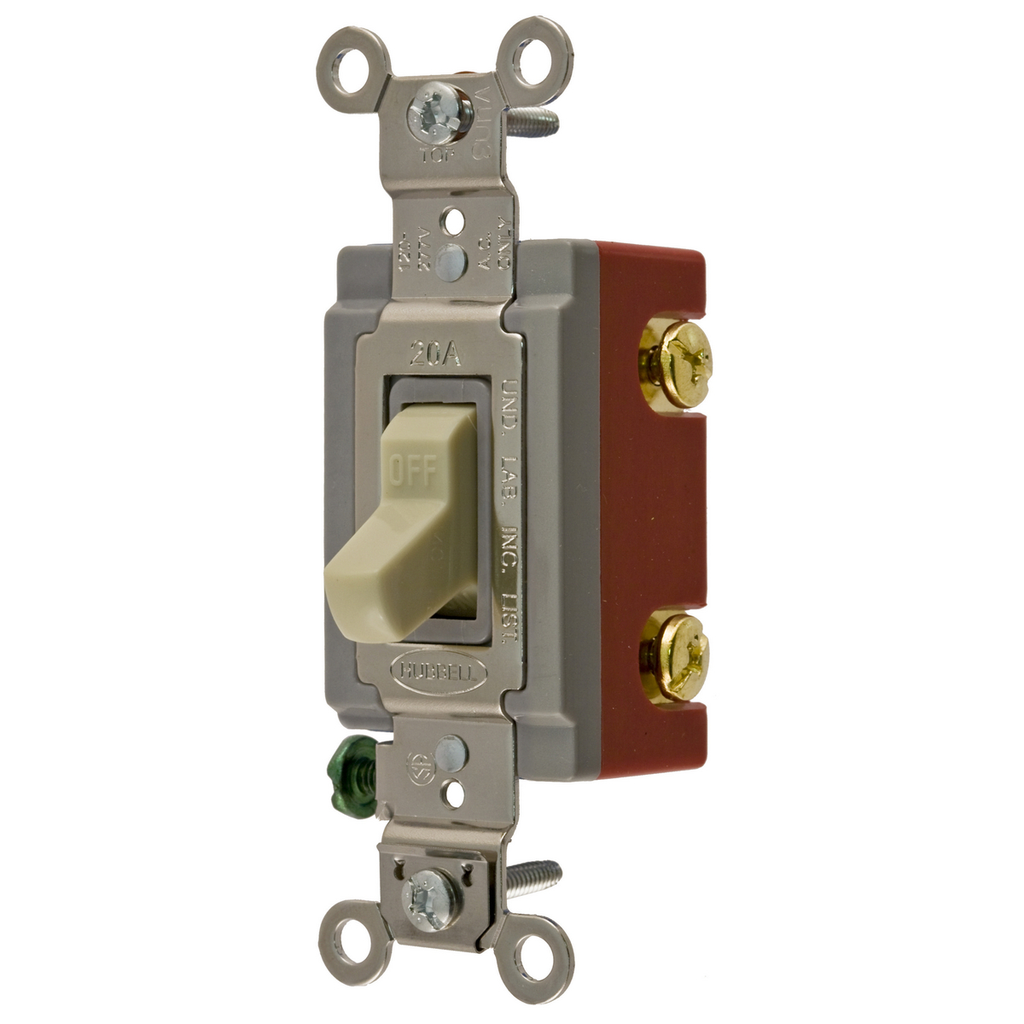

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Ivory Toggle
SKU: #141218
Part: #HBL1221I
UPC: 783585431383
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Ivory Toggle
SKU: #141218
Part: #HBL1221I
UPC: 783585431383
Description
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade Toggle Switch, 20A 120/277V AC
This toggle switch is designed for general-purpose AC applications in industrial and commercial electrical installations. Suitable for use by electrical distributors and lighting solutions providers, it offers reliable switching for wire and cable connections in lighting and power circuits. The switch features back and side wiring options and is intended for indoor dry environments unless additional protection is provided.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL1221I
- Application: Back and Side Wired
- Current Rating: 20 amperes
- Amperage Rating: 20 A
- Voltage Rating: 120/277V AC
- Number of Poles: Single Pole
- Contact Rating: Per UL 20
- Contact Configuration: Two Position
- Action: Positive Snap
- Mounting: Screw Mount
- Operating Cycles: 50,000 Cycles
- Color: Ivory
- Width: 1.9 in
- Weight: 0.2 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
Features
- Extra Heavy Duty Industrial Grade construction for durability
- Toggle switch design for easy operation
- Back and side wiring options for flexible installation
- Positive snap action for reliable switching performance
- Single pole configuration suitable for general-purpose AC circuits
