Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Double Pole Double Throw Center Off, 30A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #141428
Part: #HBL1388
UPC: 783585432700
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Double Pole Double Throw Center Off, 30A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #141428
Part: #HBL1388
UPC: 783585432700
Next day delivery
Description

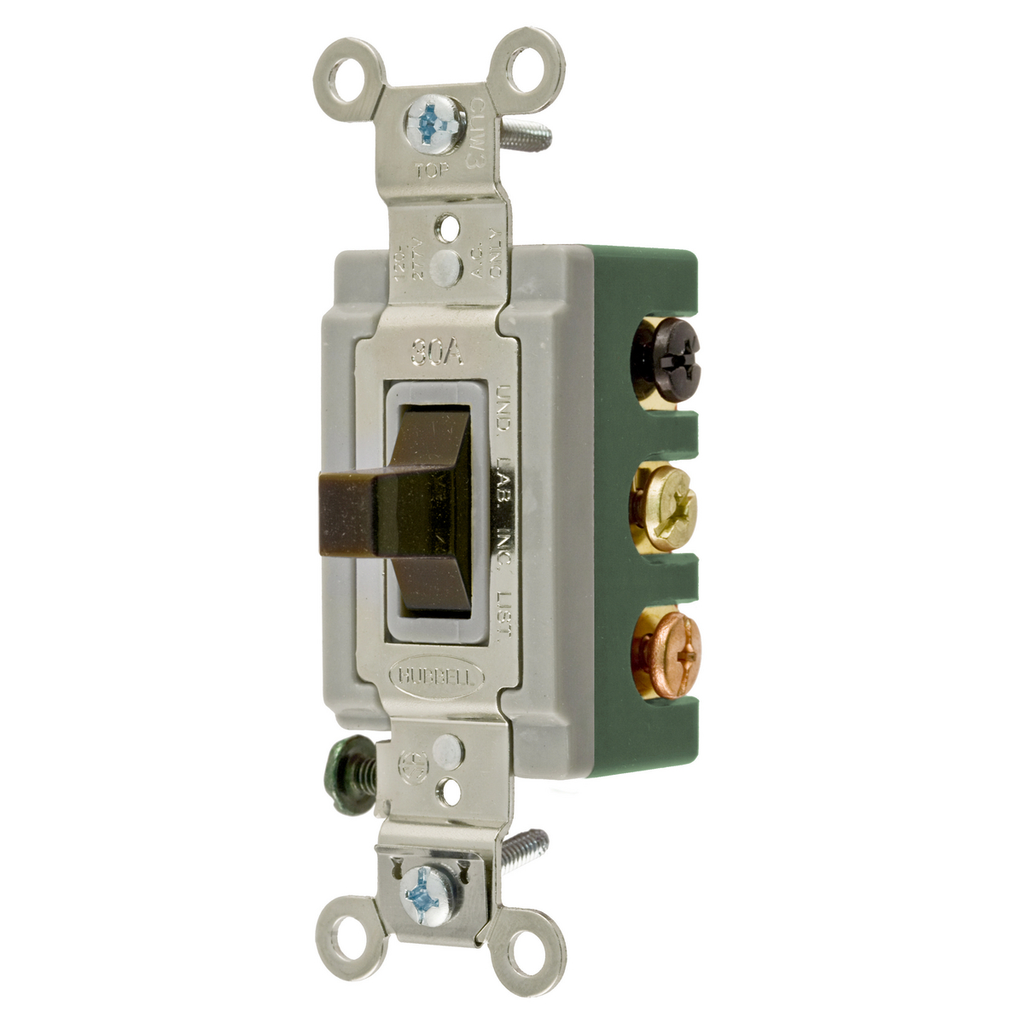

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade Toggle Switches
This industrial-grade toggle switch is designed for general purpose AC applications, providing reliable electrical control for lighting solutions and other electrical systems. Suitable for use by electrical distributors and switchgear suppliers, it supports back and side wiring configurations. The switch is rated for 30 amperes at 120/277V AC and features a double pole double throw (DPDT) three-position center off contact configuration, making it versatile for various control needs in indoor dry environments.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL1388
- Current Rating: 30 amperes
- Voltage Rating: 120/277V AC
- Number of Poles: Double Pole
- Contact Configuration: Three Position Center Off
- Action: DPDT (Double Pole Double Throw)
- Mounting: Screw Mount
- Connection Type: Back and Side Wired
- Operating Cycles: 50,000 Cycles
- Contact Rating: Per UL 20
- Color: Brown
- Width: 1.900 in
- Product Weight: 0.8660 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
Features
- Extra heavy duty industrial grade construction for durability
- Back and side wired terminals for flexible installation
- General purpose AC toggle switch suitable for lighting and electrical control
- Three position center off for precise switching control
- Complies with UL 20 contact rating standards
