Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Double Pole Double Throw Center Off, 20A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #141418
Part: #HBL1386
UPC: 783585432649
Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Double Pole Double Throw Center Off, 20A 120/277V AC, Back and Side Wired, Brown Toggle
SKU: #141418
Part: #HBL1386
UPC: 783585432649
Total Price: $117.82 per each Sold in increments of 1 each
Next day delivery
Description

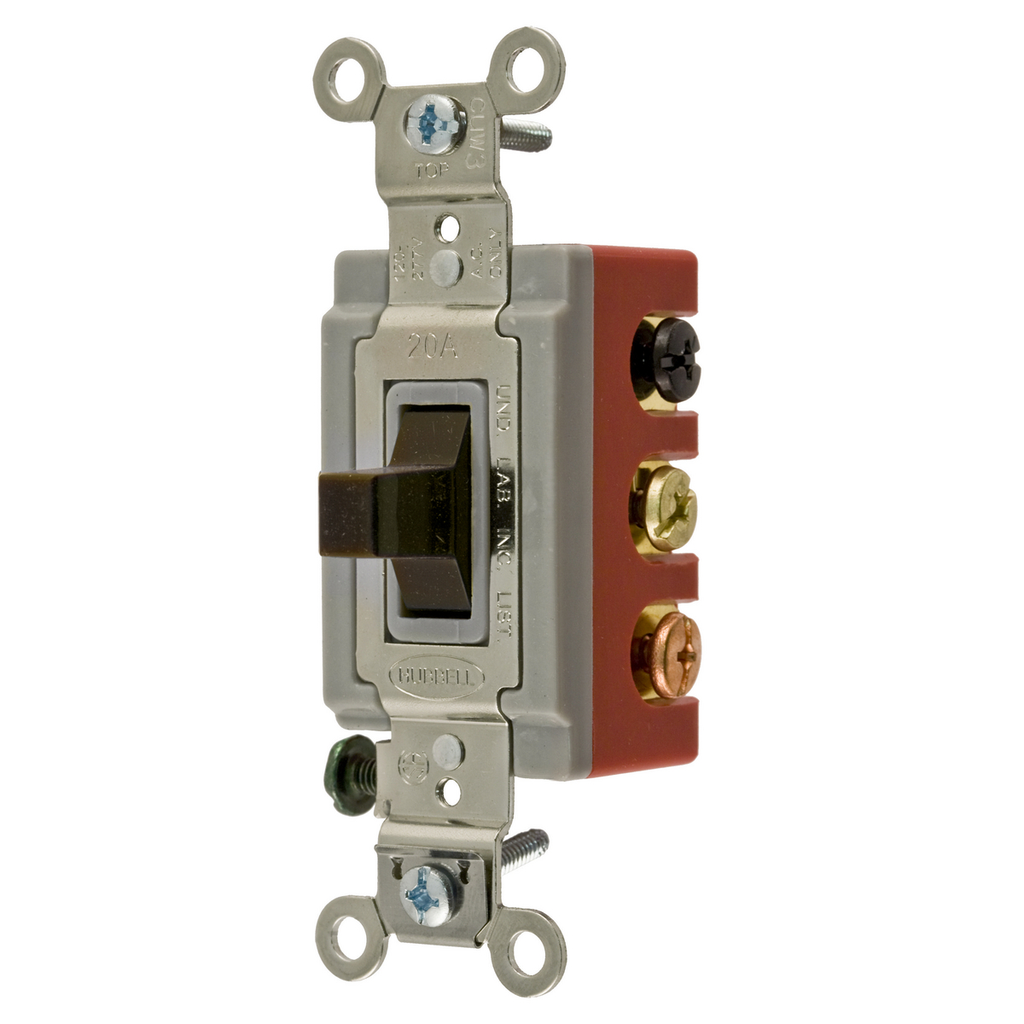

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade Toggle Switches, Double Pole Double Throw (DPDT)
This toggle switch is designed for general purpose AC applications, offering a double pole double throw (DPDT) configuration with a three-position center off contact arrangement. Suitable for use by electrical distributors and switchgear suppliers, it supports back and side wiring connections and is ideal for industrial-grade lighting solutions and wire and cable installations requiring robust switching capabilities.
Specifications
- Manufacturer: Hubbell Wiring Device-Kellems
- Manufacturer Part #: HBL1386
- Current Rating: 20 amperes
- Voltage Rating: 120/277V AC
- Number of Poles: Double Pole
- Contact Configuration: Three Position Center Off
- Contact Rating: Per UL 20
- Action: DPDT (Double Pole Double Throw)
- Connection Type: Back and Side Wired
- Mounting: Screw Mount
- Operating Cycles: 50,000 Cycles
- Color: Brown
- Width: 1.9 in
- Product Weight: 0.25 lbs
- Environmental Conditions: Indoor Dry unless protected by additional means
- Country of Origin: China
Features
- Extra heavy duty industrial grade construction for durability
- Back and side wired terminals for flexible installation
- Toggle actuator in brown color for easy identification
- General purpose AC switch suitable for lighting controls and electrical distribution
- UL rated contact performance ensuring safety and reliability
