Switches and Lighting Controls Extra Heavy Duty Industrial Grade Locking Toggle Switches

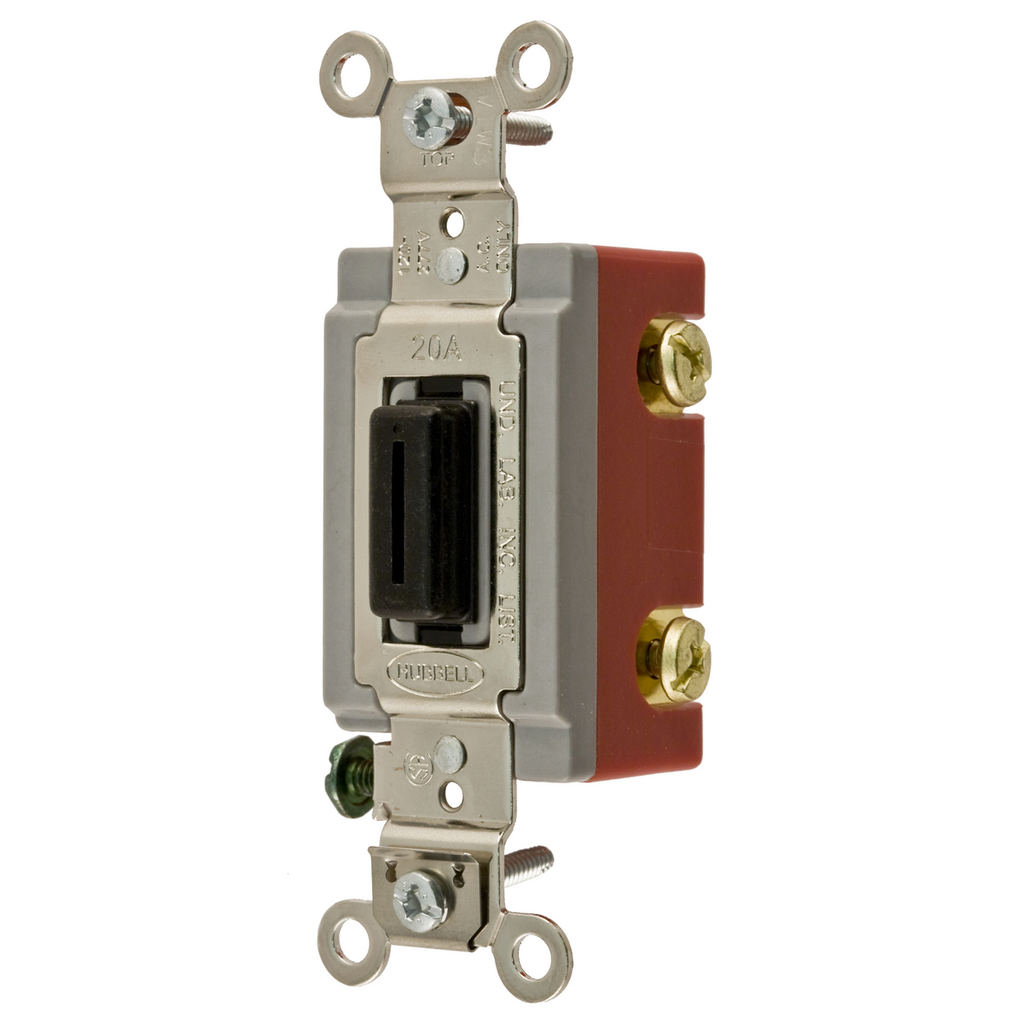

This single pole locking toggle switch is designed for general purpose AC applications in industrial environments. It offers a robust solution for electrical distributors and lighting solutions requiring reliable switchgear components. The device supports back and side wiring, making it compatible with various wiring configurations and ensuring secure connections with terminal screws.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL1221L
• Application: Back and Side Wired
• Amperage Rating: 20 A
• Current: 20 amperes
• Load: Inductive or Resistive
• Number of Poles: 1
• Contact Configuration: 2-Position
• Contact Rating: Full Rated
• Action: Snap
• Actuator: Double Ended Key
• Lock Type: Non-Cylindrical
• Color: Black
• Material: Composite
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Indicator: Dot Indicates On
• Width: 1.900 in
• Product Weight: 0.2000 lbs
• Country of Origin: China
• UPC: 783585431444

Features

• Extra heavy duty industrial grade construction for durability in demanding environments
• Locking toggle design enhances operational safety by preventing unauthorized switch operation
• Back and side wiring options provide installation flexibility for electrical distributors and switchgear suppliers
• Composite material housing offers insulation and mechanical strength
• Indicator dot provides clear visual confirmation of switch ON status
• Full rated contacts ensure reliable switching performance for inductive and resistive loads
