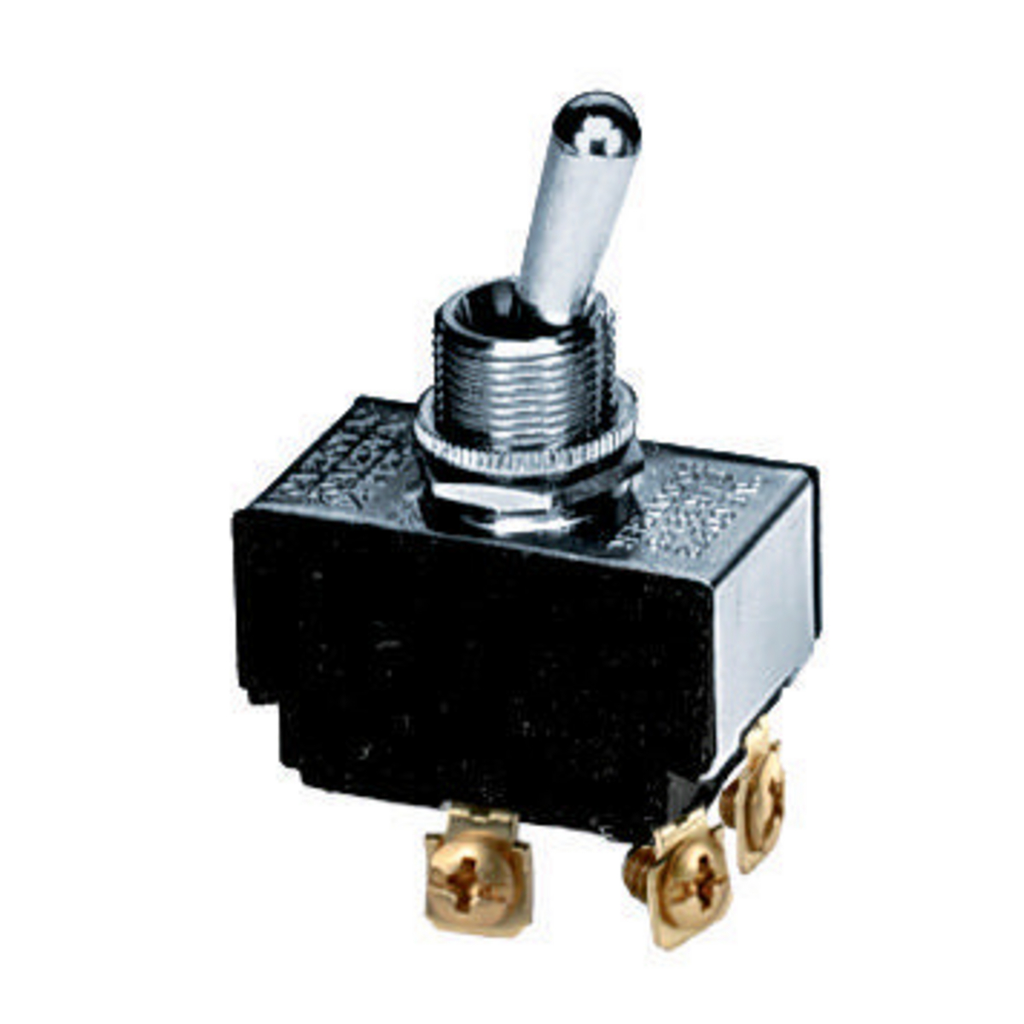

Switches and Lighting Controls, Commercial Grade Bat Handle Switch - Double Pole Single Throw 10A 250V/10A 125V

This commercial grade bat handle switch is designed for panel mount applications, suitable for electrical distributors and switchgear suppliers requiring reliable double pole single throw switching. It supports 2-circuit On/Off operation with spade terminal connections, making it applicable for lighting solutions and wire and cable control in indoor dry environments.

Specifications

• Manufacturer: Hubbell Wiring Device-Kellems
• Manufacturer Part #: HBL21SP
• Application: 2-Circuit On/Off
• Amperage Rating: 10/20 A
• Current: 10 amperes
• Interrupt Rating: 10A 250V AC, 20A 125V AC
• Horsepower Rating: 1.5 horse power
• Number of Poles: Double Pole
• Contact Configuration: Two Position
• Actuator: Bat Handle
• Mounting: Panel Mount
• Connection: Spade Terminal
• Material: Metallic Handle
• Color: Metallic
• Width: 1.310 in
• Operating Temperature: Maximum continuous 75°C, minimum -40°C without impact
• Environmental Conditions: Indoor dry unless protected by additional means
• Contact Rating: As Indicated
• Product Weight: 0.0500 lbs
• Country of Origin: China

Features

• Commercial grade construction for durability
• Comes with indicator plate for clear status visibility
• Double pole single throw design provides reliable 2-circuit switching
• Panel mount installation for secure and accessible mounting
• Spade terminal connection for easy wiring and maintenance
• Metallic bat handle actuator for robust operation
