Switches and Lighting Controls Combination Device – Residential Grade

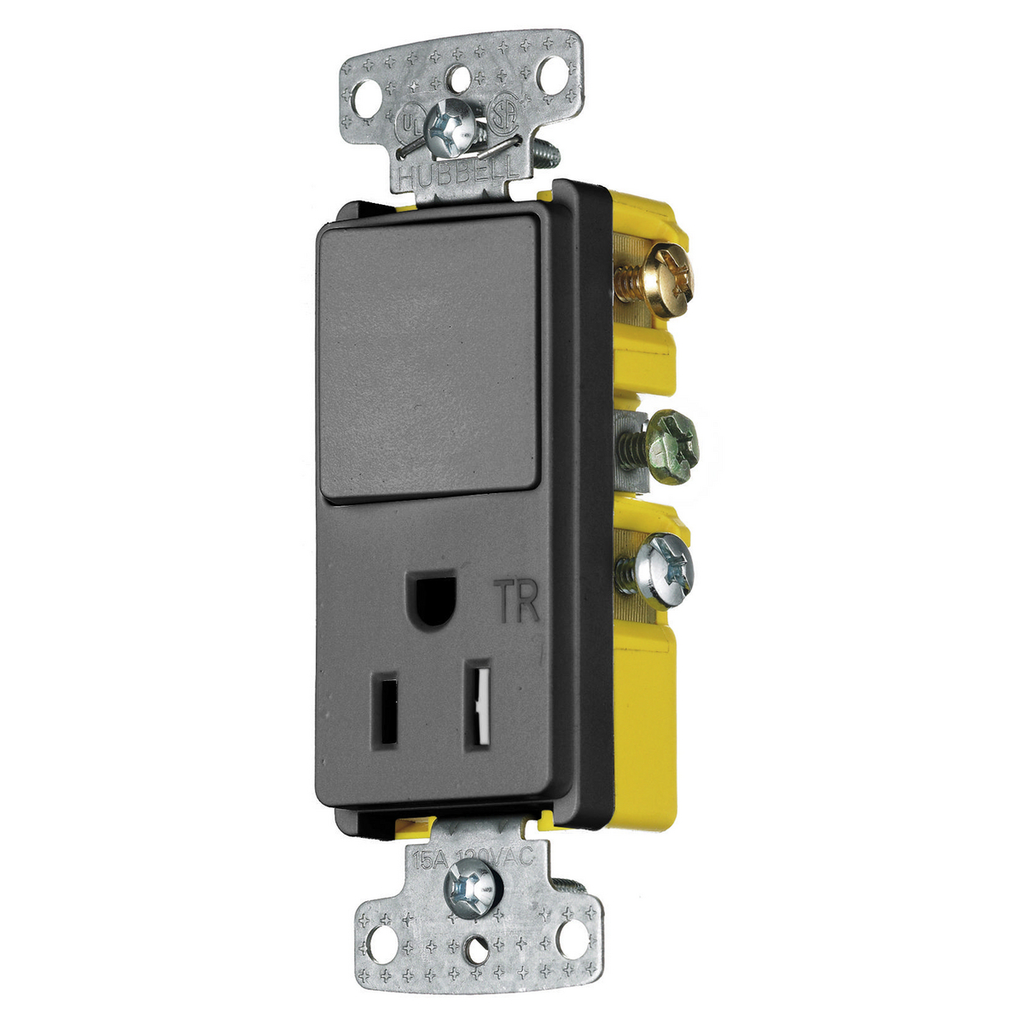

This combination device integrates a single pole rocker switch with a tamper-resistant single receptacle rated at 15A and 120V AC, designed for residential applications. It is side wired and part of the Decorator Series, suitable for use in indoor dry environments. This product is ideal for electrical distributors and lighting solutions providers looking for reliable wire and cable compatible switchgear components.

Specifications

• Application: Residential
• Current Rating: 15 A
• Voltage Rating: 125 VAC
• Contact Rating: 15A
• Number of Poles: 1 Single Pole
• Contact Configuration: Two Position
• Operating Cycles: 30,000 Minimum
• Connectivity: Side Wired
• Material - Mounting Hardware: Mounting Screws
• Base and Body Material: PVC
• Mounting Strap Material: Galvanized Steel
• Rocker Material: Polycarbonate
• Terminal Screws Material: Steel
• Terminals Material: Brass
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Operating Temperature: Max 60°C, Min -20°C (without impact)
• Electrical Endurance: 30,000 cycles minimum
• Dielectric Voltage Withstand: 1,500V AC minimum for 1 minute
• Action: Snap Switch
• Actuator: Rocker
• UPC: 883778302343
• Country of Origin: China
• Manufacturer: Bryant
• Manufacturer Part #: RCD108BKTR
• Wattage: 1875 W

Features

• Smooth, quiet rocker operation
• Low profile design, less than 1 inch deep
• Self-grounding feature standard
• Tamper resistant receptacle for enhanced safety
• CSA Certified and UL Listed (E3896)
• Compatible with #14 to #12 AWG solid and stranded copper wire (back and side wire)
