Description
Features
- Thread cleaning captive mounting screw
- Steel, zinc plated bridge is corrosion resistant
- Automatic self-grounding staple
Specifications
- Country of Origin: China
- Current / Amperage Rating: 15 A
- Dimensions: 4.28 in x 1.43 in x 1.54 in
- Width: 2.000 in
- Each - Width: 2.000 in
- Height: 1.54 in
- Industry Standard(s): UL Listed
- Length: 4.28 in
- Performance: Electrical - Dielectric Voltage - Withstands 1500V AC minimum for 1 minute;Electrical - Max. Continuous Current - 15A;Electrical - Max. Working Voltage - 277V AC;Electrical - Overload - Minimum 4.8 times rated current for 100 cycles;Electrical - Temperature Rise - 30°C maximum at rated current;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Max. continuous: 75°C, Min. continuous: -40°C without impact;Mechanical - Terminal Accommodations - #14 AWG min. - #10 AWG max. solid and stranded copper wire only
- Temperature Rise - Max.: 30°C maximum at rated current
- Amperage Rating: 15 A
- Color: Gray
- Number of Poles: Single Pole
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
- Size: 4.28 in x 1.43 in x 1.54 in
- Standard: UL Listed
- Type: Rocker/Decorator
- Voltage Rating: 120-277 VAC
- Connectivity: Back and Side Wired
- Dielectric Strength: Withstands 1500V AC minimum for 1 minute
- Number Of Poles: Single Pole
- Style: Single Pole
- Weight: 0.2 lb.
- Wire Size: #14 AWG to #10 AWG
- Class Code: A16

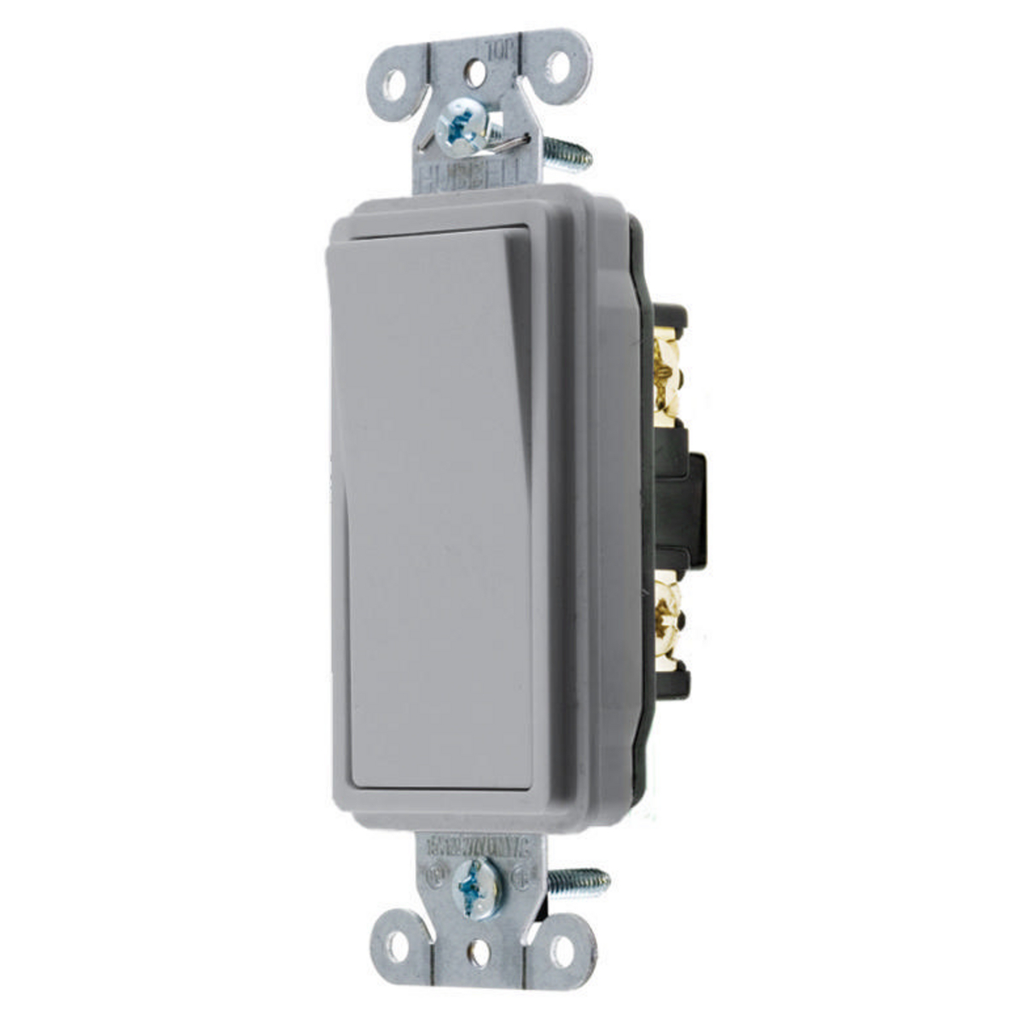

- Description - Invoice: SWITCH, DECO SER, SP, 15A 120/277V, GY
- Freight Class Code: 06168002
- Harmonization Code: 8536509040
- Image Actual Or Representative: A
- MSDS Flag: No
- Replaced Catalog Number: 2101GY;DS115G;HBL2101GY
- Sub Class Code: A16A250
- Current Rating: 15 A
- Material: Thermoplastic
- Series: General Purpose
- Base Unit of Measure: EA
- BOX SIZE: 3.700x10.000x4.400 (in)
- Carton - Gross Weight per Pack: 2 lb.
- Carton - Number of Sub Packs: 10
- Carton - Pack Description: Carton
- Carton - SCC-14 Next Lower Level Sub Pack: 783585154398
- Carton - Total Units: 10 EA
- Case - Total Units: 50 EA
- Case Weight: 9.000 lb.
- Each - Pack Description: Each
- Lowest Level UOM: Each
Certifications
- EU RoHS Indicator: Yes
Downloads
Spec SheetCatalog Full Asset Reference
Catalog Page Asset Reference
Installation Manuals Asset Reference
Sales Drawing Asset Reference
Warranty Document Asset Reference
More Information
Manufacturer Catalog Number
DS115GY
Weight
.2000
Width
2.000
Country of Origin
China
Material
Thermoplastic
Color
Gray
Amperage
15 amperes
Current
15 amperes
Enclosure
None
Number Of Poles
Single Pole
Product Size
4.28 in x 1.43 in x 1.54 in
Type
Rocker/Decorator
Wattage
4155 W
Wire Length
Wire Size
14-10 american wire gauge
