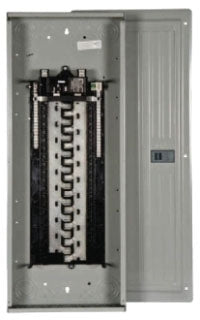

SW2024B1125 Low Voltage Load Center
The Siemens SW2024B1125 is a low voltage load center designed for residential electrical distribution. It features a factory-installed main breaker and supports a 1-phase, 3-wire system with a voltage rating of 120/240 Volt AC and a current rating of 125 amperes. This load center is suitable for outdoor use with a NEMA Type 3R enclosure and is designed to accommodate up to 24 circuits with 20 one-inch breaker spaces. It incorporates an aluminum bus and a gray trim, meeting UL approval and REACH compliance standards, making it a reliable choice for electrical distributors and switchgear suppliers handling lighting solutions and wire and cable infrastructure.
Specifications
- Manufacturer: Siemens
- Model Number: SW2024B1125
- Voltage Rating: 120/240 Volt AC
- Current Rating: 125 amperes
- Circuit Configuration: 1-Phase, 3-Wire
- Maximum Number of Circuits: 24
- Maximum Number of Spaces: 20 (1 inch each)
- Interrupting Rating: 22,000 amperes
- Bus Material: Aluminum
- Enclosure Type: NEMA 3R (Outdoor)
- Cover Type: Flush/Surface
- Interior Type: Standard
- Trim Color: Gray
- Product Weight: 33 lbs
- UL Approved
- REACH Compliant
Features
- Factory-installed main breaker for streamlined installation
- Outdoor-rated NEMA 3R enclosure for protection against weather
- Aluminum bus for efficient electrical conductivity
- Gray trim providing a professional finish
- Supports up to 24 circuits with 20 spaces for 1-inch breakers
- Complies with UL standards ensuring safety and reliability
- Suitable for residential electrical distribution applications
