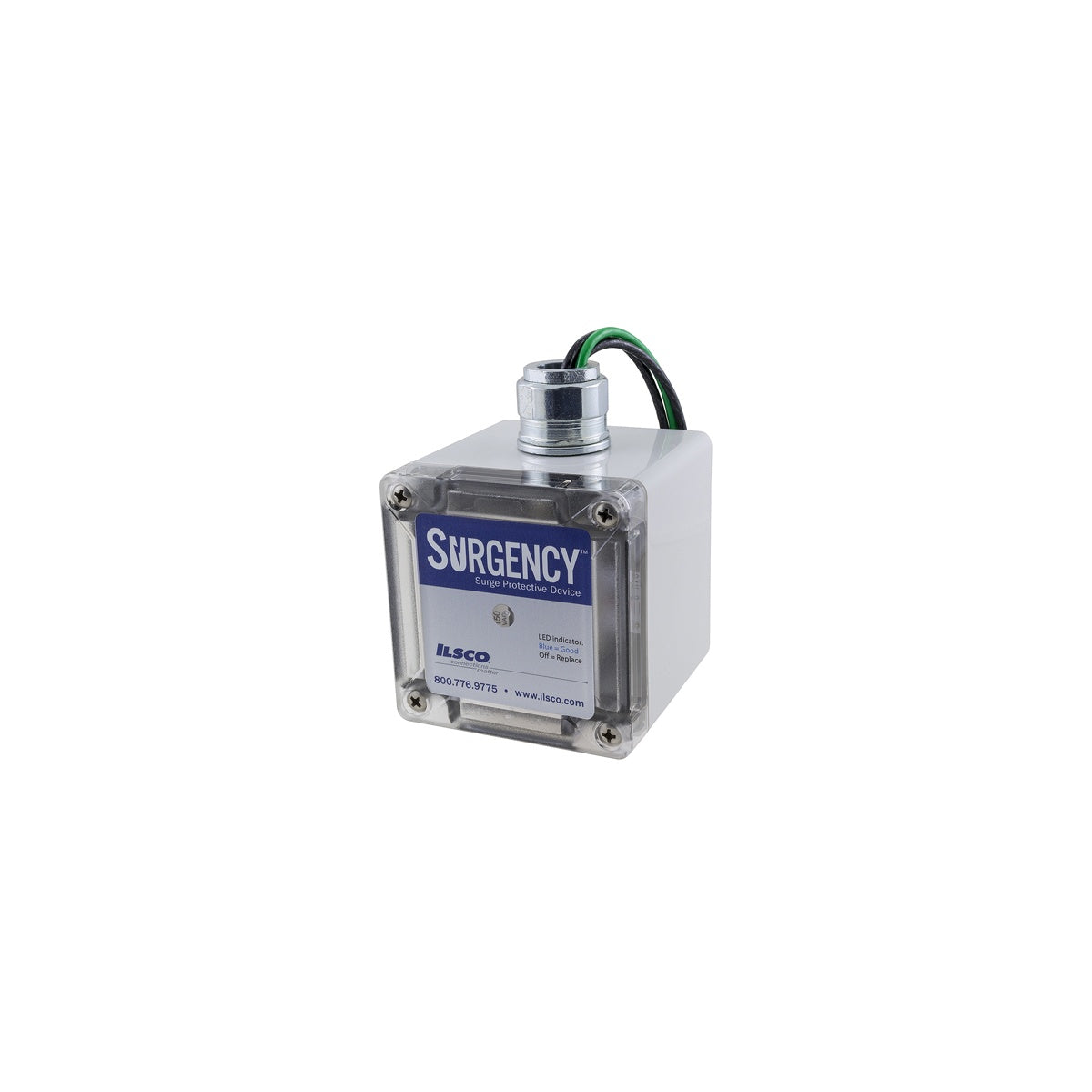

Surgency Surge Protection Residential Lead Wire Size 12 Surge Protective Device

The ILSCO Surgency Surge Protective Device (SPD) is designed for residential electrical systems, providing surge protection for single-phase, split system applications. It is suitable for use by electrical distributors and switchgear suppliers looking for reliable surge protection solutions for wire and cable configurations with 12 AWG lead wire size. This device supports 120/240 V systems and features an indicator LED for real-time status monitoring.

Specifications

• Surge Current Capacity: 50 kA
• Lead Wire Size: 12 AWG
• Phases: 1 Phase, Split System
• Voltage Rating: 120/240 V
• Dimensions: 3.3 in (Height) x 3.3 in (Length) x 3.2 in (Width)
• Weight: 1.1 lbs
• Operating Temperature: -40¬∫F to +150¬∫F (-40¬∫C to +65¬∫C)
• Enclosure Rating: NEMA 1, 2, 3, 3R, 3X, 4, 4X
• Degree of Protection (installed with liquid-tight connections): IP65
• Short-Circuit Current Rating (SCCR): 200 kA
• Nominal Discharge Current (8x20 ¬µs): 20 kA
• Recommended Circuit Breaker: 20 Amp
• Certifications: UL, CSA
• Manufacturer Part Number: RE-050-1R1X-A

Features

• LED Indicator for status monitoring: Blue indicates good protection, off indicates replacement required
• Internal protection disconnects surge component at end of life while maintaining power to load
• Suitable for indoor or outdoor installation
• Compact size for easy mounting in residential electrical panels
• Designed for use with stranded 12 AWG wire
• Contains no user-serviceable parts
• Five-year product warranty with additional residential connected equipment coverage
