Surgency Surge Protection, Residential, Lead Wire Size 10, 3 Phase, Wye System, 50kA Surge Current, 208Y/120 V, Indicator LED, UL, CSA
SKU: #260443
Part: #RE-050-Y3WX-A
UPC: 783669010015
Surgency Surge Protection, Residential, Lead Wire Size 10, 3 Phase, Wye System, 50kA Surge Current, 208Y/120 V, Indicator LED, UL, CSA
SKU: #260443
Part: #RE-050-Y3WX-A
UPC: 783669010015
Description
Surgency Surge Protection Residential Lead Wire Size 10, 3 Phase, 50kA Surge Current

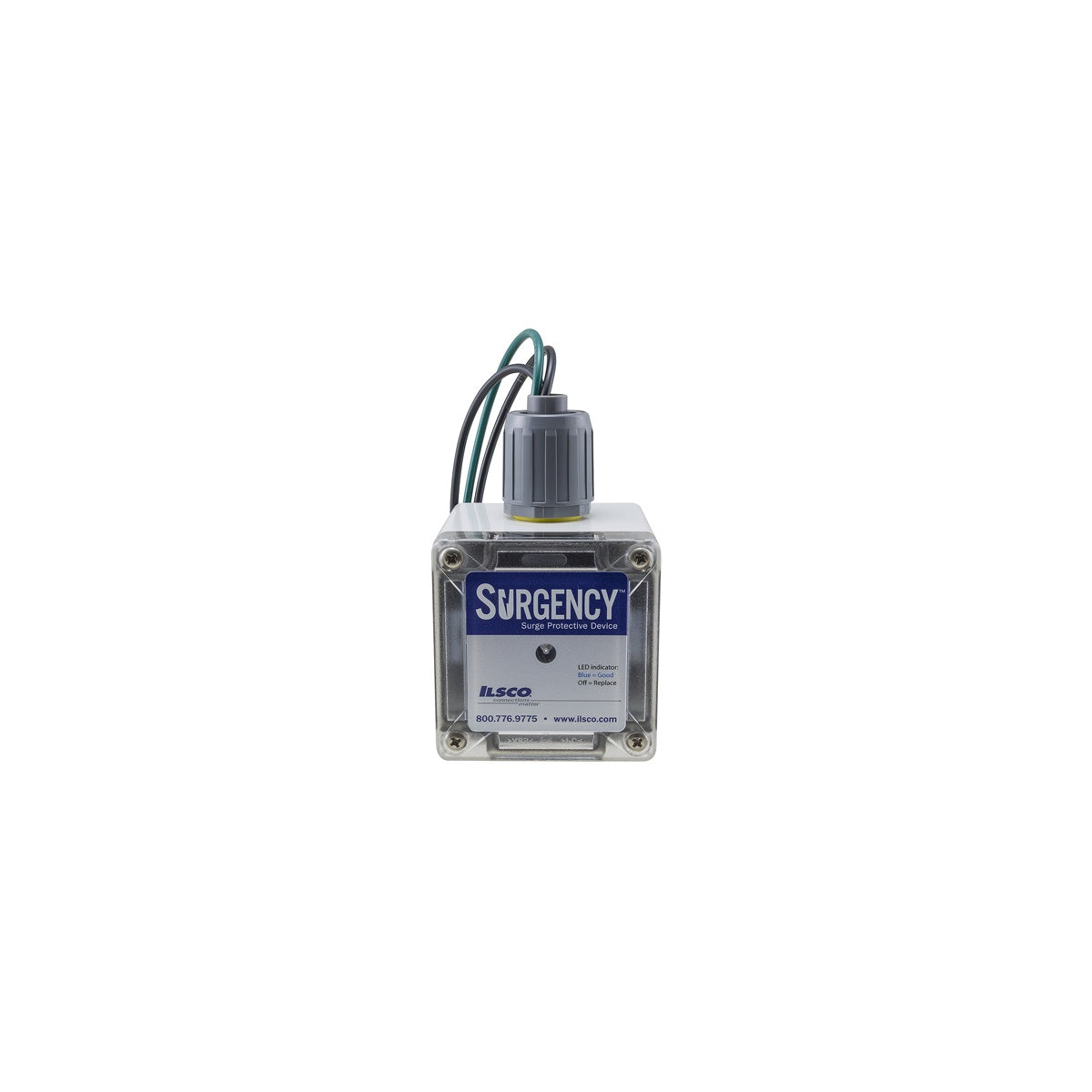

The ILSCO Surgency Surge Protective Device (SPD) is designed for residential electrical systems to protect against transient voltage surges. Suitable for 3-phase Wye systems at 208Y/120 V, this device is ideal for electrical distributors and switchgear suppliers looking for reliable surge protection solutions. It features an LED status indicator for real-time monitoring and is compatible with wire and cable sizes of 10 AWG stranded conductors.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part #: RE-050-Y3WX-A
- Surge Current Capacity: 50 kA
- System Configuration: 3 Phase, Wye System
- Voltage Rating: 208Y/120 V
- Lead Wire Size: 10 AWG
- Dimensions (W x H x L): 4.8 in x 3.6 in x 4.9 in
- Product Weight: 1.9 lbs
- Indicator: LED status indicator
- Certifications: UL, CSA
Features
- LED indicator shows operational status: Blue for good, Off for replacement needed
- Suitable for residential surge protection applications
- Compact NEMA-rated enclosure for indoor or outdoor installation
- Designed for use with stranded 10 AWG conductors
- Provides transient voltage surge suppression up to 50 kA
- Meets UL and CSA safety standards
