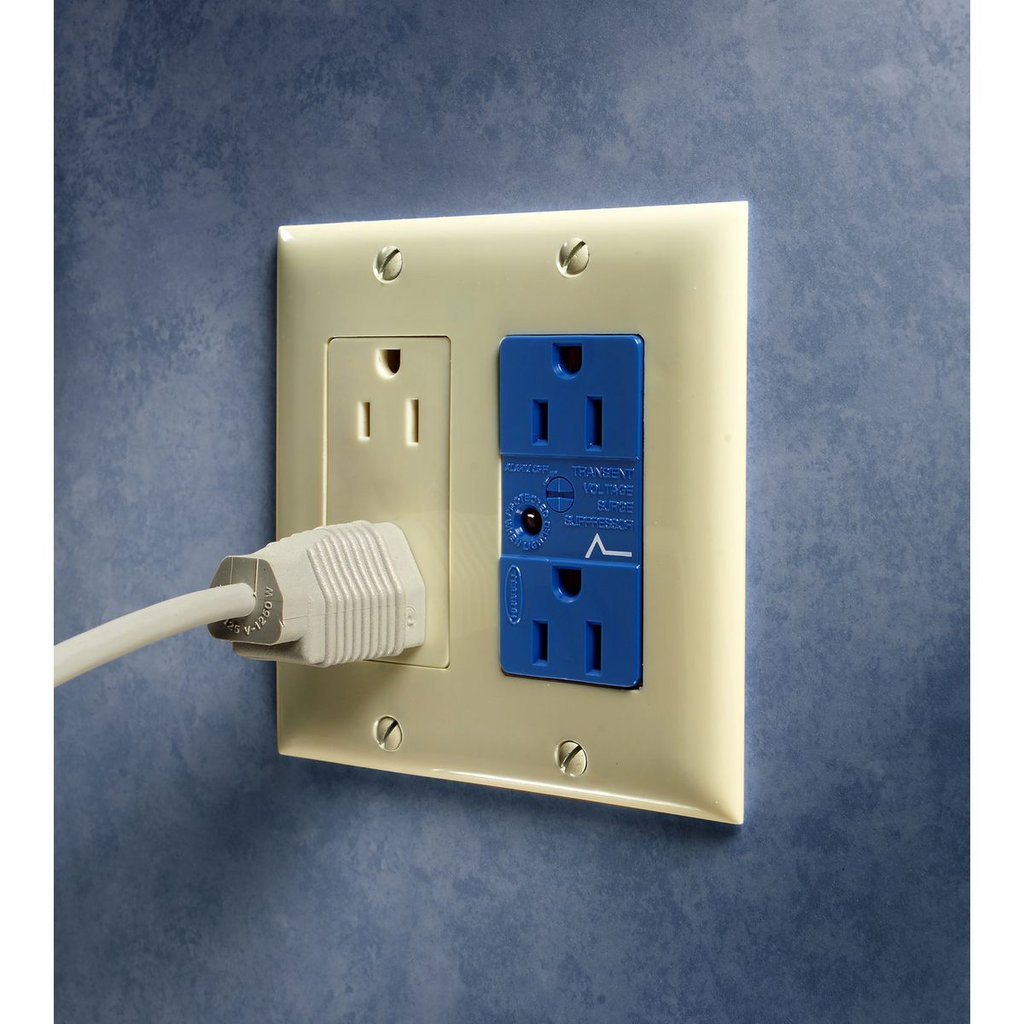

Surge Protective Devices SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm

This surge protective device is a SPIKESHIELD TVSS duplex receptacle designed for electrical distributors and lighting solutions requiring reliable surge protection. It features a 15A, 125V rating with a 5-15R straight blade outlet configuration, suitable for indoor dry environments. The device integrates both a power-on indicator light and an audible alarm to signal protection status, making it ideal for applications needing continuous surge protection monitoring.

Specifications

• Application: Decorator Duplex with Light and Alarm
• Current Rating: 15 A
• Amperage Rating: 15 A
• Voltage Rating: 125 V AC +10% / -15%
• Frequency Rating: 60 Hz
• Phase: Single Phase
• Outlet: Straight Blade (5-15R)
• Material: Composite with Nylon base and face
• Mounting: Mounting Screws
• Connection: Terminal Screws
• Color: Blue
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Response Time: Approximately 5 nanoseconds
• Flammability: UL 94V-2
• Operating Temperature Range: 32°F to 140°F (0°C to 60°C)
• Industry Standards: CSA Certified to C22.2 No. 42, UL Listed File E2186, UL Standards 498
• NEMA Rating: 5-15R

Features

• Automatic self-grounding staple
• Distinctive surge symbol for quick identification
• Power-on LED indicator verifies power availability
• Audible alert alarm signals when surge protection is no longer functioning
• Composite construction with nylon base and face for durability
• Contact design includes tandem modified bypass for enhanced protection
• Mounting hardware includes steel zinc-coated mounting strap and brass power contacts
