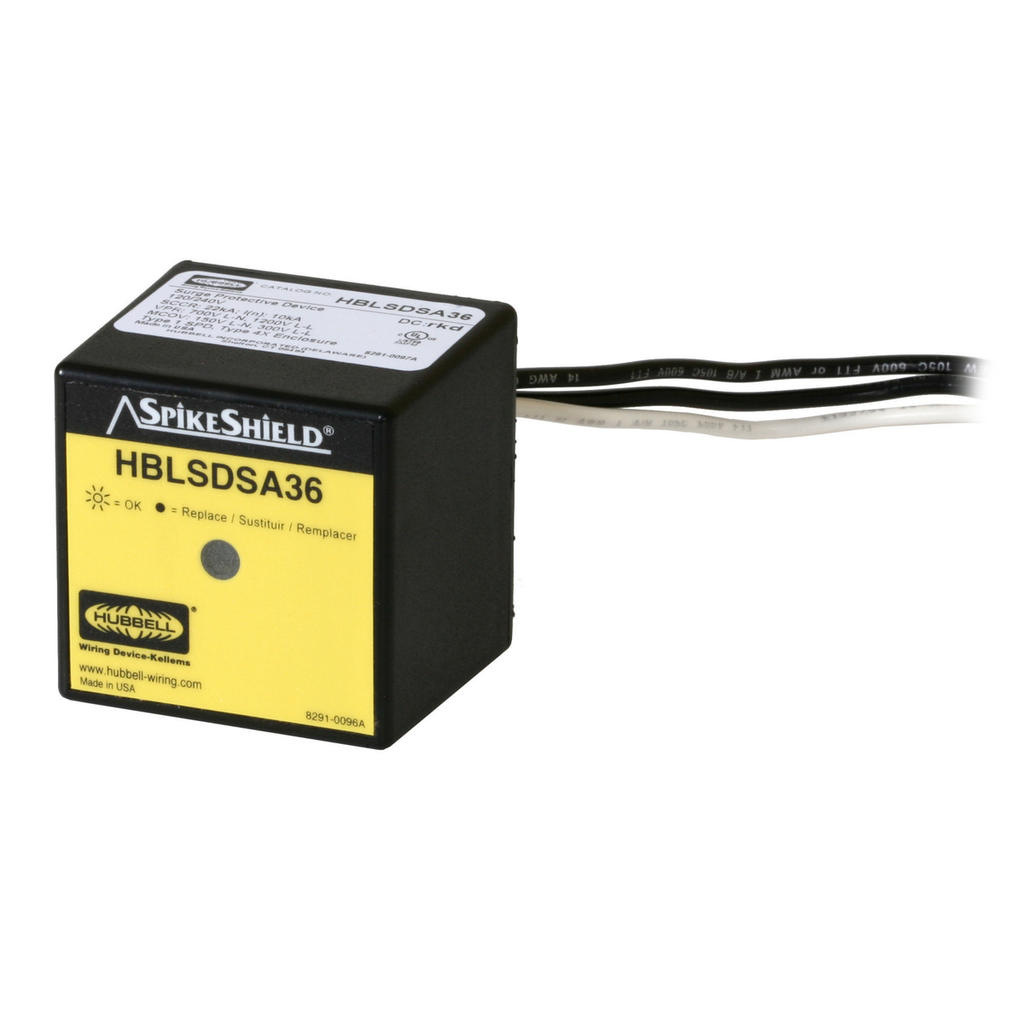

Surge Protective Devices, SPIKESHIELD Panel Style, 36KA Single Phase
SKU: #146715
Part: #HBLSDSA36
UPC: 783585120874
Surge Protective Devices, SPIKESHIELD Panel Style, 36KA Single Phase
SKU: #146715
Part: #HBLSDSA36
UPC: 783585120874
Description
Features
NEMA 4X
- Excellent for OEM applications
- Installed on the line side or load side of the service entrance
Specifications
- Application: Surface Mount Brick with Leads
- Environmental Conditions: Indoor and Outdoor
- Indicator(s) Type: Green Status LED per Line
- Item Type: Wired-In Surge Arrestors
- Material: Steel
- Material - Mounting Hardware: Mounting Screws
- OEM Brand Name: Hubbell Wiring Device-Kellems
- Operating Temperature: -40 Degrees F to 149 Degrees F (-40 C to 65 C)
Performance
- Electrical - Diagnostics - Green Status LED per line
- Electrical - Surge Current per Phase - 36kA
- Environmental - Operating Temperature - -40ºF to 160ºF(-40ºC to 70ºC)
- Mechanical - Terminal Accommodation - #14 AWG Wire Leads
- Response Time: 5
- Series: Wired-In Surge Devices
- Type: 36kA
- UPC: 783585120874
- Display Size: 36kA Peak
- Connectivity: Leads
- Frequency Rating: 60 Hz
- Phase: Single Phase
Voltage Rating
- Single Phase 120 VAC
- Single Phase 240 VAC
- Voltage Rating Description: 120/240 VAC Single Phase
- Industry Standard(s): UL1449-3rd Edition
