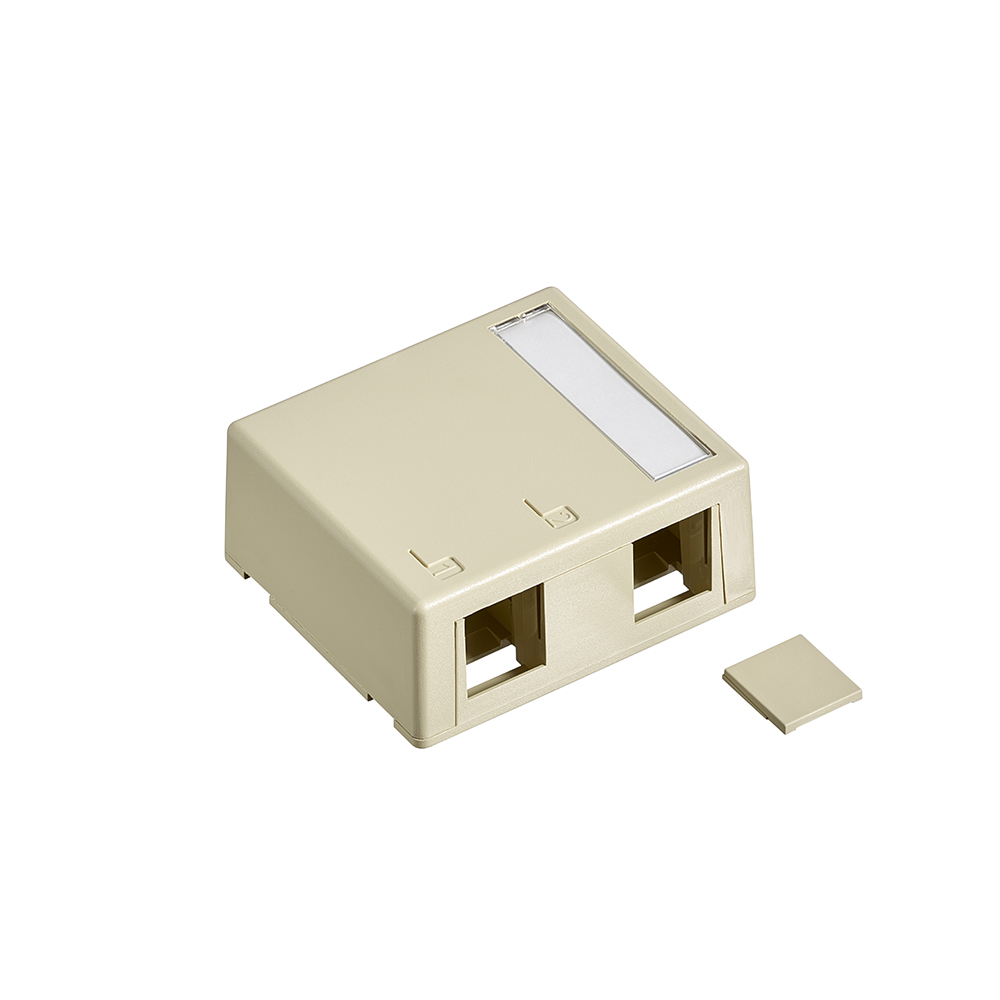

Surface-Mount QUICKPORT™ Box, Plenum-Rated, 2-Port, Ivory - Surface Mount Box for Voice/Data Applications

The Surface-Mount QUICKPORT™ Box, Plenum-Rated, 2-Port in Ivory is designed for compact surface mounting to support voice and data applications in office, retrofit, or other surface-mount environments. This box accepts two QUICKPORT snap-in connector modules and is suitable for use by electrical distributors and lighting solutions providers offering wire and cable and switchgear supplier services. It is plenum rated for installation in air-handling spaces, ensuring compliance with safety standards.

Specifications

• Manufacturer Part #: 41089-2IP
• Product Weight: 2.62 lbs
• Country of Origin: Mexico
• Material: High-impact, fire-retardant plastic rated UL 94V-0
• Compliance: cULus listed, ANSI/TIA-568-C, RoHS compliant, UL 2043 (plenum-rated)
• Mounting: Includes screws, pressure-sensitive adhesive; compatible with optional magnet mounting (41030-SMJ)
• Dimensions (Width x Depth x Height): Approximately 2.25" x 2.28" x 1.10" (from product specs for 2-port box)
• Color: Ivory

Features

• Accepts two QUICKPORT snap-in connector modules
• Includes ID window and designation label for port identification
• Includes mounting screws and pressure-sensitive adhesive for flexible installation
• Compatible with all individual QUICKPORT modules
• Connector modules can be pre-terminated before snapping into the housing
• 1-port blank included to close off unused port if needed
• Suitable for installation in air-handling spaces (plenum-rated)
• Multiple cable entry options: bottom, side, or rear (rear recommended to maintain cable bend radius)

Downloads & Links

• Leviton AppNote QuickPort Surface Mount Housing Guidance
• Leviton 41089-xxP SurfaceMount QuickPort Box
• 41089-2xP
• Leviton QuickPort Surface Mount Housings IST
• 41089-2xP
