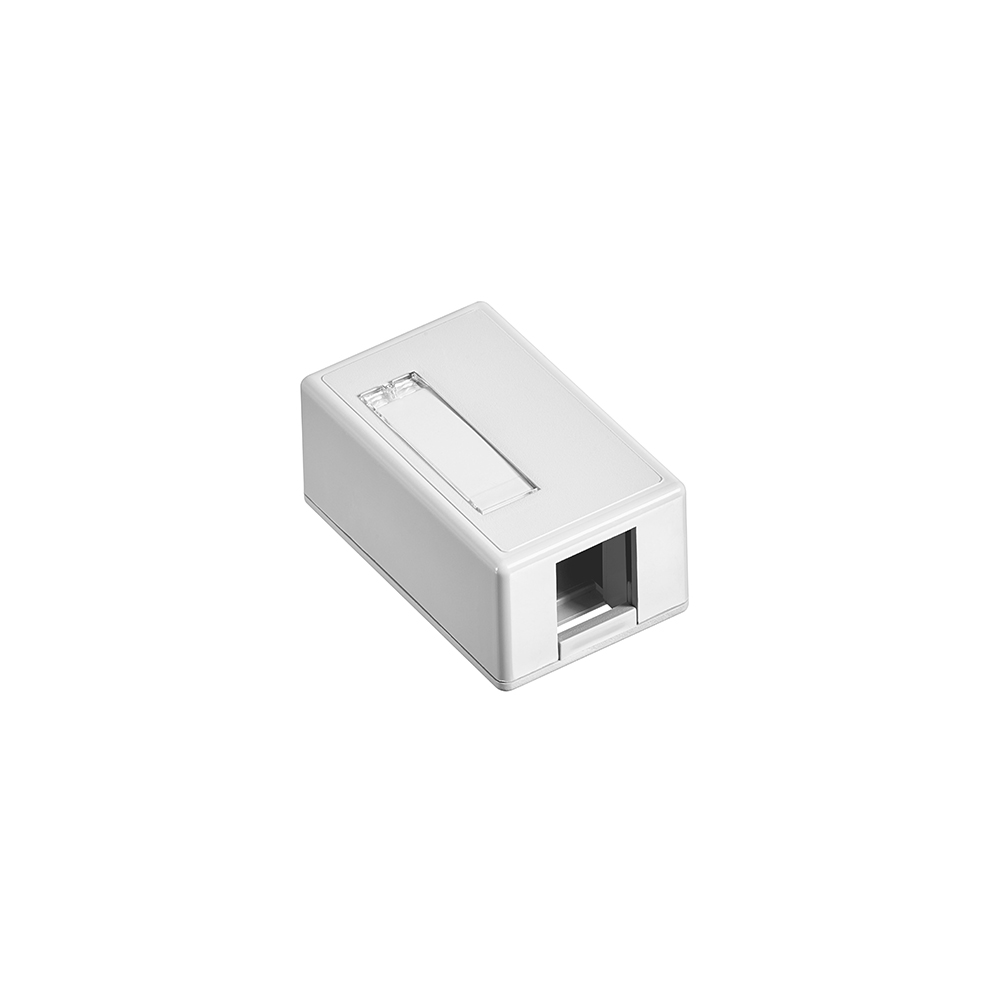

Surface-Mount QUICKPORT™ Box, Plenum Rated, 1-Port, White - Surface Mount Box

The Surface-Mount QUICKPORT™ Box is a compact, plenum-rated enclosure designed to accept one QUICKPORT snap-in connector. It supports voice and data applications in office, retrofit, or other surface-mount environments, making it suitable for electrical distributors and lighting solutions providers offering wire and cable management products or serving as a switchgear supplier. The box includes an ID window, mounting screws, and pressure-sensitive adhesive for versatile installation options.

Specifications

• Manufacturer Part #: 41089-1WP
• Product Weight: 1.81 lbs
• Color: White
• Material: High-impact, fire-retardant plastic rated UL 94V-0
• Mounting: Screws (included), pressure-sensitive adhesive (included)
• Plenum Rated: Yes (UL 2043 compliant for air-handling spaces)
• Country of Origin: Mexico
• Standards Compliance: ANSI/TIA-568-C, RoHS, cULus 1863, 2043

Features

• Accepts one QUICKPORT snap-in connector, compatible with all individual QUICKPORT modules
• User-provided cover screw option for additional security
• Includes an ID window for port identification
• Connector module can be pre-terminated before snapping into housing port
• Includes two self-tapping screws and pressure-sensitive adhesive for flexible mounting
• Suitable for installation in air-handling spaces (plenum rated)
• Bottom, side, or rear cable entry options, with rear entry recommended to meet cable bend radius standards

Downloads & Links

• Leviton AppNote QuickPort Surface Mount Housing Guidance
• Leviton 41089-xxP SurfaceMount QuickPort Box
• 41089-1xP
• Leviton QuickPort Surface Mount Housings IST
• 41089-1xP
