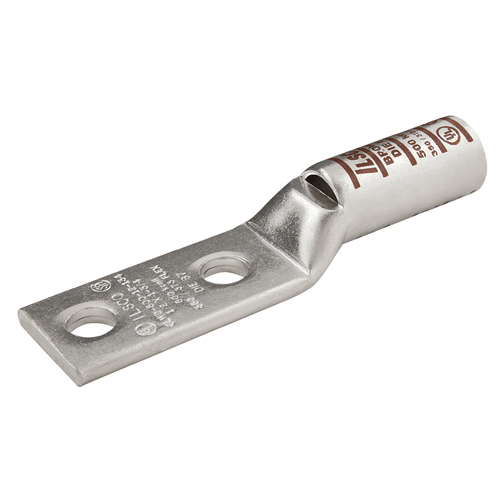

Specifications

• Height: 0.303 in | 7.6962 mm
• Length: 2.694 in | 68.4276 mm
• Weight: 0.0312309542308804 lbs
• Width: 0.491 in | 12.4714 mm

Additional Technical Specifications

• Conductor Type: Solid, Stranded, Flex

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: No
• Flared End: No
• ILSCOs Die Catalog Number: ILD-21
• ILSCOs Die Index Number: I-21
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 2
• Sight Window: Yes
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/4

Conductor Ranges

• Conductor Range CU Solid (Primary, run, main, line): 8 Sol
• Conductor Range CU Stranded (Primary, run, main, line): 8 Str
• Flex Conductor Range: 8 G,H,I,K,M,DLO

Environment and Temperature

• Temperature Rating: 90°C

Color

• Color: Silver
• Color Code: Red

Voltage

• Voltage Rating: 35 kV

Dimensions

• Barrel Length (IN): 0.812
• Barrel Length (mm): 20.6248
• Dimension G (IN): 0.321
• Dimension G (mm): 8.1534
• Height BX (IN): 2.25
• Height (mm): 7.6962
• Inside Diameter (IN): 0.179
• Inside Diameter (mm): 4.5466
• Length (mm): 68.4276
• Mounting Hole Diameter (IN): 0.281
• Mounting Hole Diameter (mm): 7.1374
• Mounting Hole Spacing (IN): 1
• Mounting Hole Spacing (mm): 25.4
• Outside Diameter (IN): 0.273
• Outside Diameter (mm): 6.9342
• Strip Length (mm): 22.1996
• Tang Length (IN): 1.687
• Tang Length (mm): 42.8498
• Tang Thickness (IN): 0.094
• Tang Thickness (mm): 2.3876
• Tang Width (IN): 0.491
• Tang Width (mm): 12.4714
• Weight BX (LB): 1.335
• Width BX (IN): 5
• Width (mm): 12.4714

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed, UL 467 Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 50
• Direct Burial: Yes
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366962815
