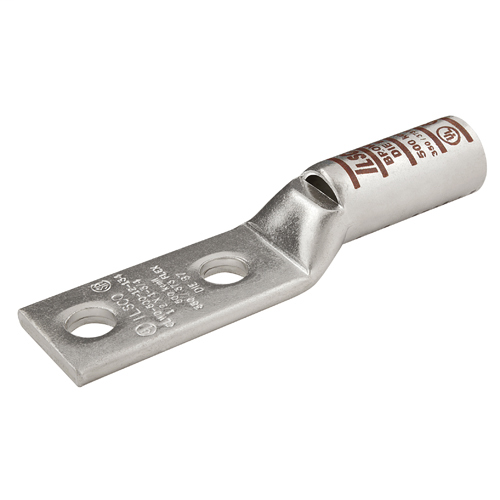

Specifications

• UPC Code: 78366968624
• UNSPSC Code: 39121448
• Dual Rated: FALSE
• Conductor Range CU Stranded (Primary, run, main, line): 750 kcmil
• Conductor Size CU (Primary, run, main, line): 750 kcmil
• Flex Conductor Range: 600 G,H,I,M 646.4 DLO
• Flex Conductor Size (Class G): 600 G
• Flex Conductor Size (Class H): 600 H
• Flex Conductor Size (Class I): 600 I
• Flex Conductor Size (Class M): 600 M
• Flex Conductor Size (Class DLO): 646.4 DLO
• Expanded Conductor Range: 750 kcmil - 500 kcmil
• Expanded Conductor Size: 750 kcmil,700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil
• Mounting Bolt/Stud Size: 3/8/2020
• Length (IN): 5.714
• Length (mm): 145.1356
• Width (IN): 1.313
• Width (mm): 33.3502
• Height (IN): 1.358
• Height (mm): 34.4932
• Weight (LB): 0.8338712
• Barrel Length (IN): 2.875
• Barrel Length (mm): 73.025
• Dimension G (IN): 0.414
• Dimension G (mm): 10.5156
• Inside Diameter (IN): 1.031
• Inside Diameter (mm): 26.1874
• Mounting Bolt/Stud Size (mm): 965.2
• Mounting Hole Diameter (IN): 0.406
• Mounting Hole Diameter (mm): 10.3124
• Mounting Hole Spacing (IN): 1
• Mounting Hole Spacing (mm): 25.4
• Outside Diameter (IN): 1.313
• Outside Diameter (mm): 33.3502
• Strip Length (mm): 74.6125
• Tang Length (IN): 1.937
• Tang Length (mm): 49.1998
• Tang Thickness (IN): 0.34
• Tang Thickness (mm): 8.636
• Tang Width (IN): 1.298
• Tang Width (mm): 32.9692
• Material: Copper
• Conductor Material: Copper
• Connector Finish: Tin
• Color: Silver
• Die Color Code: Black
• Direct Burial: FALSE
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• UL Control Number: 453G
• UL File Number: E6207
• UL / CULUS Specification: UL 486A/B Listed
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• Barrel Marking: Ink
• Barrel Type: Long
• Connection: Compression
• Connecting angle: 180°
• Conductor Type: Stranded,Flex
• Contains DE-OX: FALSE
• ILSCOs Die Catalog Number: ILD-106
• Flared End: FALSE
• Mounting Hole Type: Thru
• Narrow Tang: TRUE
• Number of Mounting Holes: 2
• Sight Window: TRUE
• Slotted: FALSE
• Tang End Shape: Square
• Undrilled: FALSE
• Bag Quantity: 1
• CrossSell: ILD-106, DE-OX-8OZ, TB-6DF1000-P
