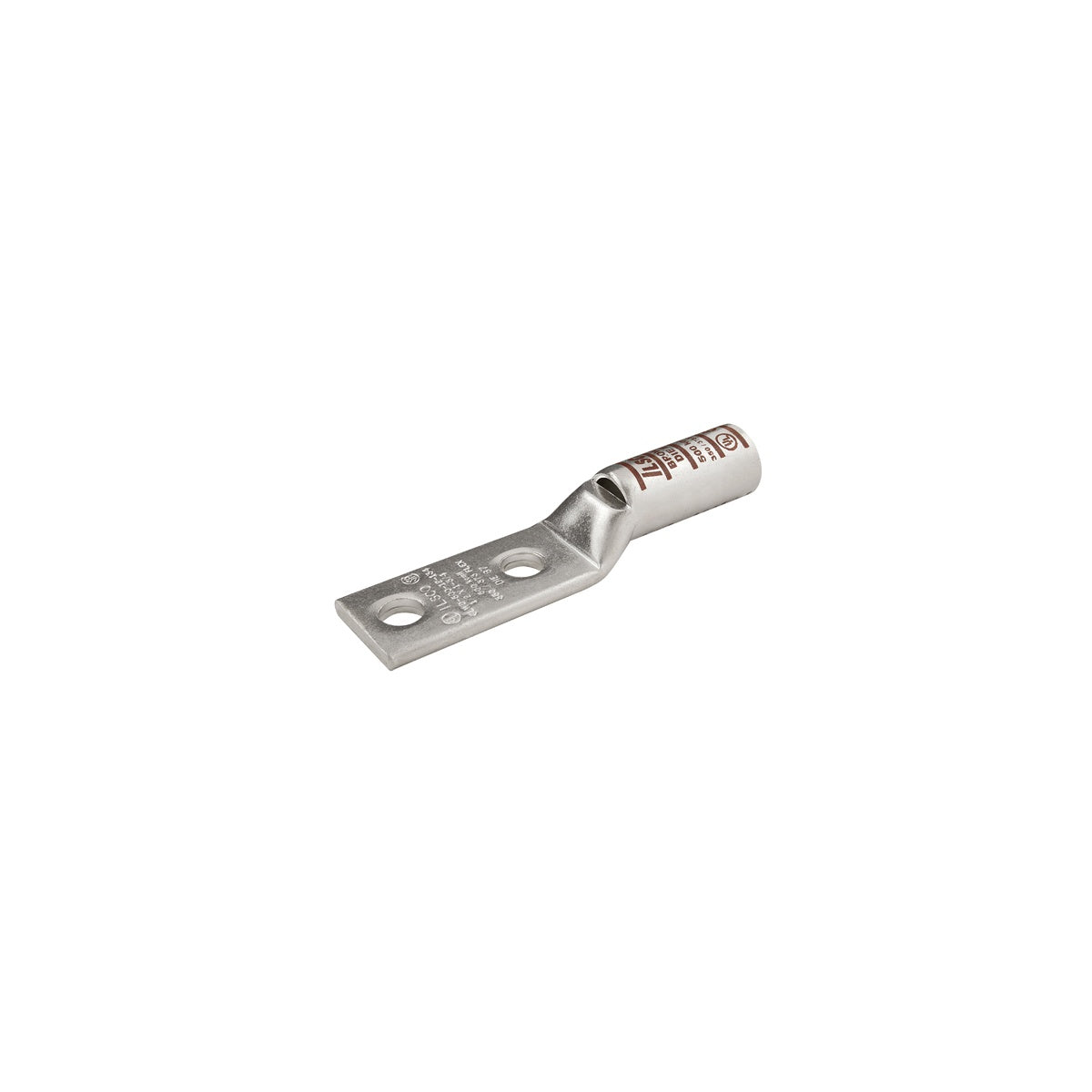

Description
Specifications
- UPC Code: 78366968600
- UNSPSC Code: 39121448
- Dual Rated: FALSE
- Conductor Range CU Stranded (Primary, run, main, line): 700 kcmil
- Conductor Size CU (Primary, run, main, line): 700 kcmil
- Flex Conductor Range: 500 G,H,I, K,M 535.3 DLO
- Flex Conductor Size (Class G): 500 G
- Flex Conductor Size (Class H): 500 H
- Flex Conductor Size (Class I): 500 I
- Flex Conductor Size (Class K): 500 K
- Flex Conductor Size (Class M): 500 M
- Flex Conductor Size (Class DLO): 535.3 DLO
- Expanded Conductor Range: 700 kcmil - 350 kcmil
- Expanded Conductor Size: 700 kcmil,650 kcmil,600 kcmil,550 kcmil,500 kcmil,450 kcmil,400 kcmil,350 kcmil
- Mounting Bolt/Stud Size: 3/8/2020
- Length (IN): 5.493
- Length (mm): 139.5222
- Width (IN): 1.25
- Width (mm): 31.75
- Height (IN): 1.295
- Height (mm): 32.893
- Weight (LB): 0.71416387
- Barrel Length (IN): 2.687
- Barrel Length (mm): 68.2498
- Dimension G (IN): 0.414
- Dimension G (mm): 10.5156
- Inside Diameter (IN): 0.991
- Inside Diameter (mm): 25.1714
- Mounting Bolt/Stud Size (mm): 965.2
- Mounting Hole Diameter (IN): 0.406
- Mounting Hole Diameter (mm): 10.3124
- Mounting Hole Spacing (IN): 1
- Mounting Hole Spacing (mm): 25.4
- Outside Diameter (IN): 1.25
- Outside Diameter (mm): 31.75
- Strip Length (mm): 69.8373
- Tang Length (IN): 1.937
- Tang Length (mm): 49.1998
- Tang Thickness (IN): 0.33
- Tang Thickness (mm): 8.382
- Tang Width (IN): 1.235
- Tang Width (mm): 31.369
- Material: Copper
- Conductor Material: Copper
- Connector Finish: Tin
- Color: Silver
- Die Color Code: Pink
- Direct Burial: FALSE
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- CSA File Number: LR-29601
- CSA Standard: C22.2 No. 65-03
- UL Control Number: 453G
- UL File Number: E6207
- UL / CULUS Specification: UL 486A/B Listed
- NEBS Rating: Level 3
- Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
- Barrel Marking: Ink
- Barrel Type: Long
- Connection: Compression
- Connecting angle: 180°
- Conductor Type: Stranded,Flex
- Contains DE-OX: FALSE
- ILSCOs Die Catalog Number: ILD-99
- Flared End: FALSE
- Mounting Hole Type: Thru
- Narrow Tang: TRUE
- Number of Mounting Holes: 2
- Sight Window: TRUE
- Slotted: FALSE
- Tang End Shape: Square
- Undrilled: FALSE
- Bag Quantity: 1
- CrossSell: ILD-99, DE-OX-8OZ, TB-6DF1000-P
Downloads
Catalog PageTechnical Drawing
