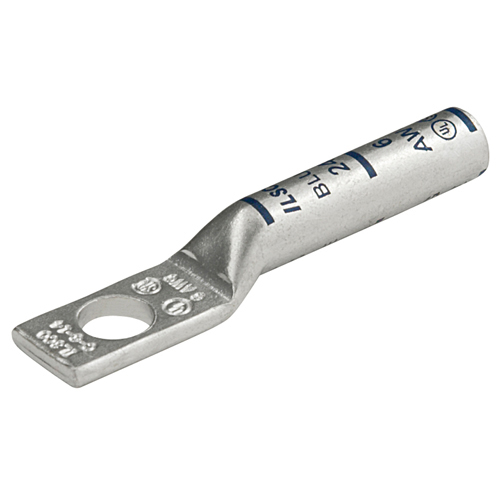

Specifications

• Height: 1.295 in | 32.893 mm
• Length: 4.806 in | 122.0724 mm
• Weight: 0.671283573357593 lbs
• Width: 1.816 in | 46.1264 mm

Additional Technical Specifications

• Conductor Type: Stranded, Flex

Additional Class Attributes

• Barrel Marking: Ink
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-99
• ILSCOs Die Index Number: I-99
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper
• Connector Finish: Tin
• Material: Copper

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Environment and Temperature

• Temperature Rating: 90°C

Conductor Ranges

• Conductor Range CU Stranded (Primary, run, main, line): 700 kcmil
• Expanded Conductor Range: 700 kcmil - 350 kcmil
• Flex Conductor Range: 500 G,H,I, K,M 535.3 DLO

Color

• Color: Silver
• Color Code: Pink

Voltage

• Voltage Rating: 35 kV

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• NEBS Rating: Level 3
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

Dimensions

• Barrel Length (IN): 2.687
• Barrel Length (mm): 68.2498
• Dimension G (IN): 0.546
• Dimension G (mm): 13.8684
• Height BX (IN): 2
• Height (mm): 32.893
• Inside Diameter (IN): 0.991
• Inside Diameter (mm): 25.1714
• Length (mm): 122.0724
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 1.25
• Outside Diameter (mm): 31.75
• Strip Length (mm): 69.8246
• Tang Length (IN): 1.25
• Tang Length (mm): 31.75
• Tang Thickness (IN): 0.259
• Tang Thickness (mm): 6.5786
• Tang Width (IN): 1.816
• Tang Width (mm): 46.1264
• Weight BX (LB): 4.256
• Width BX (IN): 6.1875
• Width (mm): 46.1264

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 6
• Direct Burial: No
• Dual Rated: No
• NEMA Code: S-588-3
• UPC Code: 78366964822
