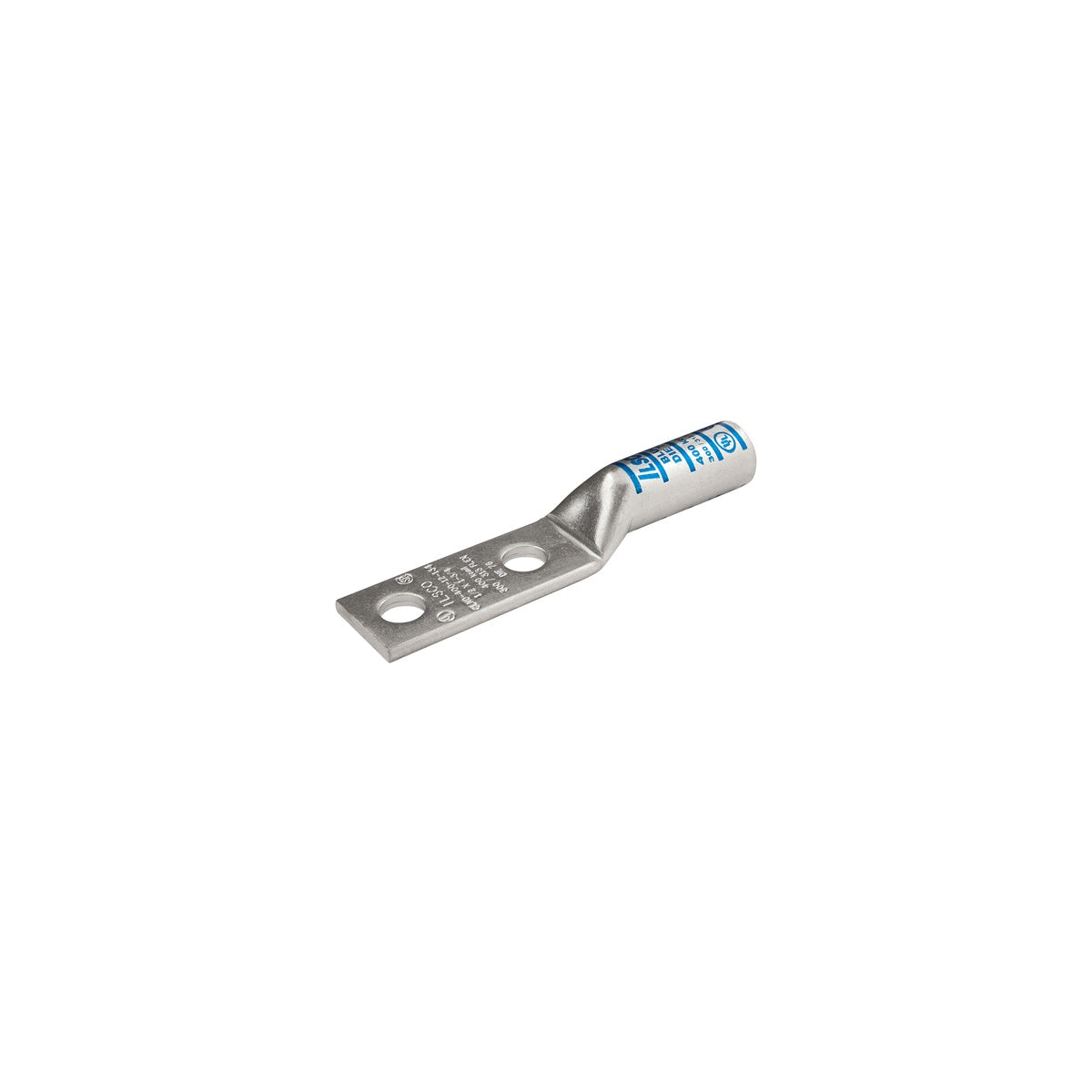

Surecrimp Copper Compression Lug, Conductor Size 4/0, 2 Holes, 5/16in Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #252370
Part: #CLND-4/0-516-34
UPC: 783669639988
Surecrimp Copper Compression Lug, Conductor Size 4/0, 2 Holes, 5/16in Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #252370
Part: #CLND-4/0-516-34
UPC: 783669639988
Description
Surecrimp Copper Compression Lug, Conductor Size 4/0 – Copper Compression Lug
The Surecrimp Copper Compression Lug by ILSCO is designed for reliable electrical connections in wire and cable installations. This lug is suitable for use by electrical distributors and switchgear suppliers requiring high-quality copper connectors for grounding and bonding applications. It supports conductor sizes up to 4/0 AWG with a long barrel and tin-plated finish, ensuring excellent conductivity and corrosion resistance in lighting solutions and electrical distribution systems.
Specifications
- Conductor Size: 4/0 AWG
- Mounting Holes: 2
- Mounting Bolt Size: 5/16 inch
- Mounting Hole Spacing: 0.75 inch
- Material: Copper
- Plating: Tin plated (Electro-Tin)
- Dimensions (L×W×H): 3.678 in × 0.999 in × 0.687 in
- Product Weight: 0.1570 lbs
- UL Listings: UL 486A/B, UL 467
- CSA Certification: C22.2 No. 65-03
- Rated Voltage: Suitable for circuits up to 35 kV
- Connecting Angle: 180°
- Die Color Code: Purple
- Die Index: I-54
- Primary Conductor: 4/0 Stranded
- Flex Conductor Range: 3/0 G,H,I,K,M,DLO
Features
- Manufactured from high-strength seamless copper tubing
- Electro-tin plated for corrosion resistance
- Long barrel design for secure conductor insertion
- Square tang end with standard tang configuration
- No sight window for conductor inspection
- Color-coded for easy die identification
- Compatible with ILSCO and major competitor compression tools
- Rated for 90°C operating temperature
- UL Listed and CSA Certified for grounding and bonding
