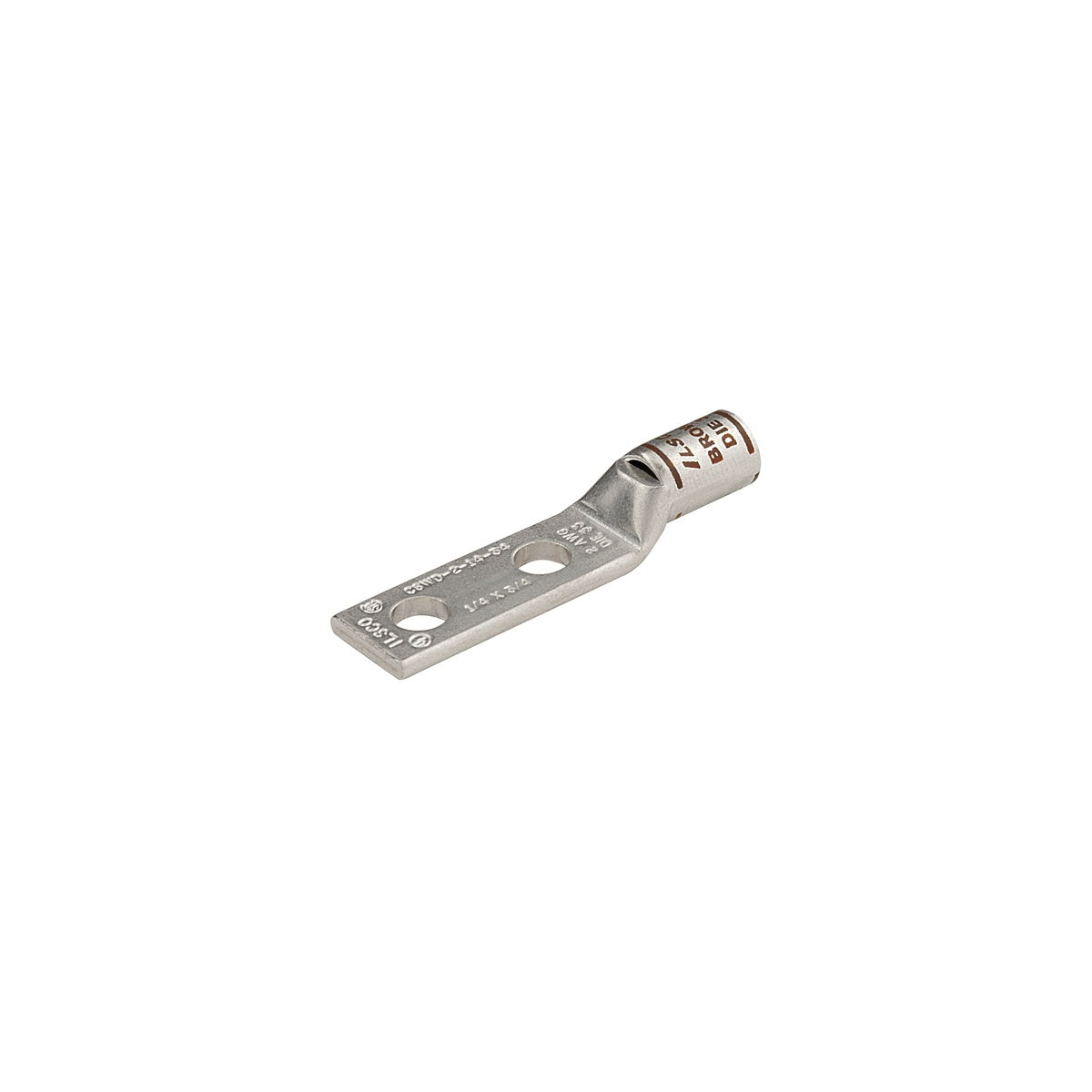

Surecrimp Copper Compression Lug, Conductor Size 4/0, 2 Holes, 5/16in Bolt Size, 1-3/4in Hole Spacing, Standard Barrel, Sight Window, Tin Plated, UL, CSA
SKU: #255041
Part: #CSWD-4/0-516-134
UPC: 783669640137
Surecrimp Copper Compression Lug, Conductor Size 4/0, 2 Holes, 5/16in Bolt Size, 1-3/4in Hole Spacing, Standard Barrel, Sight Window, Tin Plated, UL, CSA
SKU: #255041
Part: #CSWD-4/0-516-134
UPC: 783669640137
Description
Surecrimp Copper Compression Lug, Copper Conductor Connector
This Surecrimp Copper Compression Lug is designed for secure electrical connections in wire and cable installations. Manufactured by ILSCO, it serves as a reliable component for electrical distributors and switchgear suppliers requiring high-quality copper lugs. The lug features a tin-plated copper body with a standard barrel and tang, suitable for 4/0 copper primary conductors and rated for 35 kV applications. Its design includes a sight window for inspection and is UL 486A/B and UL 467 listed, as well as CSA certified, ensuring compliance with industry safety standards.
Specifications
- Conductor Size: 4/0
- Material: Copper
- Plating: Tin
- Mounting Holes: 2
- Mounting Bolt/Stud Size: 5/16 in
- Mounting Hole Spacing: 1.75 in
- Length: 3.866 in
- Width: 0.999 in
- Height: 0.687 in
- Rated Voltage: 35 kV
- UL Listings: UL 486A/B, UL 467
- CSA Certification: C22.2 No. 65-03
- Die Color Code: Purple
- Die Index: I-54
- Product Weight: 0.1650 lbs
Features
- Standard barrel and tang design with square tang end
- Sight window for conductor inspection
- Tin-plated copper connector for corrosion resistance
- Compatible with flex conductor range 3/0 G, H, I, K, M, DLO
- 180° connecting angle for versatile installation
