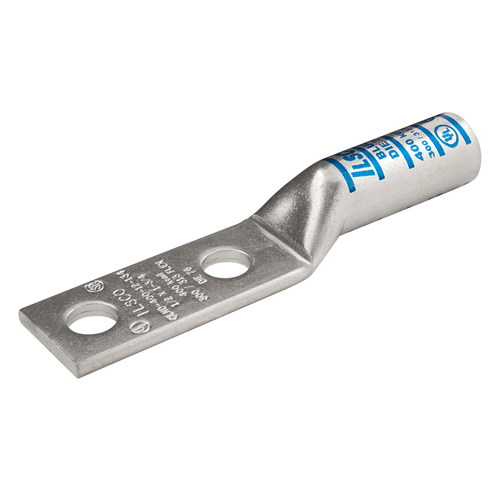

Surecrimp Copper Compression Lug, 4/0 Conductor Size - Electrical Connector

The Surecrimp Copper Compression Lug by ILSCO is designed for reliable electrical connections in wire and cable terminations. This lug is suited for use by electrical distributors and switchgear suppliers requiring high-quality copper connectors for flexible conductors. It features a long barrel and compression connection type, making it ideal for secure, durable electrical installations in lighting solutions and other electrical distribution systems.

Specifications

• Manufacturer Part #: CLND-4/0-14-58
• Conductor Size: 4/0 Stranded Copper
• Conductor Type: Flex
• Material: Copper
• Connector Finish: Tin Plated
• Color: Silver
• Color Coding: Purple
• Connection Type: Compression
• Number of Holes: 2
• Mounting Hole Size: 0.281 inches
• Mounting Hole Spacing: 0.625 inches (5/8 inch)
• Bolt Size: 1/4 inch
• Barrel Type: Long
• Barrel Length: 1.5 inches
• Inside Diameter: 0.546 inches
• Outside Diameter: 0.687 inches
• Length: 3.428 inches
• Width: 0.999 inches
• Height: 0.727 inches
• Direct Burial: Yes
• Temperature Rating: 90°C
• Voltage Rating: 35 kV
• UL / CULUS Specification: UL 486A/B Listed
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: Yes (no known chemicals)
• Carton Quantity: 10
• Product Weight: 0.1626 lb

Features

• UL and CSA certified for safety and compliance
• Tin plated copper construction for corrosion resistance
• Long barrel design for secure conductor insertion
• Compression connection ensures reliable electrical contact
• Designed for flexible copper conductors
• Direct burial rated for underground applications
• Color-coded purple ink marking for easy identification
• No sight window for enhanced mechanical strength
