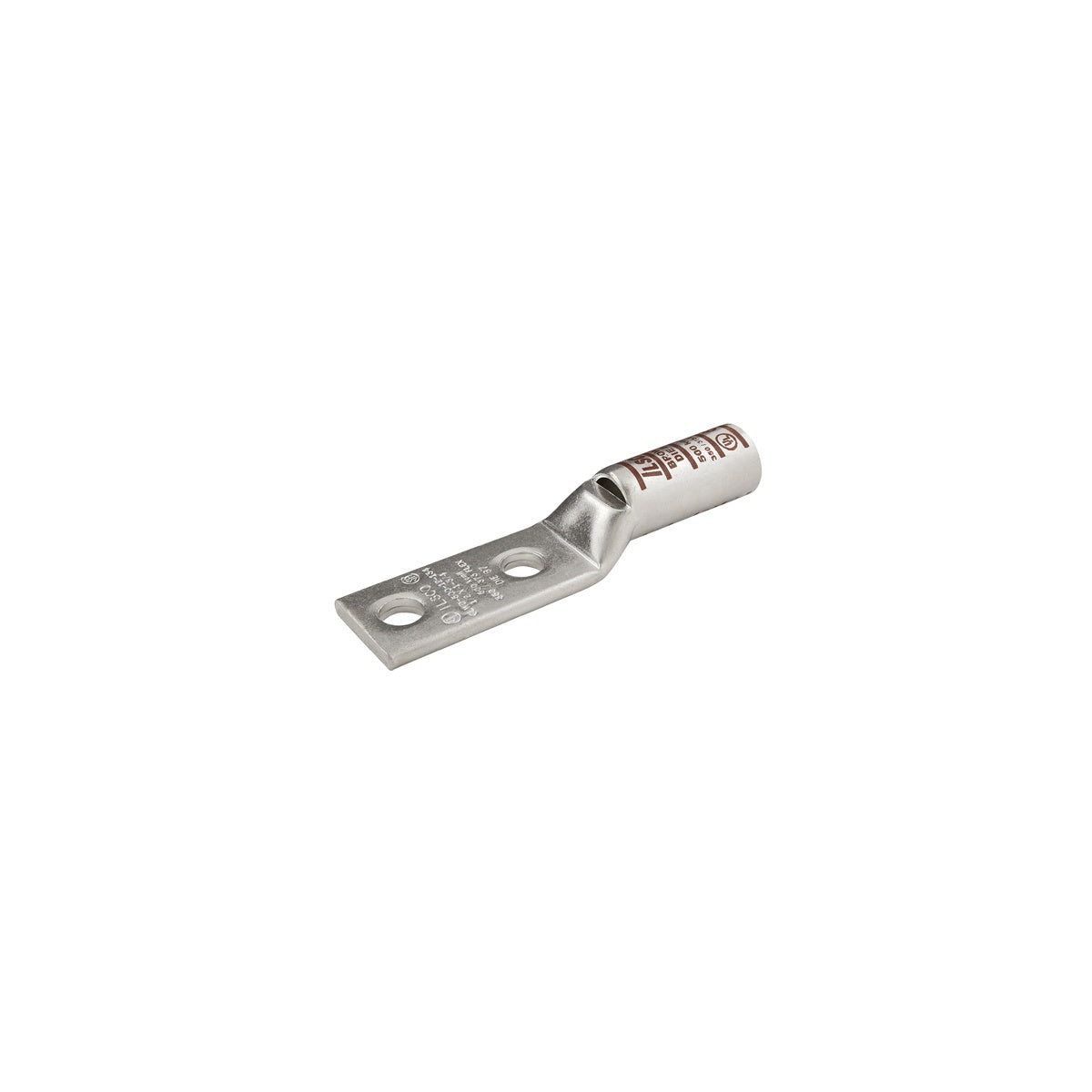

Surecrimp Copper Compression Lug, Conductor Size 4/0, 2 Holes, 1/2in Bolt Size, 1in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
SKU: #253363
Part: #CLWD-4/0-12-1
UPC: 783669640434
Surecrimp Copper Compression Lug, Conductor Size 4/0, 2 Holes, 1/2in Bolt Size, 1in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
SKU: #253363
Part: #CLWD-4/0-12-1
UPC: 783669640434
Description
Surecrimp Copper Compression Lug, Conductor Size 4/0, Tin Plated – Copper Compression Lug
The Surecrimp Copper Compression Lug by ILSCO is designed for secure and reliable electrical connections in wire and cable applications. This lug features a long barrel and tin-plated copper construction to ensure maximum conductivity and corrosion resistance. It is suitable for use by electrical distributors and switchgear suppliers requiring UL and CSA certified components for grounding and bonding in circuits rated up to 35 kV. The lug includes a sight window for easy conductor insertion and is color-coded for die identification, supporting efficient installation in lighting solutions and industrial electrical systems.
Specifications
- Conductor Size: 4/0 AWG
- Material: Copper
- Plating: Electro-Tin
- Mounting Holes: 2
- Mounting Bolt/Stud Size: 1/2 in
- Mounting Hole Spacing: 1 in
- Length: 4.116 in
- Width: 0.999 in
- Height: 0.687 in
- UL Listings: UL 486A/B, UL 467
- CSA Certification: C22.2 No. 65-03
- Rated Voltage: 35 kV
- Die Color Code: Purple
- Die Index: I-54
- Product Weight: 0.1690 lbs
Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plated for corrosion resistance
- Long barrel design with standard square tang end
- Sight window for easy conductor insertion
- Color-coded die index for proper compression tool identification
- UL Listed and CSA Certified for grounding and bonding applications
- Rated for use in circuits up to 35 kV with appropriate insulation
- Compatible with ILSCO and major competitor compression tools
