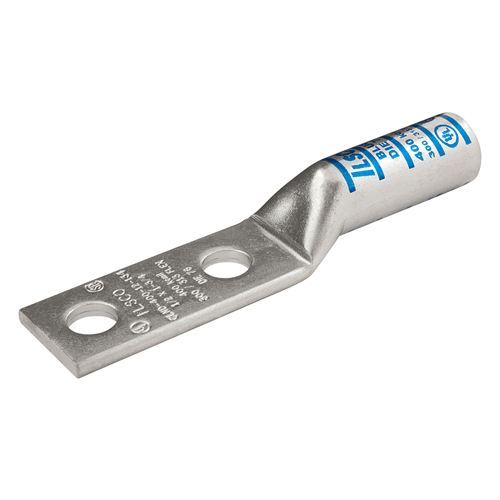

Surecrimp Copper Compression Lug, Conductor Size 350, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #252214
Part: #CLND-350-38-134
UPC: 783669643701
Surecrimp Copper Compression Lug, Conductor Size 350, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #252214
Part: #CLND-350-38-134
UPC: 783669643701
Next day delivery
Description
Surecrimp Copper Compression Lug, Conductor Size 350 – Copper Compression Lug
This Surecrimp Copper Compression Lug by ILSCO is designed for secure electrical connections in wire and cable applications. It features a long barrel and compression connection type, suitable for stranded copper conductors sized 350 kcmil. Ideal for electrical distributors and switchgear suppliers, this lug supports direct burial installations and complies with UL and CSA standards, ensuring reliable performance in lighting solutions and electrical distribution systems.
Specifications
- Conductor Size: 350 kcmil
- Number of Holes: 2
- Bolt Size: 3/8 inch
- Hole Spacing: 1-3/4 inch
- Barrel Type: Long
- Barrel Length: 2 inches
- Conductor Type: Stranded (Flex)
- Connection Type: Compression
- Inside Diameter: 0.703 inches
- Outside Diameter: 0.89 inches
- Mounting Hole Size: 0.406 inches
- Material: Copper
- Connector Finish: Tin Plated
- Color: Silver
- Color Coding: Red
- Length: 5.248 inches
- Width: 1.291 inches
- Height: 0.93 inches
- Product Weight: 0.4023 lb
- Direct Burial: Yes
- UL / CULUS Specification: UL 486A/B Listed
- CSA Standard: C22.2 No. 65-03
- Temperature Rating: 90°C
- Voltage Rating: 35 kV
- Manufacturer Part #: CLND-350-38-134
Features
- Long barrel design for secure conductor insertion
- Tin-plated copper construction for corrosion resistance
- UL and CSA certified for safety and compliance
- Red color coding for easy identification
- Two-hole mounting for stable and reliable connections
- Suitable for direct burial applications
- Ink barrel marking for traceability
