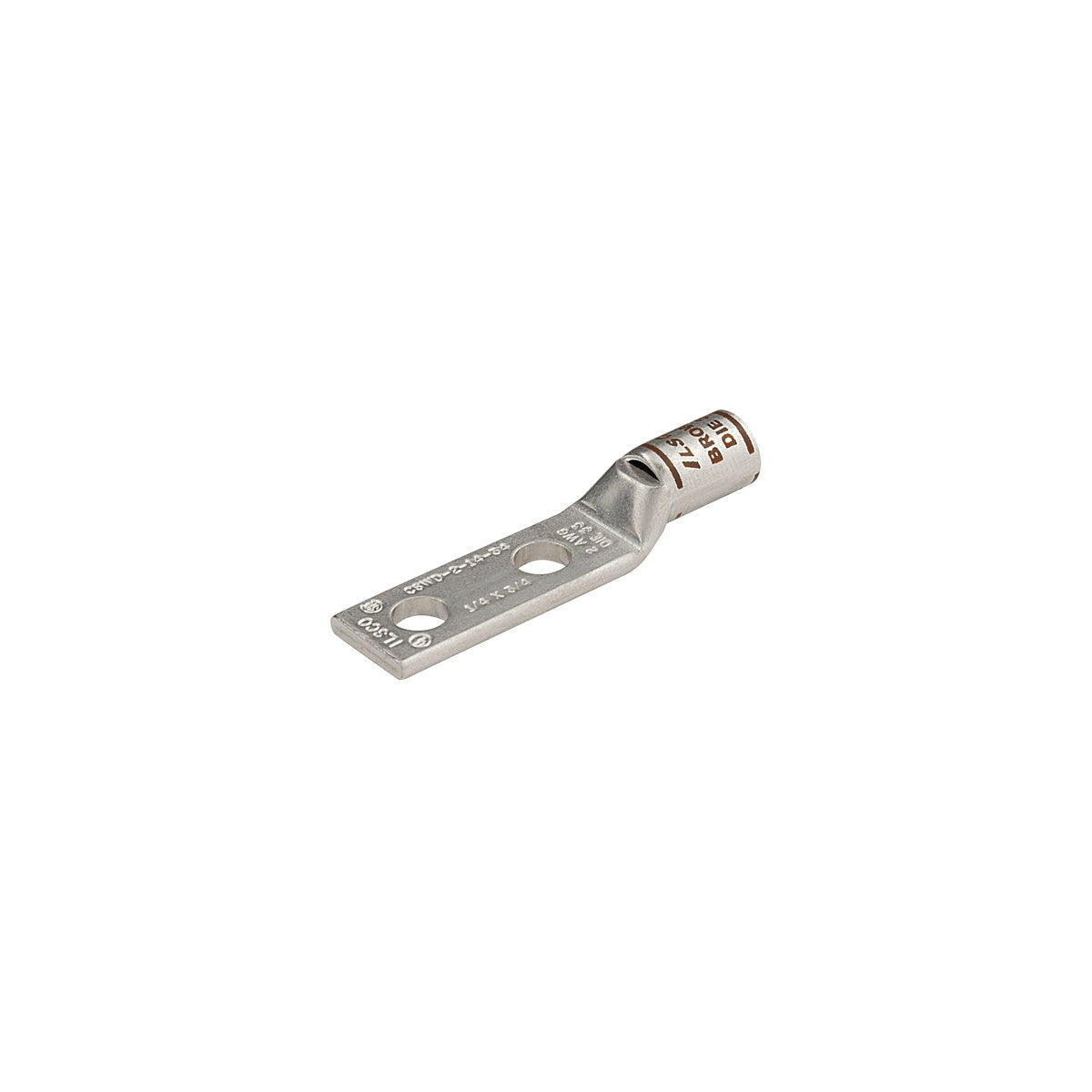

Surecrimp Copper Compression Lug, Conductor Size 350, 2 Holes, 1/4in Bolt Size, 3/4in Hole Spacing, Standard Barrel, Sight Window, Tin Plated, UL, CSA
SKU: #254820
Part: #CSWD-350-14-34
UPC: 783669643251
Surecrimp Copper Compression Lug, Conductor Size 350, 2 Holes, 1/4in Bolt Size, 3/4in Hole Spacing, Standard Barrel, Sight Window, Tin Plated, UL, CSA
SKU: #254820
Part: #CSWD-350-14-34
UPC: 783669643251
Description
Surecrimp Copper Compression Lug, Conductor Size 350 – Copper Compression Lug
The Surecrimp Copper Compression Lug is designed for secure and reliable electrical connections in wire and cable applications. Manufactured by ILSCO, this lug is suitable for use by electrical distributors and switchgear suppliers requiring high-quality grounding and bonding solutions. It supports a primary conductor size of 350 kcmil and is rated for circuits up to 35 kV, making it applicable in lighting solutions and other electrical distribution systems.
Specifications
- Material: Copper
- Plating: Electro-Tin Plated
- Conductor Size: 350 kcmil
- Mounting Holes: 2
- Mounting Bolt/Stud Size: 1/4 in
- Mounting Hole Spacing: 0.75 in
- Dimensions (L x W x H): 3.123 in x 1.2913 in x 0.89 in
- Connecting Angle: 180°
- Die Color Code: Red
- UL Listings: UL 486A/B, UL 467
- CSA Certification: C22.2 No. 65-03
- Rated Voltage: 35 kV
- Product Weight: 0.2310 lbs
- Die Index: I-71
Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plating for corrosion resistance
- Standard barrel with sight window for easy conductor insertion
- Square tang end for secure mounting
- Color coded die index for proper compression tool identification
- UL Listed and CSA Certified for safety and reliability
- Suitable for grounding and bonding applications
- Compatible with ILSCO and major competitor’s compression tools
- Rated for 90°C operation
