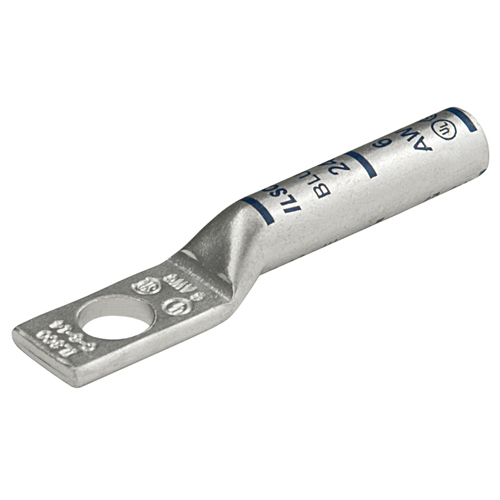

Surecrimp Copper Compression Lug, Conductor Size 350, 1 Hole, 5/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #252854
Part: #CLNS-350-58
UPC: 783669643022
Surecrimp Copper Compression Lug, Conductor Size 350, 1 Hole, 5/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #252854
Part: #CLNS-350-58
UPC: 783669643022
Next day delivery
Description
Surecrimp Copper Compression Lug, Conductor Size 350 – Copper Compression Lug
This Surecrimp Copper Compression Lug is designed for reliable electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable, UL and CSA certified copper compression connectors. The lug is intended for flexible copper conductors and supports direct burial installations, making it appropriate for lighting solutions and electrical distribution systems.
Specifications
- Conductor Size: 350 kcmil
- Number of Holes: 1
- Bolt Size: 5/8 inch
- Barrel Type: Long
- Barrel Length: 2 inches
- Material: Copper
- Conductor Material: Copper
- Connection Type: Compression
- Conductor Type: Flexible
- Inside Diameter: 0.703 inches
- Outside Diameter: 0.89 inches
- Mounting Hole Size: 0.656 inches
- Color: Silver
- Color Coding: Red
- Length: 4.06 inches
- Width: 1.291 inches
- Height: 0.93 inches
- Product Weight: 0.3755 lbs
- Direct Burial: Yes
- Manufacturer: ILSCO
- Manufacturer Part Number: CLNS-350-58
- Carton Quantity: 10
Features
- Tin plated for corrosion resistance
- UL and CSA certified for grounding and bonding applications
- Long barrel design for secure conductor insertion and crimping
- Suitable for use with flexible copper conductors
- Color-coded red for easy identification of conductor size
- Compatible with hydraulic and manual compression tools as per ILSCO guidelines
- Designed for direct burial applications
