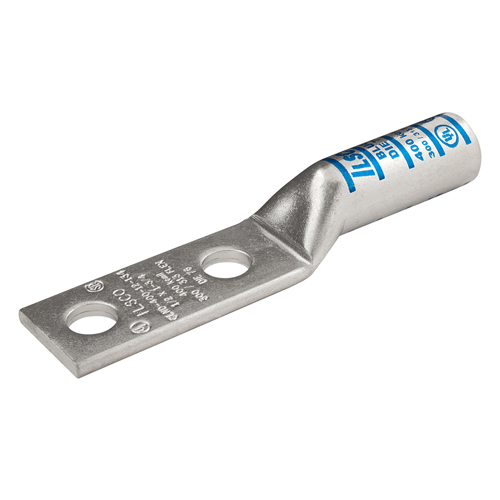

Surecrimp Copper Compression Lug, Conductor Size 3 – Copper Wire and Cable Connector

This Surecrimp Copper Compression Lug by ILSCO is designed for secure electrical connections in wire and cable applications. It is suitable for use with flexible copper conductors and is commonly utilized by electrical distributors and switchgear suppliers for reliable terminations. The lug features a long barrel for enhanced conductor insertion and compression connection type for durable mechanical and electrical performance. It is UL and CSA certified and rated for direct burial, making it appropriate for various lighting solutions and electrical installations.

Specifications

• Manufacturer: ILSCO
• Material: Copper
• Connector Finish: Tin Plated
• Conductor Size: 3 AWG
• Conductor Type: Flex
• Connection Type: Compression
• Number of Mounting Holes: 2
• Mounting Hole Size: 0.281 inches
• Mounting Hole Spacing: 0.625 inches (5/8in)
• Bolt Size: 1/4 inch
• Barrel Type: Long
• Barrel Length: 1.125 inches
• Inside Diameter: 0.275 inches
• Outside Diameter: 0.375 inches
• Length: 2.817 inches
• Width: 0.532 inches
• Height: 0.405 inches
• Color: Silver
• Direct Burial: Yes
• Temperature Rating: 90¬∞C
• Voltage Rating: 35 kV
• UL / CULUS Listing: UL 467 Listed, File Number E6207
• CSA Standard: C22.2 No. 65-03, File Number LR-29601
• Prop65 Compliant
• Carton Quantity: 25

Features

• Tin-plated copper lug for corrosion resistance and enhanced conductivity
• Long barrel design facilitates secure conductor insertion and crimping
• Compression connection ensures reliable electrical and mechanical performance
• Two mounting holes provide stable and secure attachment
• Suitable for flexible copper conductors in various electrical distribution and lighting applications
• UL and CSA certified for safety and performance compliance
• Rated for direct burial, supporting underground electrical installations

Downloads & Links

• CLND-3 Double Mounting Hole technical drawing
• Spec Sheet
• Form 157
