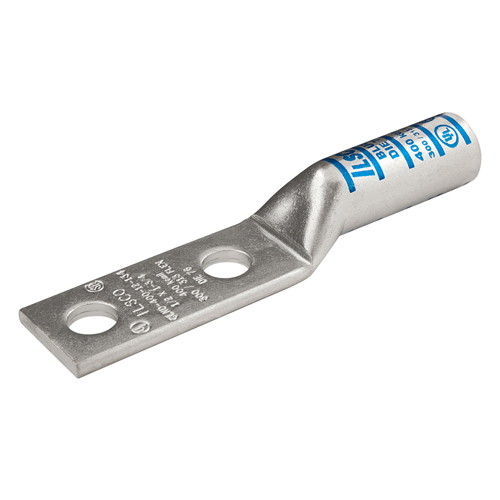

Surecrimp Copper Compression Lug, Conductor Size 3 – Electrical Connector

The Surecrimp Copper Compression Lug by ILSCO is designed for reliable electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring durable, tin-plated copper lugs for stranded copper conductors. This lug supports compression connections and is rated for direct burial, making it appropriate for various lighting solutions and electrical installations.

Specifications

• Manufacturer Part #: CLND-3-14-34
• Material: Copper
• Connector Finish: Tin Plated
• Conductor Material: Copper
• Conductor Type: Stranded (Flex)
• Conductor Size Range: 3 Stranded Copper
• Connection Type: Compression
• Number of Holes: 2
• Mounting Hole Size: 0.281 inches
• Mounting Hole Spacing: 0.75 inches
• Barrel Type: Long
• Barrel Length: 1.125 inches
• Inside Diameter: 0.275 inches
• Outside Diameter: 0.375 inches
• Length: 2.817 inches
• Width: 0.532 inches
• Height: 0.405 inches
• Color: Silver
• Direct Burial: Yes
• Mounting Bolt/Stud Size: 1/4 inch
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• UL Listed: UL 467
• CSA Certified: CSA C22.2 No. 65-03
• ROHS Compliant
• Prop65 Compliant
• Carton Quantity: 25

Features

• Tin-plated copper construction for corrosion resistance and conductivity
• Long barrel design for secure conductor insertion and crimping
• Compression connection type ensures reliable electrical contact
• Two mounting holes with 3/4 inch spacing to accommodate 1/4 inch bolts
• Suitable for direct burial applications
• UL and CSA certifications ensure compliance with electrical safety standards
• Designed for stranded copper conductors, supporting flexible wiring applications
• Silver color finish for easy identification
• Ink barrel marking for traceability
