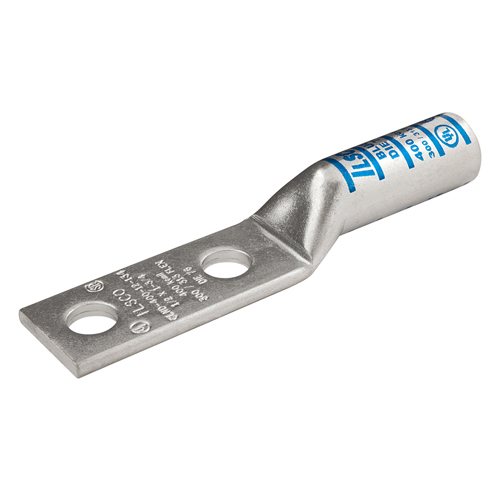

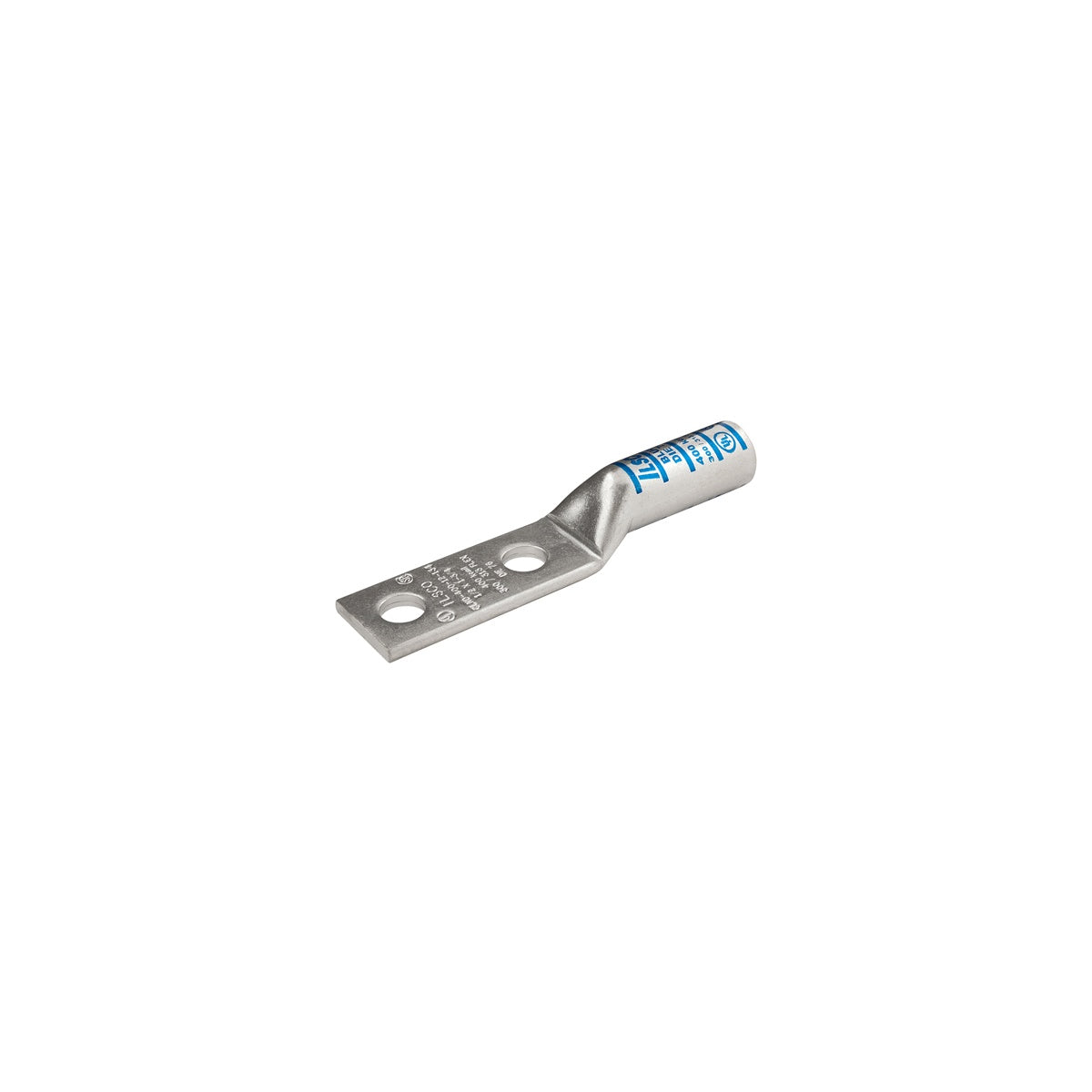

Surecrimp Copper Compression Lug, Conductor Size 2, 2 Holes, #10 Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #251920
Part: #CLND-2-10-34
UPC: 783669633344
Surecrimp Copper Compression Lug, Conductor Size 2, 2 Holes, #10 Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #251920
Part: #CLND-2-10-34
UPC: 783669633344
Description
Surecrimp Copper Compression Lug, Conductor Size 2 – Copper Compression Lug
The Surecrimp Copper Compression Lug by ILSCO is designed for secure and reliable electrical connections in wire and cable applications. This copper compression lug features a long barrel and tin-plated copper construction, suitable for use in circuits rated up to 35 kV. It is UL 486A/B and UL 467 listed, as well as CSA certified, making it an ideal component for electrical distributors and switchgear suppliers requiring certified grounding and bonding solutions.
Specifications
- Conductor Size: 2 AWG
- Mounting Holes: 2
- Mounting Bolt/Stud Size: #10
- Mounting Hole Spacing: 0.75 in
- Length: 2.848 in
- Width: 0.5991 in
- Height: 0.421 in
- Material: Copper
- Plating: Tin
- UL Listings: UL 486A/B, UL 467
- CSA Certification: C22.2 No. 65-03
- Rated Voltage: 35 kV
- Die Color Code: Brown
- Die Index: I-33
- Product Weight: 0.0560 lbs
Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plated for corrosion resistance
- Long barrel design for secure conductor insertion
- Standard square tang with two mounting holes for reliable attachment
- No sight window to maintain mechanical integrity
- Color-coded die index for easy identification
- Suitable for grounding and bonding applications
- Compatible with ILSCO and major competitor’s compression tools
- Rated for 90°C operation
