Surecrimp Copper Compression Lug, Conductor Size 2/0 – Copper Compression Lug

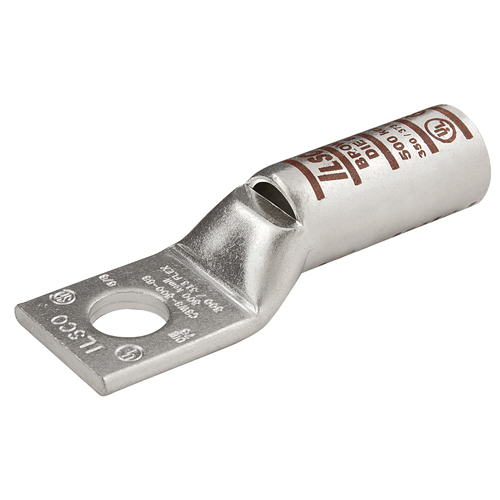

This Surecrimp copper compression lug is designed for use with flexible copper conductors sized 2/0. It provides a reliable compression connection for electrical distribution, lighting solutions, wire and cable installations, and switchgear applications. The lug features a long barrel with a sight window for proper conductor insertion and is suitable for direct burial installations. It is UL 486A/B listed and CSA certified, ensuring compliance with industry standards.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part #: CLWS-2/0-38
• Conductor Size: 2/0 Stranded Copper
• Conductor Type: Flexible
• Connection Type: Compression
• Material: Copper
• Connector Finish: Tin Plated
• Color: Silver
• Color Coding: Black
• Number of Holes: 1
• Mounting Hole Size: 0.406 inches
• Bolt/Stud Size: 3/8 inch
• Barrel Type: Long
• Barrel Length: 1.5 inches
• Inside Diameter: 0.437 inches
• Outside Diameter: 0.562 inches
• Length: 2.771 inches
• Width: 0.811 inches
• Height: 0.597 inches
• Direct Burial: Yes
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• UL / CULUS Specification: UL 486A/B Listed
• CSA Standard: C22.2 No. 65-03
• CSA File Number: LR-29601
• NEBS Rating: Level 3
• Prop65 Compliance: Compliant, not known to contain chemicals associated with regulation
• Carton Quantity: 10

Features

• Sight window for visual confirmation of conductor insertion
• Tin plating enhances corrosion resistance
• Long barrel design for secure conductor retention
• Single hole with 3/8 inch bolt size for versatile mounting
• Suitable for direct burial applications
• UL and CSA certified for safety and reliability
• Ink barrel marking for easy identification
