Surecrimp Copper Compression Lug, Conductor Size 1000 – Copper Compression Lug

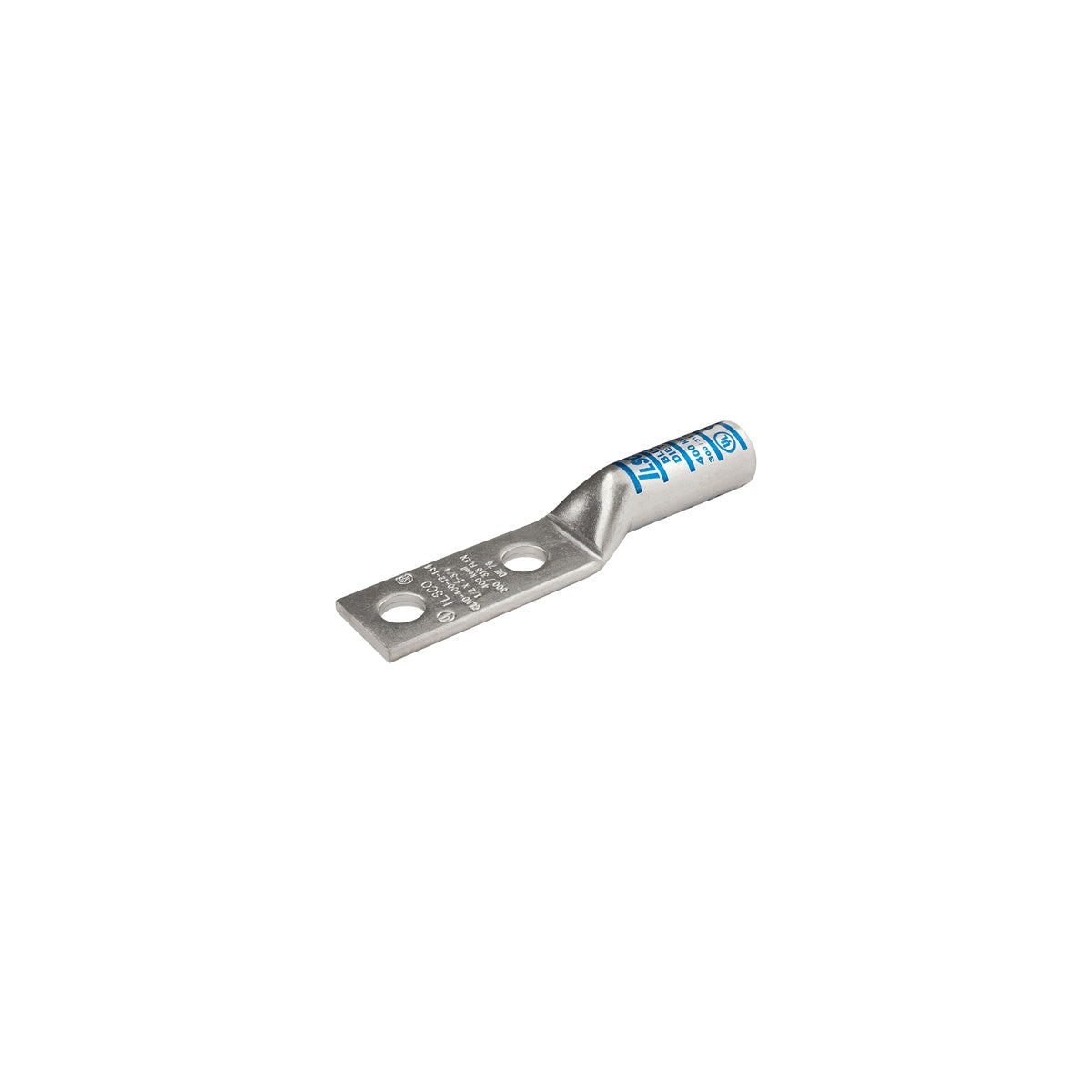

The Surecrimp Copper Compression Lug by ILSCO is designed for reliable electrical connections in wire and cable installations. This copper lug features a long barrel and tin plating for enhanced conductivity and corrosion resistance. It is suitable for use in electrical distribution, lighting solutions, and switchgear applications requiring secure compression connections for conductors up to 1000 kcmil. The lug is UL 486A/B Listed and CSA Certified, rated for circuits up to 35 kV, making it appropriate for heavy-duty electrical systems.

Specifications

• Material: Copper
• Plating: Electro-Tin
• Conductor Size: 1000 kcmil
• Mounting Holes: 2
• Mounting Bolt/Stud Size: 5/8 in
• Mounting Hole Spacing: 1.5 in
• Dimensions (L x W x H): 7.025 in x 2.169 in x 1.5 in
• Rated Voltage: 35 kV
• UL Listing: UL 486A/B
• CSA Certification: C22.2 No. 65-03
• Die Color Code: White
• Die Index: I-125
• Weight: 1.53 lbs
• Connecting Angle: 180¬∞
• Tang Type: Square tang end, standard tang
• Sight Window: None

Features

• Manufactured from high-strength seamless copper tubing
• Electro-tin plated for corrosion resistance and improved conductivity
• Long barrel design for secure conductor insertion
• Color-coded die index for easy identification and proper compression tool matching
• UL Listed and CSA Certified for use with ILSCO and major competitor compression tools
• Suitable for use in circuits rated up to 35 kV with proper insulation techniques
• Two mounting holes with 5/8 inch bolt size for secure attachment
