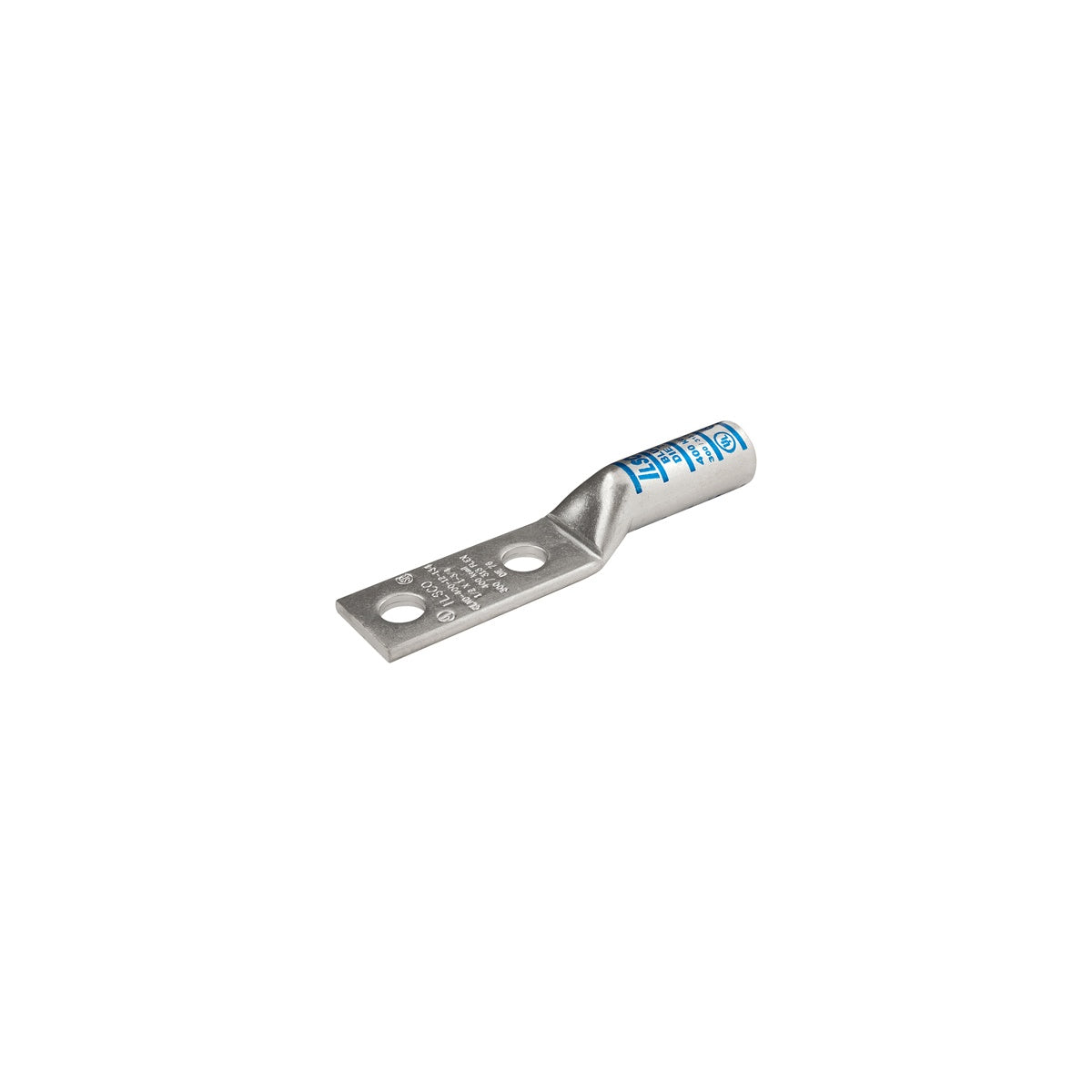

Surecrimp Copper Compression Lug, Conductor Size 1, 2 Holes, 1/4in Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #251716
Part: #CLND-1-14-34
UPC: 783669634822
Surecrimp Copper Compression Lug, Conductor Size 1, 2 Holes, 1/4in Bolt Size, 3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #251716
Part: #CLND-1-14-34
UPC: 783669634822
Description
Surecrimp Copper Compression Lug, Conductor Size 1 – Copper Compression Lug
This Surecrimp Copper Compression Lug by ILSCO is designed for reliable electrical connections in wire and cable applications. It is suitable for use by electrical distributors and switchgear suppliers requiring high-quality grounding and bonding solutions. The lug features a long barrel and tin-plated copper construction, ensuring maximum conductivity and durability in lighting solutions and electrical distribution systems. It is UL 486A/B and UL 467 listed and CSA certified, rated for circuits up to 35 kV when proper insulation and spacing are applied.
Specifications
- Conductor Size: 1 AWG
- Mounting Holes: 2
- Mounting Bolt/Stud Size: 1/4 in
- Mounting Hole Spacing: 0.75 in
- Length: 3.142 in
- Width: 0.6729 in
- Height: 0.468 in
- Material: Copper
- Finish: Tin plated
- UL Listings: UL 486A/B, UL 467
- CSA Certification: C22.2 No. 65-03
- Die Color Code: Green
- Rated Voltage: 35 kV
- Connecting Angle: 180°
- Weight: 0.0690 lbs
Features
- Manufactured from high strength seamless copper tubing
- Electro-tin plated for corrosion resistance
- Long barrel design for secure conductor insertion
- Standard square tang with two mounting holes for stable connection
- Color coded for easy compression die identification
- UL Listed and CSA Certified for safety and reliability
- Suitable for grounding and bonding applications
- Rated to 90°C operating temperature
