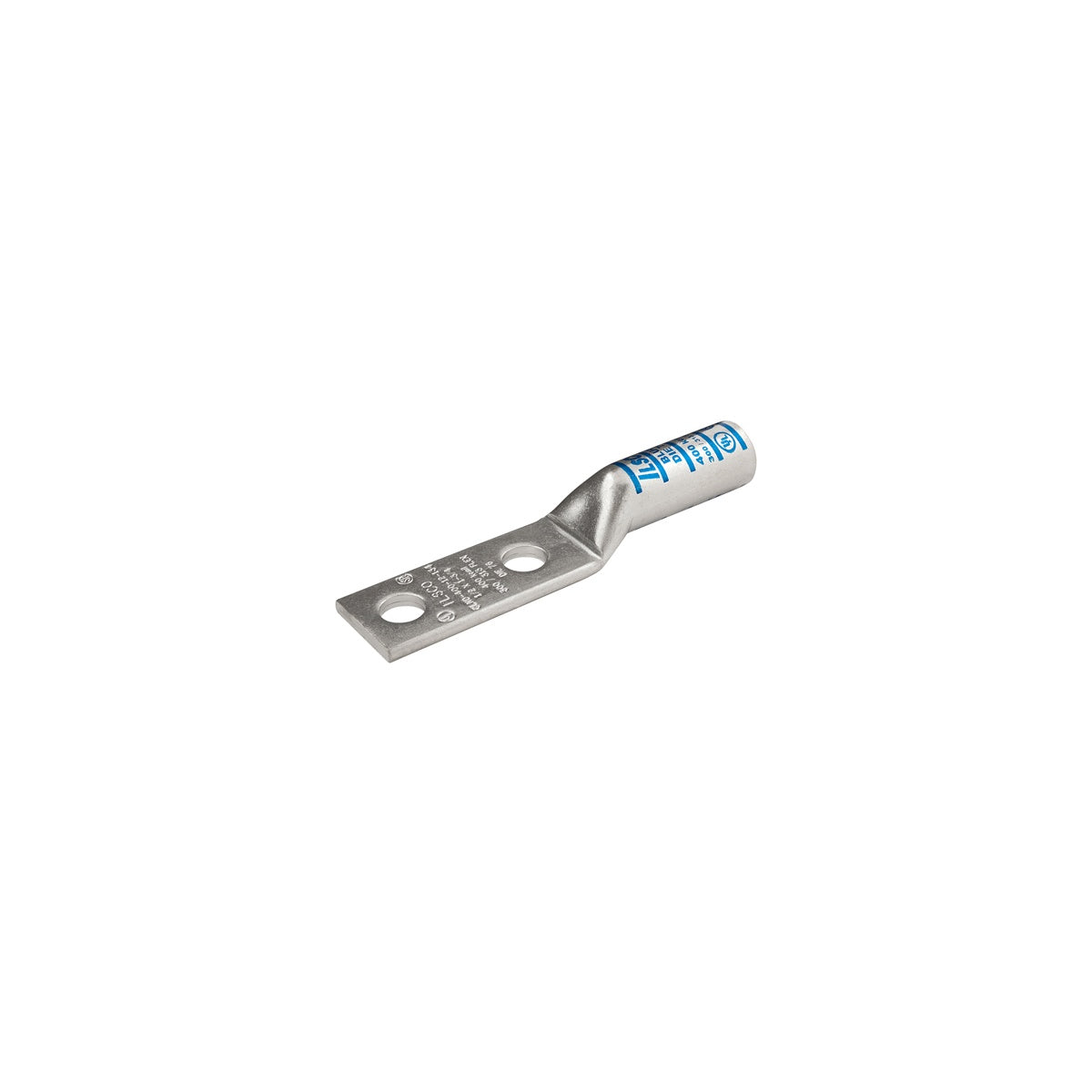

Surecrimp Copper Compression Lug, Conductor Size 1/0 – Copper Compression Lug

The Surecrimp Copper Compression Lug is designed for secure and reliable electrical connections in wire and cable installations. Manufactured by ILSCO, this lug is suitable for use by electrical distributors and switchgear suppliers requiring high-quality copper connectors for grounding and bonding applications. It features a long barrel design with a tin-plated copper body, providing excellent conductivity and corrosion resistance. The lug supports 1/0 AWG copper primary conductors and is UL 486A/B and UL 467 listed, making it compliant with industry standards for safety and performance.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part #: CLND-1/0-516-34
• Conductor Size: 1/0 AWG
• Material: Copper
• Plating: Electro-Tin Plated
• Mounting Holes: 2
• Mounting Bolt/Stud Size: 5/16 inch
• Mounting Hole Spacing: 0.75 inch
• Length: 3.543 inches
• Width: 0.738 inches
• Height: 0.515 inches
• Weight: 0.0970 lbs
• UL Listings: UL 486A/B, UL 467
• CSA Certified: C22.2 No. 65-03
• Rated Voltage: Suitable for circuits rated 35 kV or less
• Die Color Code: Pink (Die Index I-42)
• Connecting Angle: 180°
• Conductor Type: Copper Primary Conductor, flexible conductor range including 1 G, H, I, K, M, DLO

Features

• Manufactured from high strength seamless copper tubing for maximum conductivity
• Electro-Tin plating enhances corrosion resistance and durability
• Long barrel design facilitates easy conductor insertion and secure crimping
• Square tang end with two mounting holes for stable and reliable mechanical connection
• Color coded die index for easy identification and compatibility with compression tools
• UL and CSA certified ensuring compliance with electrical safety standards
• Designed for grounding and bonding applications in electrical distribution and lighting solutions
