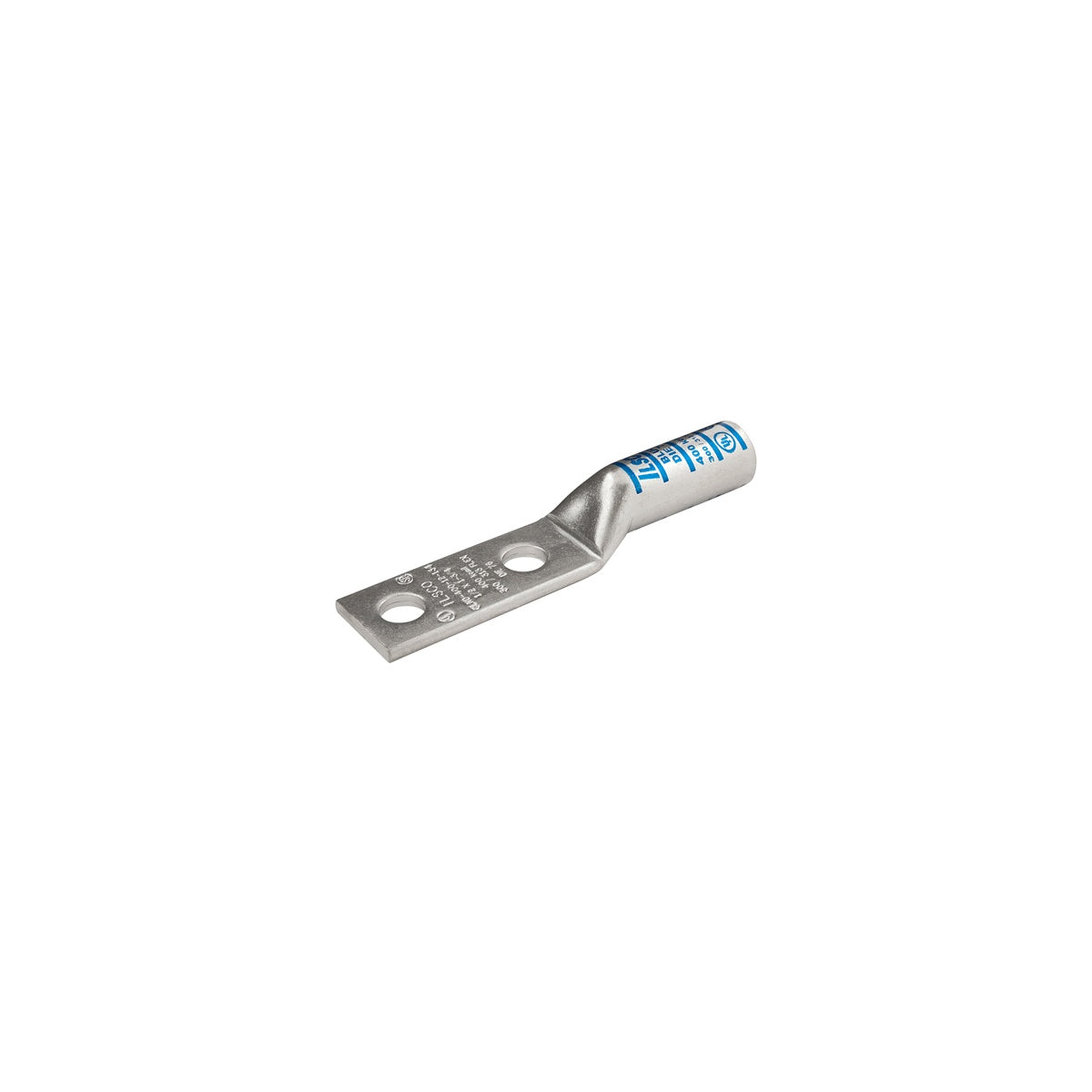

Surecrimp Copper Compression Lug, Conductor Size 1/0, 2 Holes, 5/16in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #251853
Part: #CLND-1/0-516-1
UPC: 783669636345
Surecrimp Copper Compression Lug, Conductor Size 1/0, 2 Holes, 5/16in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #251853
Part: #CLND-1/0-516-1
UPC: 783669636345
Description
Surecrimp Copper Compression Lug, Conductor Size 1/0 – Copper Compression Lug
The Surecrimp Copper Compression Lug by ILSCO is designed for reliable electrical connections in wire and cable applications. This product is suitable for use by electrical distributors and switchgear suppliers requiring high-quality copper compression lugs for grounding and bonding. It features a long barrel design with a tin-plated copper construction, ensuring excellent conductivity and corrosion resistance. The lug is UL 486A/B and UL 467 listed and CSA certified, making it compliant with industry safety standards for circuits rated up to 35 kV.
Specifications
- Conductor Size: 1/0 AWG
- Material: Copper
- Plating: Electro-Tin Plated
- Mounting Holes: 2
- Mounting Bolt/Stud Size: 5/16 in
- Mounting Hole Spacing: 1 in
- Length: 3.793 in
- Width: 0.7376 in
- Height: 0.515 in
- Weight: 0.1040 lbs
- UL Listings: UL 486A/B, UL 467
- CSA Certification: C22.2 No. 65-03
- Rated Voltage: 35 kV
- Connecting Angle: 180°
- Die Color Code: Pink
- Die Index: I-42
- Primary Conductor Type: Stranded Copper
- Square Tang End, No Sight Window
Features
- Manufactured from high-strength seamless copper tubing
- Electro-tin plated for corrosion resistance
- Chamfered entry for easy conductor insertion
- Color coded die index for proper compression die identification
- Suitable for circuits rated up to 35 kV with proper insulation
- UL Listed and CSA Certified for grounding and bonding applications
- Compatible with ILSCO and major competitor’s compression tools
- Rated to 90°C operating temperature
