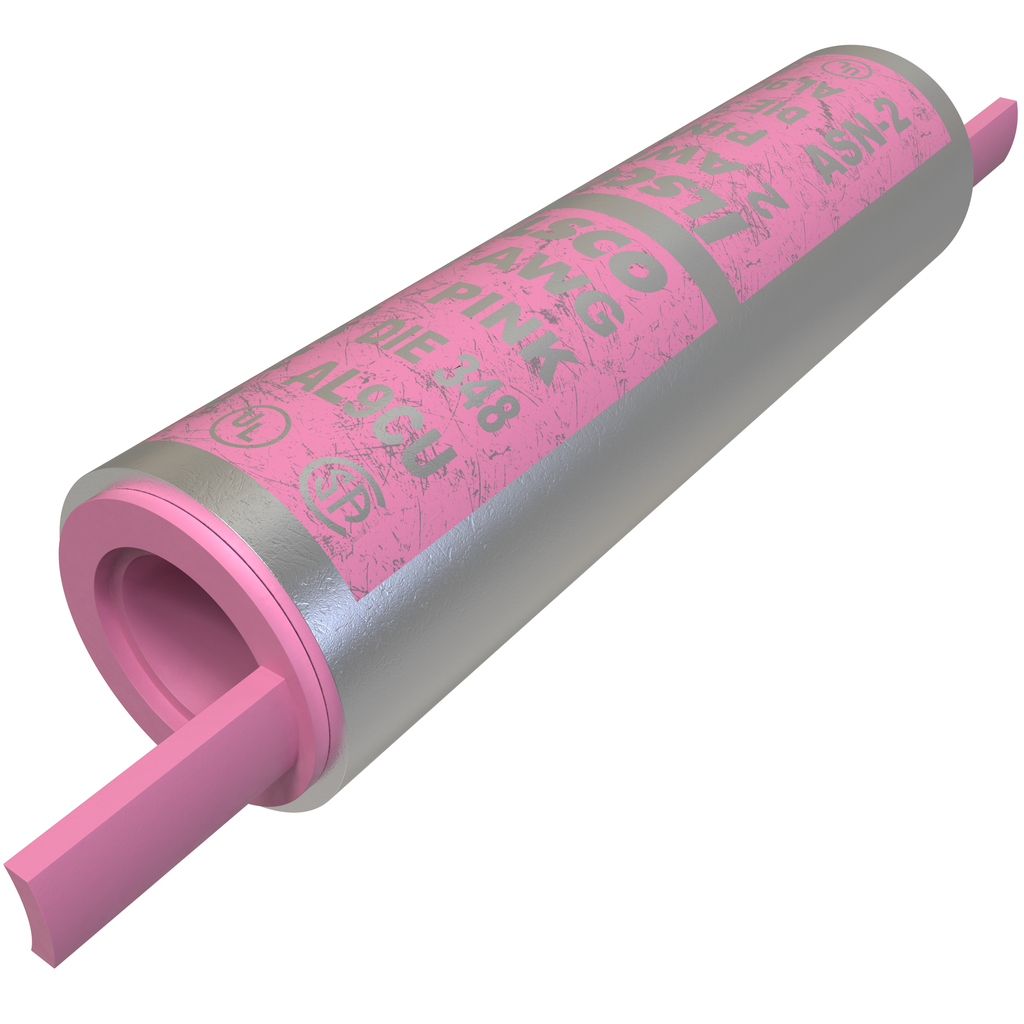

Surecrimp Aluminum Compression Sleeve, Conductor Size 2, Tin Plated, UL, CSA
SKU: #251245
Part: #ASN-2
UPC: 783669184747
Surecrimp Aluminum Compression Sleeve, Conductor Size 2, Tin Plated, UL, CSA
SKU: #251245
Part: #ASN-2
UPC: 783669184747
Total Price: $13.69 per each Sold in increments of 1 each
Next day delivery
Description
Surecrimp Aluminum Compression Sleeve, Conductor Size 2, Tin Plated, UL, CSA - Aluminum Compression Sleeve
The Surecrimp Aluminum Compression Sleeve is designed for secure compression connections in electrical wiring applications, suitable for stranded aluminum conductors size 2. This component is ideal for electrical distributors and switchgear suppliers requiring reliable wire and cable terminations. It is tin plated to enhance corrosion resistance and meets UL 486A/B and CSA C22.2 No. 65-03 standards, ensuring compliance with industry safety and performance requirements.
Specifications
- Manufacturer: ILSCO
- Manufacturer Part #: ASN-2
- Material: Aluminum
- Connector Finish: Tin Plated
- Conductor Material: Copper
- Conductor Type: Stranded
- Conductor Size: 2
- Number of Conductors: 1
- Connection Type: Compression
- Barrel Type: Standard
- Barrel Marking: Hard
- Inside Diameter: 0.307 inches
- Outside Diameter: 0.525 inches
- Length: 1.94 inches
- Width: 0.525 inches
- Height: 0.525 inches
- Color: Silver
- Color Coding: Pink
- Voltage Rating: 35 kV
- Temperature Rating: 90°C
- UL / CULUS Specification: UL 486A/B Listed
- UL File Number: E6207
- CSA File Number: LR-29601
- Carton Quantity: 20
- UPC: 783669184747
Features
- Contains DE-OX® anti-oxidant compound for improved conductivity and corrosion resistance
- Compression connection ensures a secure, reliable electrical joint
- Tin plating enhances corrosion resistance for long-term durability
- Color coded pink for easy conductor size identification
- Dual rated for UL and CSA compliance
- Designed for stranded aluminum conductor applications
- Standard barrel type with hard barrel marking for consistent crimp quality
