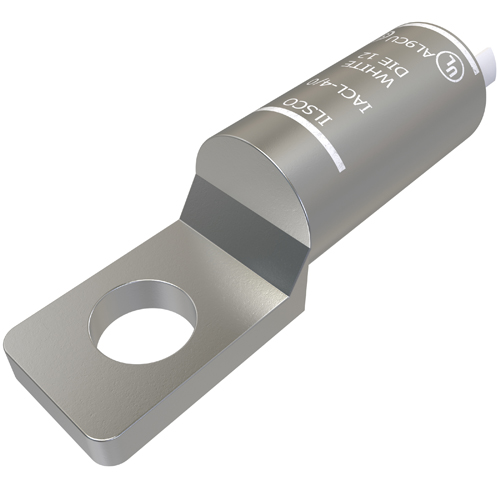

Specifications

• Height: 0.968 in | 24.5872 mm
• Length: 3.188 in | 80.9752 mm
• Weight: 0.12 lbs
• Width: 0.906 in | 23.0124 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Roll
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-12
• ILSCOs Die Index Number: 12
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 1/2

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 4/0 Str
• Conductor Range CU Stranded (Primary, run, main, line): 4/0 Str
• Expanded Conductor Range: 4/0 Str - 1 Str

Environment and Temperature

• Temperature Rating: 90°C

Color

• Color: Silver
• Color Code: White

Voltage

• Voltage Rating: 35 kV

Dimensions

• Barrel Length (IN): 1.75
• Barrel Length (mm): 44.45
• Dimension G (IN): 0.625
• Dimension G (mm): 15.875
• Height BX (IN): 2.25
• Height (mm): 24.5872
• Inside Diameter (IN): 0.547
• Inside Diameter (mm): 13.8938
• Length (mm): 80.9752
• Mounting Bolt/Stud Size (mm): 304.8
• Mounting Hole Diameter (IN): 0.562
• Mounting Hole Diameter (mm): 14.2748
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 0.906
• Outside Diameter (mm): 23.0124
• Tang Length (IN): 1.281
• Tang Length (mm): 32.5374
• Tang Thickness (IN): 0.25
• Tang Thickness (mm): 6.35
• Tang Width (IN): 0.906
• Tang Width (mm): 23.0124
• Weight BX (LB): 2.1
• Width BX (IN): 5
• Width (mm): 23.0124

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 10
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366992910
