Surecrimp Aluminum Compression Lug, Conductor Size 700/750, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250768
Part: #ALND-700/750-38-1
UPC: 783669690781
Surecrimp Aluminum Compression Lug, Conductor Size 700/750, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250768
Part: #ALND-700/750-38-1
UPC: 783669690781
Next day delivery
Description

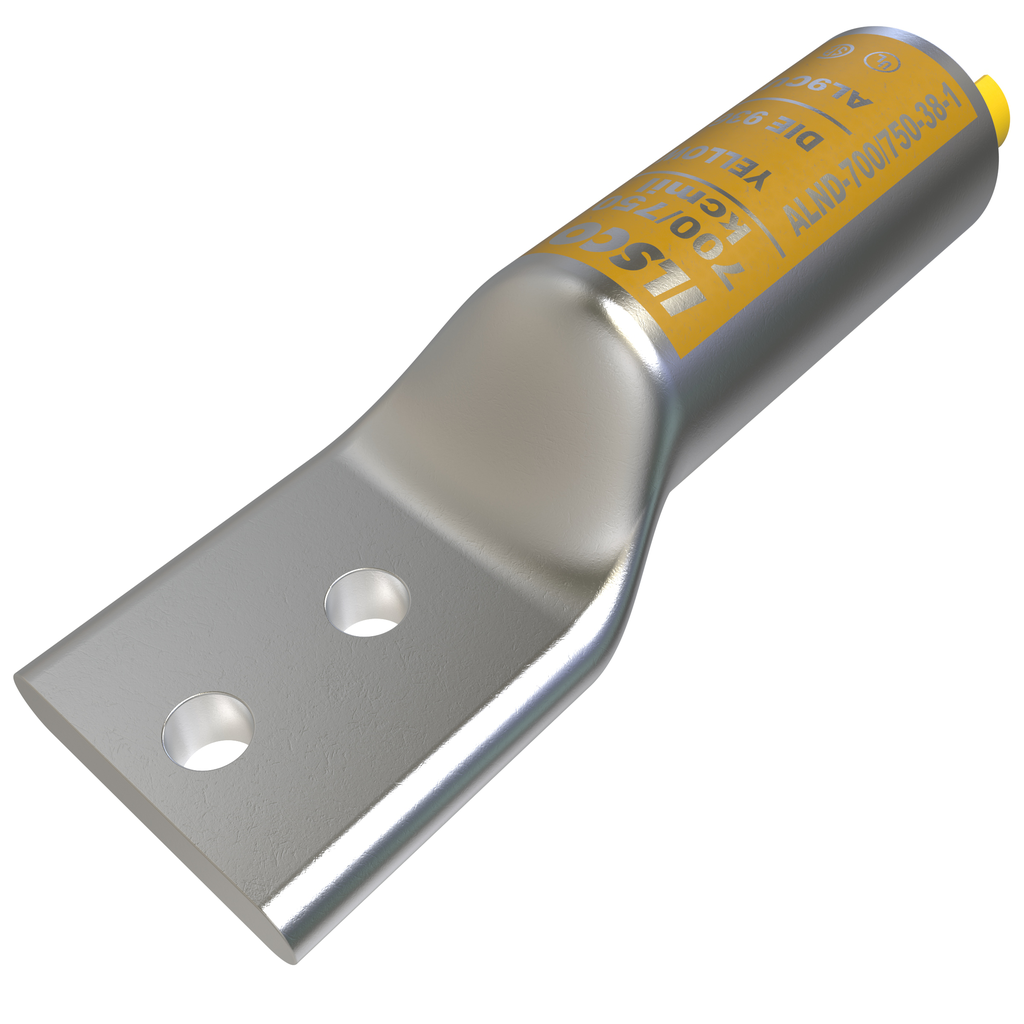

Surecrimp Aluminum Compression Lug, Conductor Size 700/750 – Aluminum Electrical Connector
The Surecrimp Aluminum Compression Lug is designed for reliable electrical connections in wire and cable applications. Manufactured by ILSCO, this compression lug is suitable for stranded aluminum conductors sized 700/750 kcmil. It features a long barrel design for enhanced conductor retention and is tin plated to provide corrosion resistance. This product is intended for use by electrical distributors and switchgear suppliers requiring high-quality aluminum connectors for power distribution and grounding.
Specifications
- Conductor Size: 700/750 kcmil
- Conductor Type: Stranded
- Conductor Material: Aluminum
- Connection Type: Compression
- Barrel Type: Long
- Barrel Length: 2.964 inches
- Number of Holes: 2
- Bolt Size: 3/8 inch
- Hole Spacing: 1 inch
- Mounting Hole Size: 0.406 inches
- Inside Diameter: 1.03 inches
- Outside Diameter: 1.46 inches
- Material: Aluminum
- Color: Silver
- Color Coding: Yellow
- Dimensions (L x W x H): 5.95 in x 2.048 in x 1.505 in
- Product Weight: 0.5740 lbs
- Direct Burial: No
- Manufacturer: ILSCO
- Manufacturer Part Number: ALND-700/750-38-1
- Carton Quantity: 1
Features
- Tin plated for enhanced corrosion resistance
- Long barrel design ensures secure conductor connection
- Color coded for easy identification (Yellow)
- UL and CSA certified for safety and compliance
- Designed for use with stranded aluminum conductors
