Surecrimp Aluminum Compression Lug, Conductor Size 600, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250742
Part: #ALND-600-38-1
UPC: 783669687767
Surecrimp Aluminum Compression Lug, Conductor Size 600, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
SKU: #250742
Part: #ALND-600-38-1
UPC: 783669687767
Description

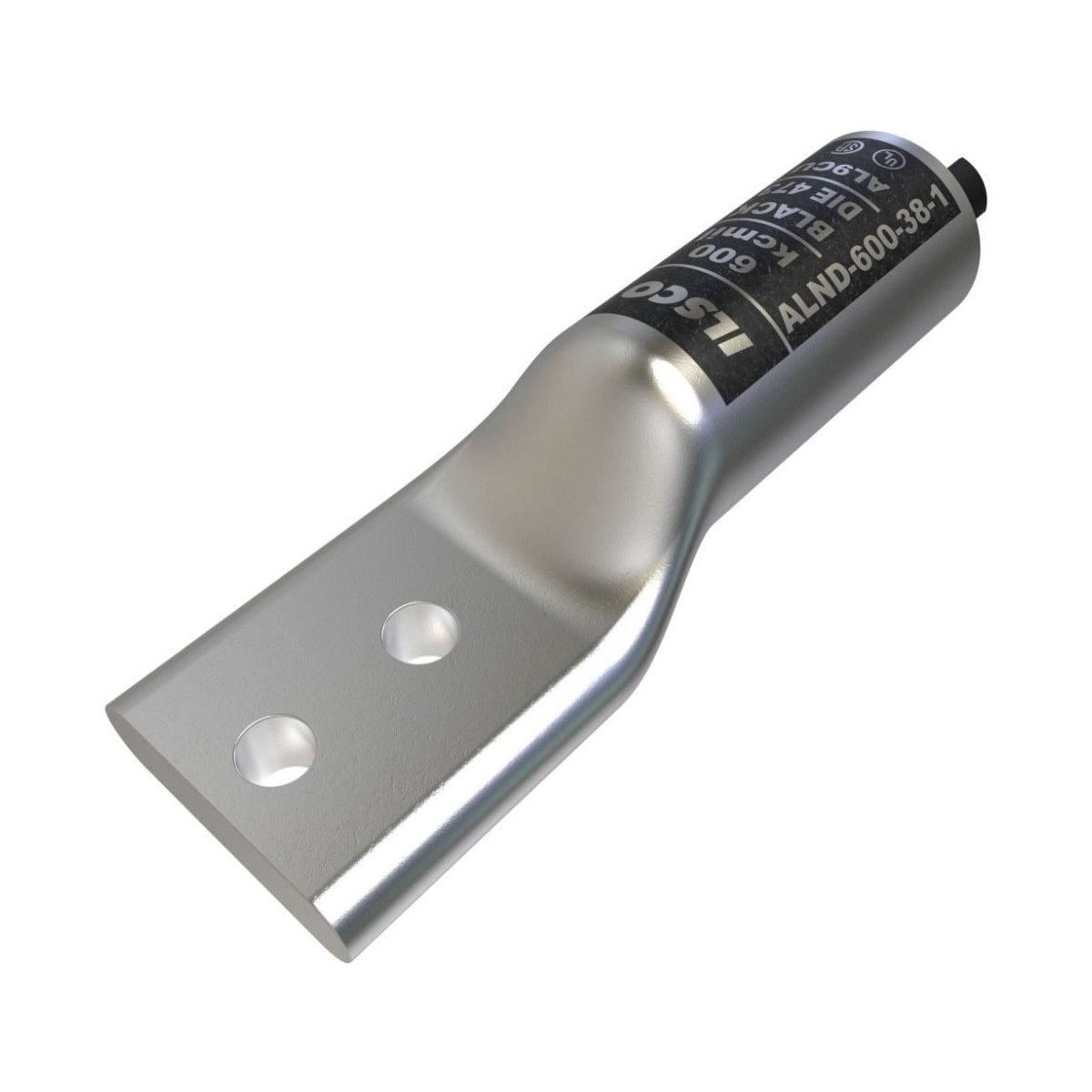

Surecrimp Aluminum Compression Lug, Conductor Size 600 – Electrical Wire Connector
The Surecrimp Aluminum Compression Lug, manufactured by ILSCO, is designed for secure and reliable connections in electrical distribution and wire and cable applications. This dual-rated lug is suitable for aluminum or copper conductors up to 600 kcmil and is UL 486A/B and CSA C22.2 No. 65-03 listed. It features a long barrel and tin-plated aluminum construction with a standard tang and two mounting holes, making it ideal for use by electrical distributors and switchgear suppliers requiring dependable lighting and power solutions.
Specifications
- Conductor Size: 600 kcmil
- Material: Aluminum, Tin Plated
- Mounting Holes: 2
- Mounting Bolt/Stud Size: 3/8 in
- Mounting Hole Spacing: 1 in
- Barrel: Long Barrel
- Connecting Angle: 180°
- Color Code: Black (Die Index 473)
- Primary Color: Silver
- UL Listing: UL 486A/B
- CSA Certification: C22.2 No. 65-03
- Rated Voltage: 35 kV
- Product Weight: 0.2440 lbs
- Dimensions (L x W x H): 5.975 in x 1.965 in x 1.49 in
Features
- Manufactured from high strength aluminum alloy
- Electro-tin plated for corrosion resistance
- Pre-filled with DE-OX® oxide inhibiting compound to prevent oxidation
- Square tang end with chamfered entry for easy conductor insertion
- Roll marked with color coded end cap for proper die identification
- Two bolt hole pattern ensures secure attachment and stabilization
- Dual rated for aluminum and copper conductors (AL9CU)
- Suitable for circuits rated up to 35 kV with proper insulation
- UL and CSA certified for safety and reliability
