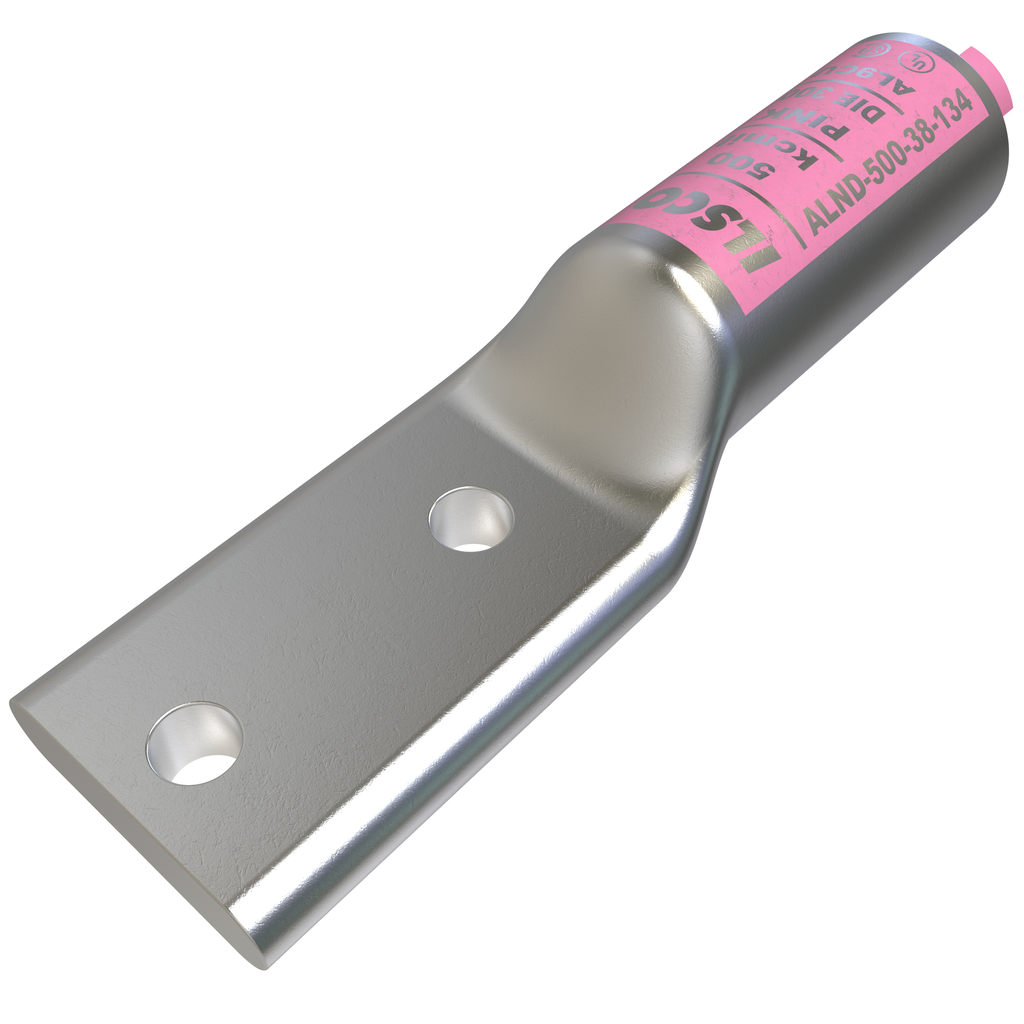

Surecrimp Aluminum Compression Lug – Electrical Distributor Wire and Cable Connector

The Surecrimp Aluminum Compression Lug, model ALND-500-38-134 by ILSCO, is a precision-engineered connector designed for secure compression connections in electrical distribution systems. This lug is suited for stranded aluminum conductors sized 500 kcmil and is commonly applied in lighting solutions, switchgear assemblies, and wire and cable installations. As a trusted component from a reputable switchgear supplier, it ensures reliable electrical continuity and mechanical strength in demanding industrial and commercial environments.

Specifications

• Conductor Size: 500 kcmil (Stranded Aluminum)
• Connection Type: Compression
• Material: Aluminum with Tin Plating
• Barrel Type: Long Barrel, Hard Marked
• Number of Holes: 2
• Bolt Size: 3/8 inch
• Hole Spacing: 1-3/4 inches (1.75 in)
• Mounting Hole Diameter: 0.406 inches
• Inside Diameter: 0.854 inches
• Outside Diameter: 1.315 inches
• Barrel Length: 2.565 inches
• Dimensions (L x W x H): 6.075 in x 1.802 in x 1.36 in
• Color: Silver with Pink Color Coding
• Voltage Rating: 35 kV
• Temperature Rating: 90°C
• UL Listed: UL 486A/B
• CSA Certified: CSA C22.2 No. 65-03
• Carton Quantity: 5
• Manufacturer Part #: ALND-500-38-134
• Direct Burial: No

Features

• DE-OX® corrosion inhibitor included for enhanced conductivity and longevity
• Tin plating provides corrosion resistance and improved electrical performance
• Long barrel design for secure conductor insertion and crimping
• Square tang end shape for stable mounting and mechanical strength
• No sight window, ensuring a solid and reliable compression connection
• Dual-rated for aluminum and copper stranded conductors
• Compliance with Prop65 ensuring safe use in regulated environments
• Suitable for use by electrical distributors, lighting solution providers, and switchgear suppliers
