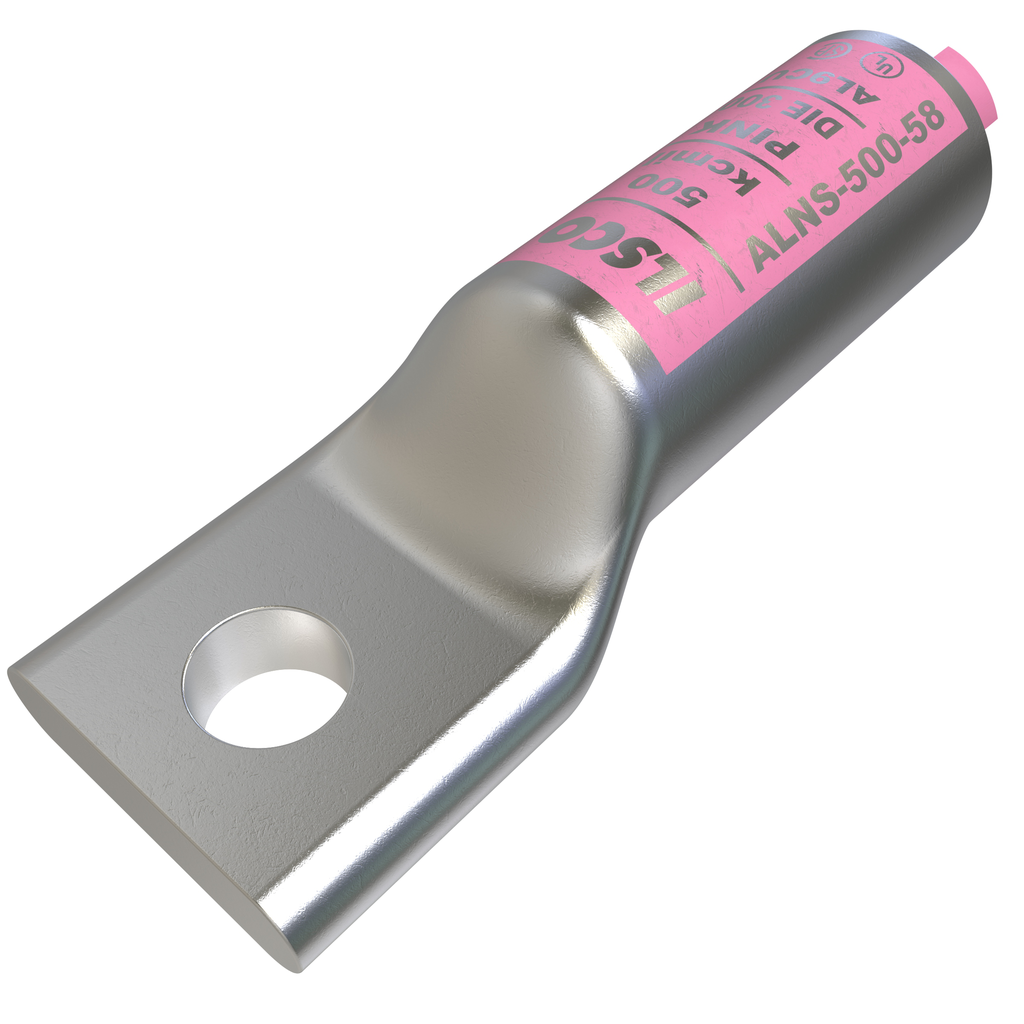

Specifications

• Height: 1.36 in | 34.544 mm
• Length: 4.93 in | 125.222 mm
• Weight: 0.343 lbs
• Width: 1.802 in | 45.7708 mm

Additional Technical Specifications

• Conductor Type: Stranded

Additional Class Attributes

• Barrel Marking: Hard
• Barrel Type: Long
• Connecting Angle: 180°
• Connection: Compression
• Contains DE-OX®: Yes
• Flared End: No
• ILSCOs Die Catalog Number: ILD-300
• ILSCOs Die Index Number: 300
• Mounting Hole Type: Thru
• Narrow Tang: No
• Number of Mounting Holes: 1
• Sight Window: No
• Slotted: No
• Tang End Shape: Square
• Undrilled: No

Material and Finish

• Conductor Material: Copper, Aluminum
• Connector Finish: Tin
• Material: Aluminum

Bolt and Screw Sizes

• Mounting Bolt/Stud Size: 5/8

Conductor Ranges

• Conductor Range AL Stranded (Primary, run, main, line): 500 kcmil
• Conductor Range CU Stranded (Primary, run, main, line): 500 kcmil
• Expanded Conductor Range: 500 kcmil - 4/0 Str

Environment and Temperature

• Temperature Rating: 90°C

Color

• Color: Silver
• Color Code: Pink

Voltage

• Voltage Rating: 35 kV

Dimensions

• Barrel Length (IN): 2.565
• Barrel Length (mm): 65.151
• Dimension G (IN): 0.671
• Dimension G (mm): 17.0434
• Height BX (IN): 2
• Height (mm): 34.544
• Inside Diameter (IN): 0.854
• Inside Diameter (mm): 21.6916
• Length (mm): 125.222
• Mounting Hole Diameter (IN): 0.656
• Mounting Hole Diameter (mm): 16.6624
• Mounting Hole Spacing (mm): 0
• Outside Diameter (IN): 1.315
• Outside Diameter (mm): 33.401
• Strip Length (mm): 66.7385
• Tang Length (IN): 1.45
• Tang Length (mm): 36.83
• Tang Thickness (IN): 0.461
• Tang Thickness (mm): 11.7094
• Tang Width (IN): 1.802
• Tang Width (mm): 45.7708
• Weight BX (LB): 1.176
• Width BX (IN): 6.188
• Width (mm): 45.7708

Testing Standards

• CSA File Number: LR-29601
• CSA Standard: C22.2 No. 65-03
• Prop65 Compliance: This product is in compliance with Prop65. It is not known to contain any chemicals associated with this regulation
• UL Control Number: 453G
• UL / CULUS Specification: UL 486A/B Listed
• UL File Number: E6207

General

• Bag Quantity: 1
• Carton Quantity Description: STD PACK QTY 3
• Direct Burial: No
• Dual Rated: Yes
• NEMA Code: S-588-3
• UPC Code: 78366968774

Downloads

Technical Drawing

Information Sheet
